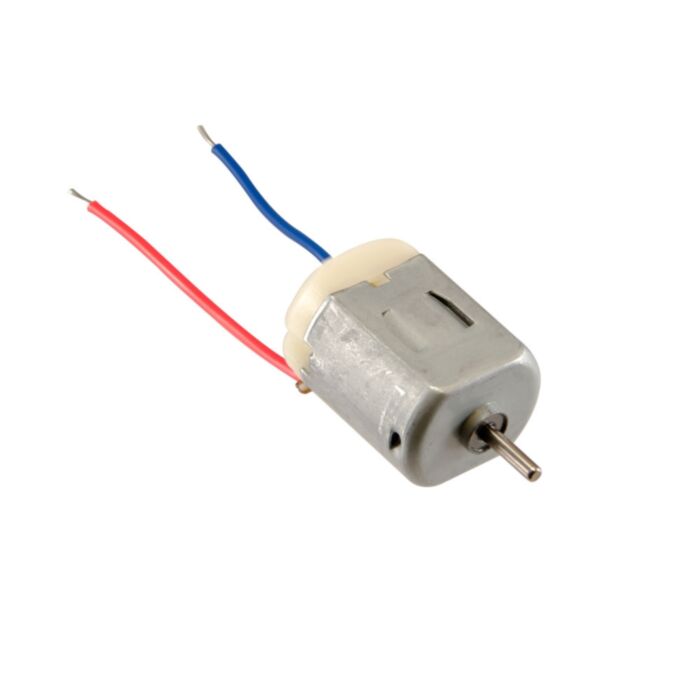

DC Toy / Hobby Motor - 130 Size

SKU: ADA711

$3.50 AUD, inc GST
$3.18 AUD, exc GST

More Views

DC Toy / Hobby Motor - 130 Size
3.5 AUD

SKU: ADA711

$3.50 AUD, inc GST
$3.18 AUD, exc GST
6 reviews 0 5 5
In stock, ships today if ordered before 2PM
Delivered by Fri, 25th of Aug
Shipping Offer

These are standard '130 size' DC hobby motors. They come with a wider operating range than most toy motors: from 4.5 to 9VDC instead of 1.5-4.5V. This range makes them perfect for controlling with an Adafruit Motor Shield, or with an Arduino where you are more likely to have 5 or 9V available than a high current 3V setting. They'll fit in most electronics that already have 130-size motors installed and there's two breadboard-friendly wires soldered on already for fast prototyping

Check the Technical Details tab for more detailed information!

Technical Details

  • Operating Temperature: -10°C ~ +60°C
  • Rated Voltage: 6.0VDC
  • Rated Load: 10 g*cm
  • No-load Current: 70 mA max
  • No-load Speed: 9100 ±1800 rpm
  • Loaded Current: 250 mA max
  • Loaded Speed: 4500 ±1500 rpm
  • Starting Torque: 20 g*cm
  • Starting Voltage: 2.0
  • Stall Current: 500mA max
  • Body Size: 27.5mm x 20mm x 15mm
  • Shaft Size: 8mm x 2mm diameter
  • Weight: 17.5 grams
