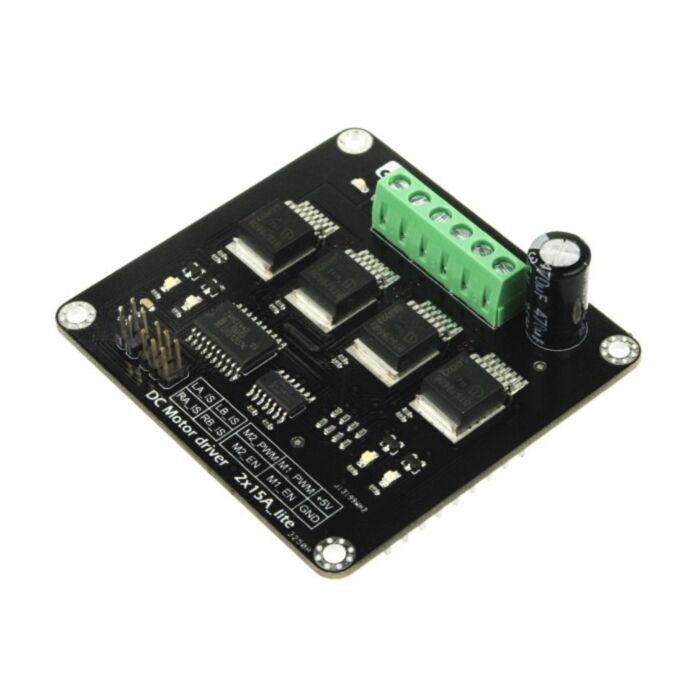

DC Motor Driver 2×15A - Lite

SKU: DRI0018

$74.13 AUD, inc GST
$67.39 AUD, exc GST

More Views

DC Motor Driver 2×15A - Lite
74.13 AUD

SKU: DRI0018

$74.13 AUD, inc GST
$67.39 AUD, exc GST

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 50 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 30th of Jul with Express Post within Australia.
Shipping Offer
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

This DC Motor Driver can be used in 4WD mobile robot platforms,Combat robots, smart car competition, to drive pumps, electric fans, conveyors, etc... This module uses 4 high-performance & high-current driver chips——BTS7960 with the function of current short, over temperature,over voltage protection. You can control 2 motors with only 4 digital IO at the same time. Dual [email protected] max output current,good responsiveness & braking performance. Four indicator leds are provided for easy and convenient debugging without motors. There are two AL Heat Sinks in the back of the module, to provide cooling for prolonged high-power working state. This DC Motor Driver module is directly compatible with Arduino.


Application
  • DC motor driver
  • 4WD high-power mobile robot platform
  • Combat robots
  • Pumps
  • Electric fans
  • Conveyors

Specification
  • Input Voltage:4.8-35V
  • Maximum output current:[email protected] per channel
  • Peak output current:[email protected] per channel
  • PWM capability:up to 25 kHz
  • Interfaces:4 digital IO(2 PWM output include)
  • Driving mode:Dual high-power H-bridge driver
  • Other specifications
    • Galvanic isolation to protect the microcontroller
    • Dual current detection diagnostic functions
    • Short circuit, overheating, over-voltage protection
  • Size:73x68x14mm

Documents
Documentation and Resources:
