CT433-HSWF30DR TMR Current Sensor Compact Carrier 0A to 30A, 3.3V

SKU: POLOLU-5317 Brand: Pololu

This is the compact version of a simple carrier for Allegro’s CT433-HSWF30DR TMR-based, electrically isolated current sensor that is optimized for high...

$15.40 AUD, inc GST

$14.00 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 02 and Apr 07

Quantity Discounts:

10+ $13.44 (exc GST)
25+ $13.02 (exc GST)

Pololu is offering these breakout boards with support from Allegro Microsystems as an easy way to use or evaluate their CT432/CT433 tunneling magnetoresistance (TMR), electrically isolated, high-bandwidth current sensors that are optimized for high dV/dt applications; Pololu therefore recommends careful reading of the applicable CT432 datasheet or CT433 datasheet before using this product. The following list details some of the sensors’ key features:

CT432/CT433 sensors use Allegro’s patented XtremeSense™ TMR (tunneling magnetoresistance) technology for high accuracy, high bandwidth, electrically isolated current measurements.
Sensor can be inserted anywhere along the current path and be used in applications that require electrical isolation.
1 mO primary current path resistance in the sensor IC, and the PCB is made with 2-layer (compact versions under 50A), 4-layer (compact versions 50A and up), or 6-layer (large versions) 2-oz copper, so very little power is lost in the module.
TMR sensing rejects common-mode fields, so the orientation of the sensor relative to uniform external magnetic fields (e.g. the Earth’s magnetic field) has less effect on the measurement.
Optimized for high dV/dt applications, allowing the sensor to be used in switching applications.
High-bandwidth 1 MHz analog output voltage proportional to AC or DC currents.
Typical 300 ns response time.
Output is not ratiometric (i.e. the zero point and sensitivity are independent of the actual supply voltage), which provides immunity from noisy supplies.
Optional overcurrent fault output indicates when the current magnitude exceeds 110% of the maximum linear sensing range.
Operating temperature range of -40°C to 125°C.
Carrier boards, available in compact and large sizes, offer a variety of ways to insert it into the current path along with 0.1"-pitch (breadboard-compatible) power, ground, and output pins.

The connection points are labeled on the silkscreen, which is on the bottom side of the compact versions and on both sides of the large versions. The bottom silkscreen also shows the direction that is interpreted as positive current flow via the +i arrow.

The following table lists the available CT432/CT433 carrier options:

Pololu Item #	Part Prefix	Supply Voltage (V)	Part Suffix	Current Range	Sensitivity (mV/A)	Zero Point	Size	PCB Details
#5310	CT433	3.0 to 3.6 (3.3 nominal)	20MR	±20 A	50	1.65 V	0.8"×1.1"	2 layers, 2-oz copper
#5311	30MR	±30 A	33.3
#5313	50MR	±50 A	20
#5315	70MR	±70 A	14.3
#5317	30DR	0-30 A	66.7
#5318	50DR	0-50 A	40
#5319	65DR	0-65 A	30.8
#5300	CT432	4.75 to 5.5 (5 nominal)	20MR	±20 A	100	2.5 V	2 layers, 2-oz copper
#5301	30MR	±30 A	66.7
#5302	50MR	±50 A	40
#5303	65MR	±65 A	30.8
#5306	50DR	0-50 A	80
#5308	70DR	0-70 A	57.1

Details for item #5317

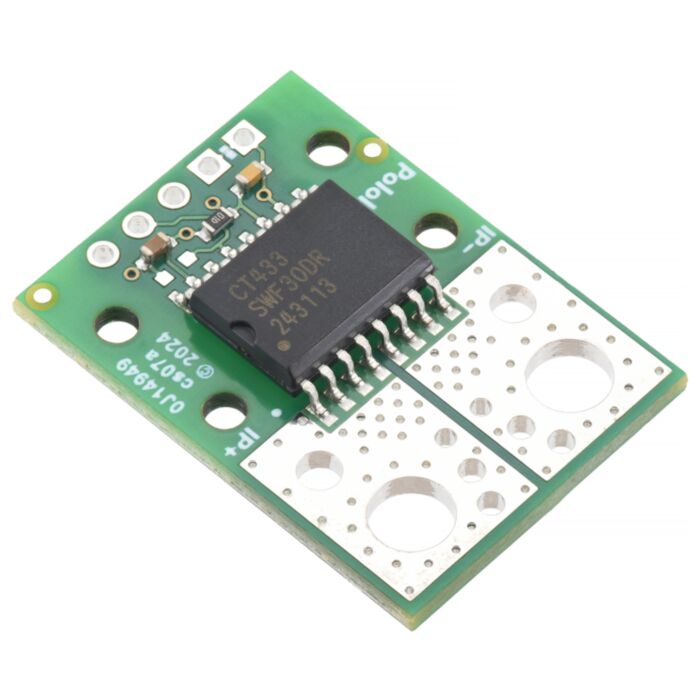

This compact carrier features the CT433-HSWF30DR, which is intended for nominal 3.3 V operation and is designed for unidirectional input current from 0 A to 30 A. This version can be visually distinguished from the other versions by the part number printed on the sensor IC.

This sensor has five required connections: the input current (IP+ and IP-), logic power (VCC and GND), and the sensor output (VOUT).

The sensor requires a supply voltage of 3.0 V to 3.6 V to be connected across the VCC and GND pads, which are labeled on the bottom silkscreen. The sensor outputs an analog voltage on VOUT that has a zero point at 0.65 V and increases by 66.7 mV per amp of input current:

V_OUT = 0.65 V + 0.0667 V/A · I_P

The output is not ratiometric, so the zero point and sensitivity are independent of the actual supply voltage.

The optional FLT pin is normally at VCC and is pulled low when the IP current magnitude exceeds 110% of the maximum sensing range. This pin only asserts while the fault condition is present (it is not latched).

Warning: This product is intended for use below 30 V. Working with higher voltages can be extremely dangerous and should only be attempted by qualified individuals with appropriate equipment and experience.

Dimensions

Size:	0.8" × 1.1"
Weight:	2.3 g

General specifications

Typical operating voltage:	3.3 V
Current sense:	66.7 mV/A
Minimum logic voltage:	3.0 V
Maximum logic voltage:	3.6 V
Supply current:	6 mA
Current range:	0A to 30A (unidirectional 30A), 3.3V
Current sensor:	Allegro CT433-HSWF30DR

Identifying markings

PCB dev codes:	cs07a
Other PCB markings:	0J14949

Notes:

1: Typical.

File downloads

Dimension diagrams of the CT432/CT433 Current Sensor Carriers (436k pdf)
3D model of the CT432/CT433 Current Sensor Compact Carriers (4MB step)
Drill guide for the CT432/CT433 Current Sensor Compact Carriers (20k dxf)

This DXF drawing shows the locations of all of the board’s holes.
