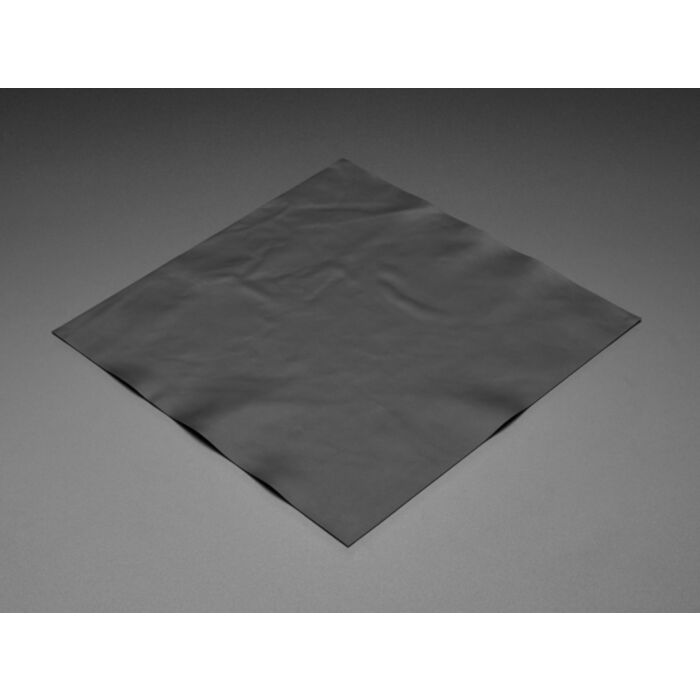

Conductive Rubber Sheet / Stretch Sensor- 200mm x 200mm x 0.5mm

SKU: ADA5464 Brand: Adafruit

This rubber sheet is made of the same carbon-black impregnated rubber material that our conductive rubber cord uses. Traditionally it would be used for...

$14.05 AUD, inc GST

$12.77 AUD, exc GST

Available with a lead time
Expect dispatch between May 09 and May 13

Quantity Discounts:

10-25 $12.26 (exc GST)
25+ $11.88 (exc GST)

This rubber sheet is made of the same carbon-black impregnated rubber material that Adafruit's conductive rubber cord uses. Traditionally it would be used for EMF shielding, or conductive gaskets - but it's very fun to play with and we think it makes for an interesting stretch sensor or maybe a conductive material that is soft and conforming.

In a 'relaxed' state, the bulk sheet resistivity is about 50 ohm*mm. As you pull on it, the resistance increases (the particles get further apart). You can stretch the rubber about 50-70% longer than the resting length, so a 6" piece shouldn't be stretched more than 10". Once the force is released, the rubber will shrink back, although it's not very 'fast' and it takes a minute or two to revert to its original length. It's not a true linear sensor, and the resistance may vary from batch to batch, so they consider it a way to measure stretching motion but isn't really precise.This stuff is fun, so they give you a 200mm by 200mm square with 0.5mm thickness. You can easily cut this material with scissors or a die. You can use it as a conductor or add a 100 ohm resistor as a divider, then use Adafruit's handy Thermistor tutorial to measure the analog voltage and convert that back to resistance.

Technical Details

Product Dimensions: 200.0mm x 200.0mm x 0.5mm / 7.9" x 7.9" x 0.0"

Product Weight: 22.6g / 0.8oz

This product is listed in:

Sensors>Stretch
