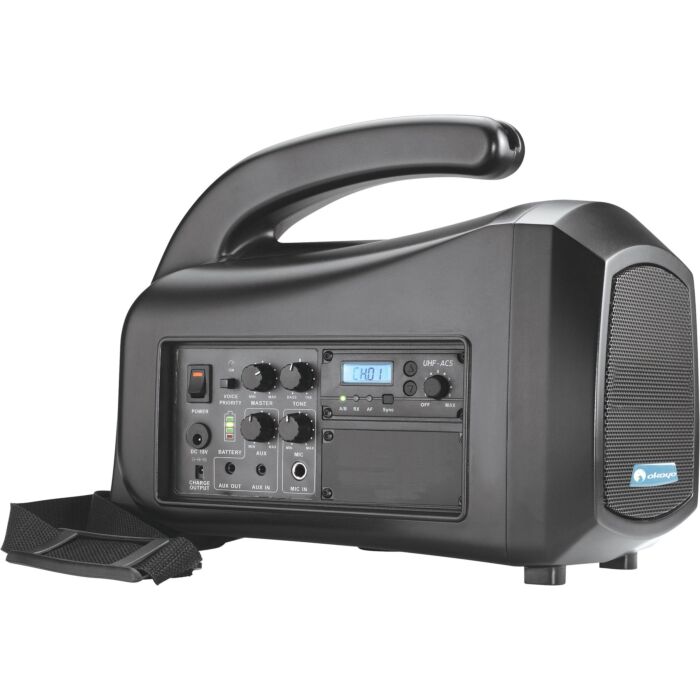

Compact 40 Watt Portable PA System with 640-664MHz UHF Receiver

SKU: AC7312

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

A handheld or shoulder worn PA system fitted with a high power 40W internal amplifier to help you get your message across whilst on the go! Great for sporting events, wedding and civil celebrants, sales spruikers. Address crowds up to 150 people without the need to shout. The lightweight and easy to carry design includes provision to store the C 7315 handheld mic internally, which also charges the mic at the same time! The inbuilt battery provides several hours use away from mains power and can also be powered by the mains adaptor provided. All models include the same amplifier, power supply, battery and charging circuit. A handy LED bar graph displays the battery charge status. The amplifier includes a 6.35mm mic input, plus a 3.5mm auxiliary input with individual volume controls. Tone and master volumes are also provided. 153W x 246H x 333Lmm.

C 7312 UHF Model: Includes a 96 channel UHF mic receiver for roaming applications. Provision for one extra module.

Features

Compact design, weighs only 3.6kg
Includes shoulder strap
Sets up in seconds
Tripod mountable (see C 7322)
Inbuilt battery
High performance 40W RMS amp
UHF mic receiver (640-663MHz)
Includes plugpack for mains operation.

Specifications

Output power: 40W RMS
Speaker: 5" neodymium
Audio input: 6.35mm Mic, 3.5mm Aux in (stereo)
Audio output: 3.5mm Aux out (stereo)
Oscillation type: PLL synthesised control (OSC)
Carrier frequency range: 640 - 865MHz
Receiver module: C 7317 (diversity) x 2 96 switchable channels with LCD display
Operating range: 50-70m (open field)
Power requirements: 240V a.c./ 20V d.c. 3.2A power adaptor
Battery: 12V 2.9Ah lead acid
Operating time: ≈4-5 hours
Charging time: ≈3-4 hours
Weight: 3.6kg (including battery)
Dimensions: 333 x 154 x 246mm

Downloads

Instructions
