Power Dock 2 for Onion Omega

SKU: CE04914 Brand: Onion Omega

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

The Power Dock 2 frees you from wires and allows you to take all of your Omega projects on the go! Onion strongly recommends that customers get a Dock for their Omegas2 to get the best experience and most performance, functionality, and stability from your device.

Mobility

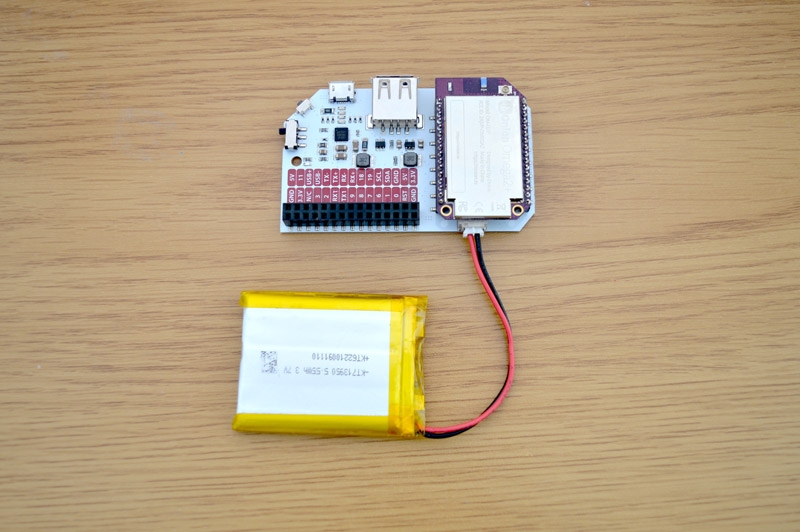

Use any 3.7V LiPo battery (not included) to provide power to the Omega and all connected Expansions and USB devices. Display the battery’s charge level on four battery indicator LEDs as well as read it in the OS with a single command! When your battery is out of juice, plug a short Micro USB cable (8″ or less is recommended) and the Power Dock will charge the battery.

Convenience

No battery? No problem! Without a battery connected, the Power Dock behaves almost like the Expansion Dock. You can provide power with a short Micro USB cable and the regulator circuits on the Dock will ensure the Omega always receives the stable 3.3V it needs to operate optimally. An on-board ADC allows the Omega to measure the voltage level of an attached LiPo battery, giving an idea of how much juice is left in the battery!

Note that the Power Dock does not have include USB-to-Serial chip, so you will need to use SSH or the Console over WiFi to connect to your Omega. See the links below on how to do this.

Functionality

The Dock exposes several of the Omega’s features to the user:

The Omega’s GPIOs are exposed on the Expansion Header. Use the header to plug in Onion Expansions or connect to external circuits
Connect USB devices directly to your Omega
Control the RGB LED on the Dock using the Omega’s GPIOs
Press the Reset Button to reboot your Omega, hold it for 10 seconds to perform a factory restore
Turn your Omega on and off with the Power Switch

Modular

Compatible with all Omega Expansions. Extend the functionality of your Omega by connecting one of our plug and play Expansions.

NOTE: Battery Not Included

Technical Details

1x JST-PH LiPo Battery Connector
1x ADC to measure LiPo battery voltage level
1x Micro USB Port – Power and Battery Charging
1x USB-A Port – Connect USB devices to the Omega
1x Reset Button
1x Power Switch
30-pin Expansion Header
