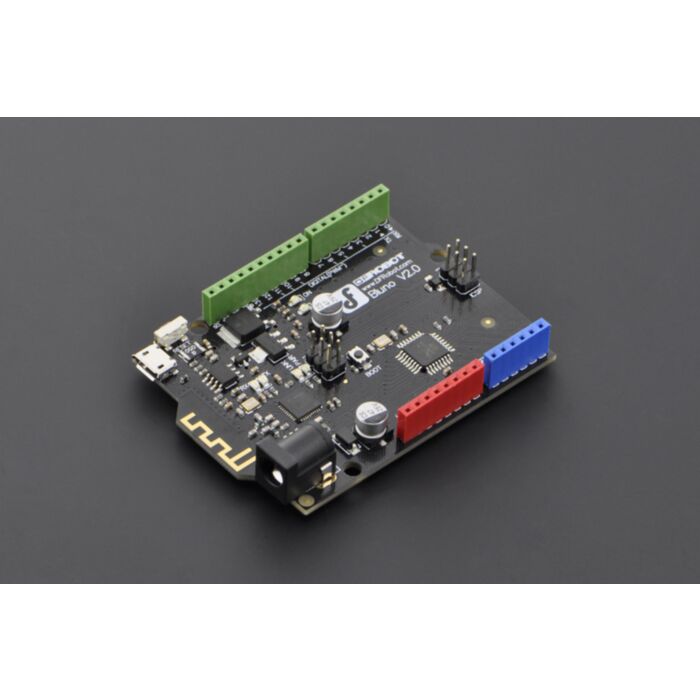

Bluno - A Bluetooth 4.0 Micro-controller Compatible with Arduino Uno

SKU: DFR0267 Brand: DFRobot

It's time to get Bluetooth 4.0 into your project and sync it up with your phone! For aficionados of smart devices and wearables with this new tech (BT4.0 BLE), now you can go further than hacking things apart to start prototyping with your Arduino. Bluno is first of its kind in intergrating BT 4.0(BLE) module into Arduino Uno, making it an ideal prototyping platform for both software and hardware developers to go BLE. You will be able to develop your own smart bracelet , smart pedometer and more. Through the low-power Bluetooth 4.0 technology, real-time low energy communication can be made really easy.

$42.10 AUD, inc GST

$38.27 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 23rd of Apr

Quantity Discounts:

10-25 $37.13 (exc GST)
25+ $36.36 (exc GST)

Bluno integrates a TI CC2540 BT 4.0 chip with the Arduino UNO development board. It allows wireless programming via BLE, supports Bluetooth HID, AT command to config BLE and you can upgrade BLE firmware easily. Bluno is also compatible with all Arduino Uno pins which means any project made with Uno can directly go wireless!

What's more, we also developed an App for Bluno (both Android and IOS) and they are completely opensource. You can modify and develop your own BLE-hardware platform. Below is a quick demo video covering some of the major features of Bluno with the help of an Accessory Shield for Bluno, which will also be available very soon.

In short, you can use Bluno with any Bluetooth 4.0 compatible devices and enjoy features such as wireless transmission, master and slave settings, wireless programming and even establishing a Bluetooth HID connection with the PC between devices.

Note: For the demo application and arduino code, we integrated DFRobot wireless libraries for the beginners. The idea is supplying a simple way for you to use wireless modules without learning the wireless comunication protocol. However, for the developer, we recommend to custom or choose the protocol according to the application.

Specification

On-board BLE chip: TI CC2540
Wireless Programming via BLE
Support Bluetooth HID
Support AT command to config the BLE
Transparent communication through Serial
Upgrade BLE firmware easily
DC Supply: USB Powered or External 7V~12V DC
Microcontroller: Atmega328
Bootloader: Arduino Uno ( disconnect any BLE device before uploading a new sketch )
Compatible with the Arduino Uno pin mapping
Size: 60mm * 53mm
Weight: 30g

Documents

User Review

Embedded Computing Review by Rei Vilo

Custom Application from User

Bluno iOS Terminal (developed by Air Vision)

Parts List

Blunox1
