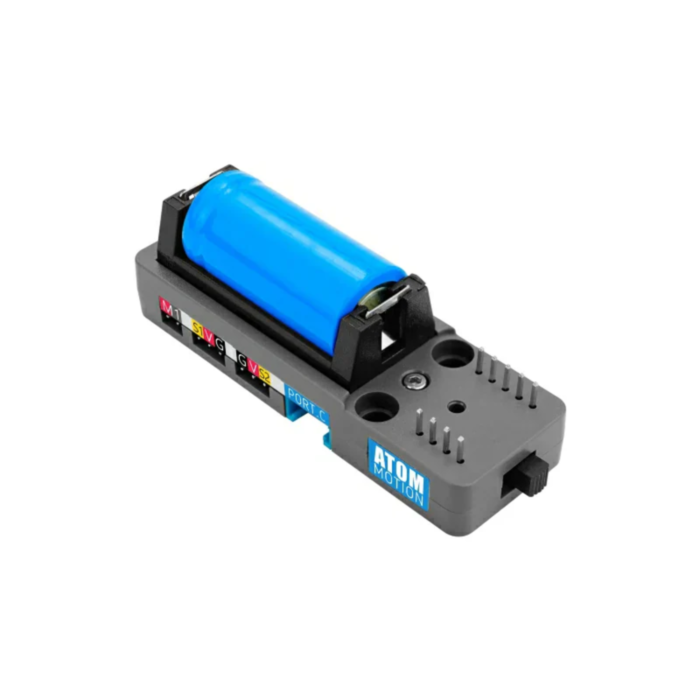

ATOMIC Motion Base - Servo & DC Motor Controller

SKU: CE010055 Brand: M5Stack

Explore the ATOMIC Motion Base, a versatile STM32-powered controller featuring 4 servo channels and 2 DC motor interfaces, designed for ATOM series with built-in 700mAh battery for portable robotics and motor control projects.

$24.40 AUD, inc GST

$22.18 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 13

Quantity Discounts:

10-25 $21.52 (exc GST)
25+ $21.07 (exc GST)

The ATOMIC Motion Base revolutionizes motor control projects by combining versatile servo and DC motor interfaces with an integrated power solution. This STM32-powered controller features 4 servo channels and 2 DC motor interfaces, making it ideal for developing robotic arms, automated systems, and educational projects.

Key Features

Integrated STM32 control chip with I2C communication protocol
4 independent servo channels for precise motion control
2 DC motor interfaces with PWM capability
Built-in 700mAh 16340 lithium battery for portable operation
Dual HY2.0-4P expansion interfaces for sensor integration
Magnetic back design for easy mounting
Independent power switch for efficient power management
Peak current capabilities: 3A full load steering, 1A per motor channel, 0.4A per servo channel

How to Use

Installation is straightforward - the ATOMIC Motion Base connects directly to compatible ATOM series controllers through the built-in interface. For enhanced functionality, connect servos to any of the 4 dedicated channels and DC motors to the motor interfaces using the 2.54mm pitch connectors. Additional sensors can be integrated through the HY2.0-4P expansion ports.

For projects requiring precise motion control, consider pairing with the DFRobot Gravity I2C BMI160 6-Axis Motion Sensor for enhanced positioning and orientation detection. For high-power applications, the Mean Well 156W 24VDC Switchmode Power Supply can provide a stable power source when extended operation is required.

What's in the Box

1x ATOMIC Motion Base unit with integrated battery

Compatibility

Compatible Devices	Connection Type
AtomS3	Direct Mount
AtomS3 Lite	Direct Mount
Atom Lite	Direct Mount
Atom Matrix	Direct Mount

Additional Resources

Complete Documentation

About M5Stack

M5Stack specialises in developing modular electronic solutions that emphasize functionality and ease of use. Their ATOM series represents their commitment to creating compact, versatile controllers that can be easily integrated into various projects and educational environments. The company's focus on standardized interfaces and comprehensive documentation makes their products particularly suitable for both professional development and educational applications.
