Adafruit LTC4311 I2C Extender / Active Terminator - STEMMA QT / Qwiic

Rating:
100% of 100
SKU: ADA4756 Brand: Adafruit
I2C stands for Inter-Integrated-Circuit communications, its meant for short distances on a PCB or subassembly. But, hey, Adafruit are engineers and Adafruit like to push the limits of technology, right? So why not try to have I2C run over a meter long cable, or even longer?
$20.45 AUD, inc GST
$18.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

  • 10+ $17.85 (exc GST)
  • 25+ $17.29 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

I2C stands for Inter-Integrated-Circuit communications, its meant for short distances on a PCB or subassembly. But, hey, Adafruit are engineers and Adafruit like to push the limits of technology, right? So why not try to have I2C run over a meter long cable, or even longer? Well, if you try to do that you'll quickly find that the length of the cable adds capacitance and resistance that slows down the open-drain pullups used in I2C, making it hard to use 100KHz+ clock speeds. You could try slowing down your I2C clock to 1 KHz...or you could use an Adafruit LTC4311 active terminator like this one!

Using this board is easy: connect it to your I2C bus at the beginning of the chain (if you don't have a massively long cable, you can also try at the end of the chain). When the chip is powered and enabled, it will watch the SCL and SDA lines. When it sees them being pulled up through the I2C resistors, it will activate and dump in some current to give it a boost thru to the top power rail.

You can now achieve much faster data rates without having to noodle with resistors, and over long cables. Adafruit ran a 400 KHz OLED over 3 meters of phone wire with ease. With a 100KHz signal, Adafruit even ran a BME680 over 100 feet of Ethernet (about 3000pF round trip!), and had an OLED display the sensor details.

Runs with any bus voltage, from 1.6V to 5.5V and up to 400 KHz SCL speed, with cables up to 4000pF. No special firmware, software, or configuration required. Simply plug the power, ground, SCL and SDA connectors into your bus and watch as your rise times magically turn sawtooths into square waves.

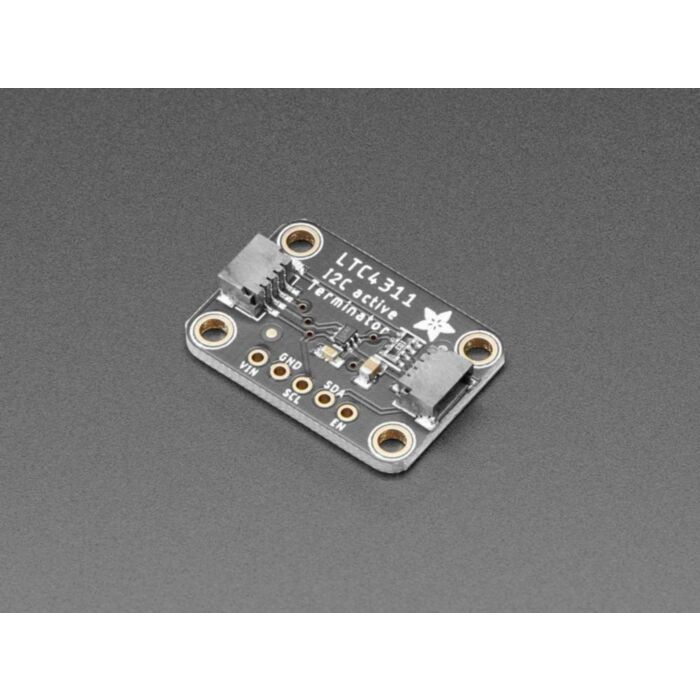

To get you going fast, Adafruit spun up a custom made PCB in the STEMMA QT form factor, making it easy to interface with. The STEMMA QT connectors on either side are compatible with the SparkFun Qwiic I2C connectors. This allows you to make solderless connections between your development board and the LTC4311 or to chain it with a wide range of other sensors and accessories using a compatible cable.

Specifications

  • Improves I2C Bus Rise Time Transition
  • Ensures Data Integrity with Multiple Devices on the I2C Bus.
  • Wide Supply Voltage Range: 1.6V to 5.5V
  • Improves Low State Noise Margin
  • Up to 400kHz Operation
  • Auto Detect Low Power Standby Mode
  • Low (<5μA) Supply Current Shutdown
  • Does Not Load Bus When Disabled or Powered Down
  • Strong Slew Limited Pull-up Current
  • ±8kV Human Body Model ESD Ruggedness
