Adafruit 128x64 OLED Bonnet for Raspberry Pi

Rating:

100% of 100

SKU: ADA3531 Brand: Adafruit

If you'd like a compact display, with buttons and a joystick - Adafruit have got what you're looking for. The Adafruit 128x64 OLED Bonnet for Raspberry Pi is the big sister...

$43.80 AUD, inc GST

$39.82 AUD, exc GST

Quantity Discounts:

10-25 $38.23 (exc GST)
25+ $37.03 (exc GST)

Out of Stock

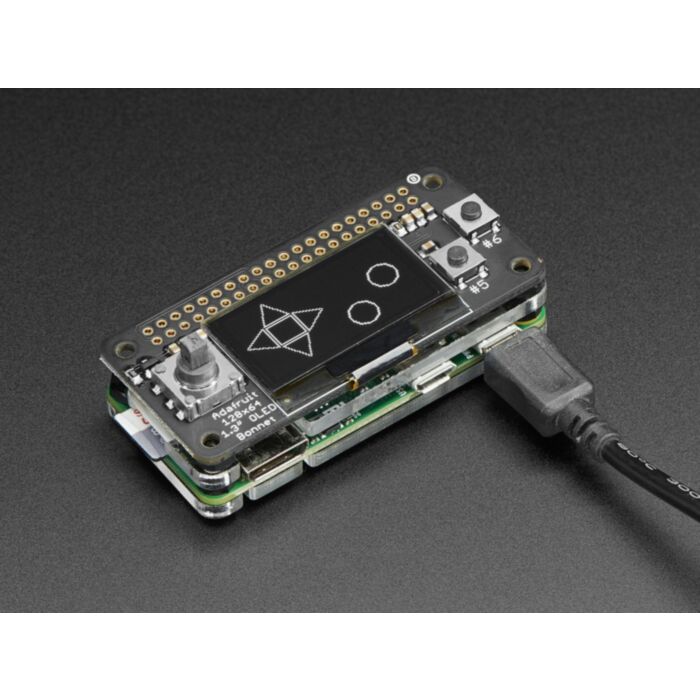

If you'd like a compact display, with buttons and a joystick - Adafruit have got what you're looking for. The Adafruit 128x64 OLED Bonnet for Raspberry Pi is the big sister to Adafruit's mini PiOLED add-on. This version has 128x64 pixels (instead of 128x32) and a much larger screen besides. With the OLED display in the center, Adafruit had some space on either side so they added a 5-way joystick and two pushbuttons. Great for when you want to have a control interface for your project.

These displays are small, only about 1.3" diagonal, but very readable due to the high contrast of an OLED display. This screen is made of 128x64 individual white OLED pixels and because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast; Adafruit really like this miniature display for its crispness!

Please note that this display is too small to act as a primary display for the Pi (e.g. it can't act like or display what would normally be on the HDMI screen). Instead, Adafruit recommend using pygame for drawing or writing text.

Using the display and controls in python is very easy, Adafruit have a library ready-to-go for the SSD1306 OLED chipset and the joystick/buttons are connected to GPIO pins on the Pi. Adafruit's example code allows you to draw images, text, whatever you like, using the Python imaging library. We also have example code for using the joystick/buttons/OLED together. Adafruit's tests showed 15 FPS update rates so you can do animations or simple video.

Comes completely pre-assembled and tested so you don't need to do anything but plug it in and install Adafruit's Python code! Works with any Raspberry Pi computer, including the original Pi 1, B+, Pi 2, Pi 3 and Pi Zero.

Instructions, software, downloads and more in the Learning Guide!

Technical Details

Product Dimensions: 65.3mm x 30.7mm x 15.5mm / 2.6" x 1.2" x 0.6"

Product Weight: 11.4g / 0.4oz
