Adafruit 1.3 Color TFT Bonnet for Raspberry Pi - 240x240 TFT + Joystick Add-on

Rating:
100% of 100
SKU: ADA4506 Brand: Adafruit
If you'd like a compact color display, with buttons and a joystick - Adafruit have got what you're looking for. The Adafruit 1.3" Color TFT Bonnet for Raspberry Pi is the...
$36.80 AUD, inc GST
$33.45 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 1st of Apr

Quantity Discounts:

  • 10-25 $32.12 (exc GST)
  • 25+ $31.11 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

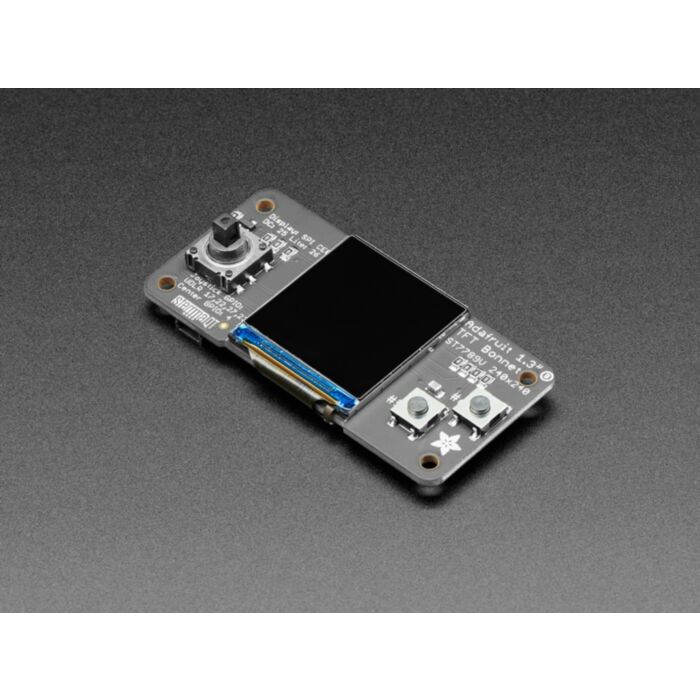

If you'd like a compact color display, with buttons and a joystick - Adafruit have got what you're looking for. The Adafruit 1.3" Color TFT Bonnet for Raspberry Pi is the big sister to Adafruit's mini PiTFT add-ons. This bonnet has 240x240 color pixels in an IPS TFT display controlled over SPI. This display is super small, only about 1.3" diagonal, but since it is an IPS display, it's very readable with high contrast and visibility.

With the TFT display in the center, Adafruit had some space on either side so they added a 5-way joystick and two pushbuttons. Great for when you want to have a control interface for your project. On the bottom Adafruit have a Qwiic/STEMMA QT connector for I2C sensors and device so you can plug and play any of Adafruit's STEMMA QT devices.

Using the display is very easy, Adafruit have a kernel driver and Python library for the ST7789 chipset. You can set it up as a console output so you can have text and user interface through the Raspberry Pi OS or you draw images, text, whatever you like, using the Python imaging library.  They also have Python code you can use to read the joystick and buttons. Adafruit's tests showed ~15 FPS update rates so you can do animations or simple video.

Comes completely pre-assembled and tested so you don't need to do anything but plug it in and install Adafruit's Python code! Works with any Raspberry Pi computer, including the original Pi 1, B+, Pi 2, Pi 3, Pi 4, and Pi Zero.

Instructions, software, downloads and more in the Learning Guide!

Technical Details

Product Dimensions: 65.5mm x 30.6mm x 15.2mm / 2.6" x 1.2" x 0.6"

Product Weight: 13.0g / 0.5oz
