A203 Carrier Board for Jetson Nano/Xavier NX

Add to Wish List

Skip to the beginning of the images gallery

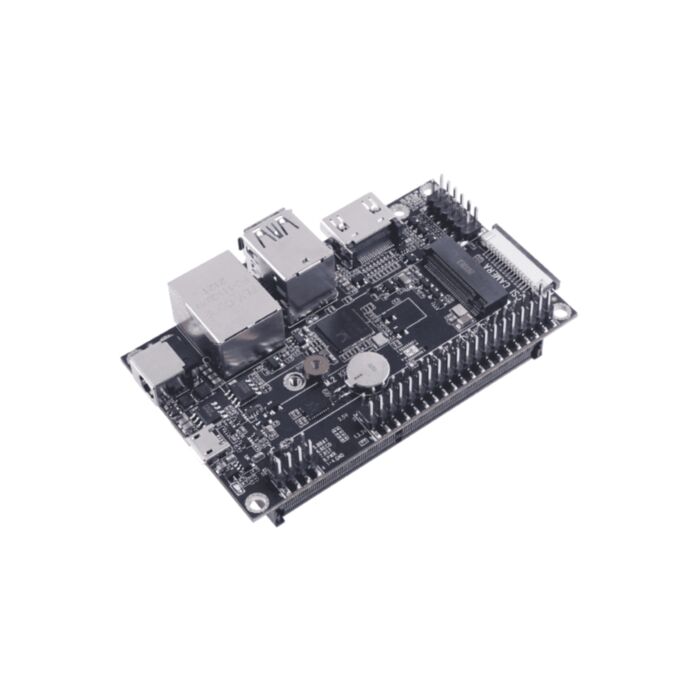

A203 Carrier Board for Jetson Nano/Xavier NX

SKU: SS114110047 Brand: Seeed Studio

A203 is a extended carried board specifically for NVIDIA Jetson Nano / Xavier NX...

$394.95 AUD, inc GST

$359.05 AUD, exc GST

Quantity Discounts:

3-6 $344.68 (exc GST)
6+ $333.91 (exc GST)

Out of Stock

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

Note

The carrier board is specially designed for working with Jetson Nano/Xavier NX module and we will not include NVIDIA Jetson nano / Xavier NX inside.
When using Jetson Nano, the wifi module cannot work with SSD together.

Features

Compact size (87mm*52mm*26mm) saves precious space
Light weight (57g) good for small AI or IoT Application
Rich ports, compatible with a large number of AI schemes
Supporting SSD
Supporting 4G communication
WiFi Bluetooth Supported

A203 is a high-performance, interface rich NVIDIA Jetson Nano / Xavier NX compatible carrier board, providing hdmi2.0, Gigabit Ethernet, USB3.0, USB 2.0 (w / OTG function) m.2 key ewifi / BT, m.2 key m solid-state drive, CSI camera, RS232, SD card, can, PIO, I2C, I2S fans and other rich peripheral interfaces are suitable for environments with strict environmental requirements, small size and powerful functions.

Basically, it only works with an NVIDIA Jetson Nano or an NVIDIA Xavier NX module to achieve graphic AI applications. To be more specific, with the NVIDIA Jetson Nan/Xavier NX Module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. It is suitable for small size AI graphical application such as smart-city IoT edge devices, NVR, home robots, UAV, unmanned boat, unmanned submarine which need to have a light weight, low power consumption and small overall design.

Application

Industrial Automation
Smart Office
Smart City
Smart Agriculture
Healthcare
Robotics

Specifications

A203 Connector Summary

Connector	Description
HDMI Port	HDMI Right Angle Vertical Connector
USB 3.0 Type A	USB 3.0 Link 1 Type A Connector
NVIDIA Gigabit Ethernet	RJ45 Gigabit Ethernet Connector (10/100/1000)
DC Power	DC Input Power TE Connector
USB 2.0 OTG	USB 2.0 Link 0 OTG Micro-AB Connector
FAN CONNECT	Picoblade Header
SD Card	1x microSD Card Slot
M.2 Key E	PCIE 2242 Size
CSI Camera	CSI Camera
Multifunctional port	2.0 PITCH 40 PIN
3V Lithium Battery	3V backup battery
M.2 Key M Disk	Disk size 2240
NVIDIA Jetson Nano/NX	Nano/NX 266 PIN Connector
Test connect	POWER,REST,RECOV
Multifunctional port	2.0 PITCH 8 PIN

HDMI

Pin	Description	Pin	Description
1	TMDS Data2+	2	TMDS Data2 GND
3	TMDS Data2-	4	TMDS Data1+
5	TMDS Data1 GND	6	TMDS Data1-
7	TMDS Data0+	8	TMDS Data0 GND
9	TMDS Data0-	10	TMDS Clock+
11	TMDS Clock GND	12	TMDS Clock-
13	CEC	14	NC
15	DDC clock	16	DDC data
17	DDC GND	18	+5V
19	Hot Plug Detect

USB 3.0

Pin	Description	Pin	Description
1	VBUS	2	USB 2.0 D-
3	USB 2.0 D+	4	GND
5	SSRX-	6	SSRX+
7	GND	8	SSTX-
9	SSTX+	10	VBUS
11	USB 2.0 D-	12	USB 2.0 D+
13	GND	14	SSRX-
15	SSRX+	16	GND
17	SSTX-	18	SSTX+

Ethernet

Pin	Description	Pin	Description
1	TP0+	2	TP0-
3	TP1+	4	TP2+
5	TP2-	6	TP1-
7	TP3+	8	TP3-

Power

Pin	Description	Pin	Description
1	DC
Input>:+7V—+19V

USB-OTG

Pin	Description	Pin	Description
1	VBUS	2	USB 2.0 D-
3	USB 2.0 D+	4	USB ID
5	GND

Note

When USB-OTG is as server mode, pin 4 should be NC (No Connect).
When USB-OTG is as client mode, pin 4 should be connected to the ground.

Fan

Pin	Description	Pin	Description
1	GND	2	+5V
3	FAN_TACH	4	FAN_PWM

Micro SD

Pin	Description	Pin	Description
1	SDIO_DATA2	2	SDIO_DATA3
3	SDIO_CMD	4	SDIO_VCC
5	SDIO_CLK	6	GND
7	SDIO_DATA0	8	SDIO_DATA1
9	GND	10	SDIO_CD

M.2

Pin	Description	Pin	Description
1	GND	2	+3.3V
3	USB_DP	4	+3.3V
5	USB_DM	6	NC
7	GND	8	I2S_CLK
9	SDIO_CLK	10	I2S_FS
11	SDIO_CMD	12	I2S_DIN
13	SDIO_D0	14	I2S_DOUT
15	SDIO_D1	16	NC
17	SDIO_D2	18	GND
19	SDIO_D3	20	M2_WAKE_AP
21	M2_WAKE_AP	22	UART_RX
23	M2_EN	24	UART_TX
25	GND	26	UART_CT
27	TX4_AP_P	28	UART_RT
29	TX4_AP_N	30	NC
31	GND	32	NC
33	RX4_M2_P	34	NC
35	RX4_M2_N	36	NC
37	GND	38	NC
39	PEX_CLK1_P	40	NC
41	PEX_CLK1_N	42	CLK_32KHZ
43	GND	44	PCIE_L0_RST
45	PCIE_L0_CLKREQ	46	W_DISABLE2
47	PCIE_WAKE_L	48	W_DISABLE1
49	GND	50	I2C_SDA
51	NC	52	I2C_SCL
53	NC	54	M2_E_ALERT
55	GND	56	NC
57	NC	58	NC
59	NC	60	NC
61	GND	62	NC
63	NC	64	+3.3V
65	NC	66	+3.3V
67	GND

CSI Camera

Pin	Description	Pin	Description
1	GND	2	CSI_A_D0_N
3	CSI_A_D0_P	4	GND
5	CSI_A_1_N	6	CSI_A_D1_P
7	GND	8	CSI_A_CLK_P
9	CSI_A_CLK_N	10	GND
11	CAM1_PWDN	12	CAM1_MCLK
13	CAM_I2C_SCL	14	CAM_I2C_SDA
15	+3.3V	16

40 pin IO

Pin	Description	Pin	Description
1	3.3V	2	5V
3	I2C2_SDA	4	5V
5	I2C2_SCL	6	GND
7	GPIO9_(3.3V_LEVEL)	8	UART1_TXD
9	GND	10	UART1_RXD
11	UART1_RTS	12	I2S0_SCLK
13	SPI1_SCLK	14	GND
15	GPIO12_(3.3V_LEVEL)	16	SPI1_CS1
17	3.3V	18	SPI1_CS0
19	SPI0_MOSI	20	GND
21	SPI0_MISO	22	SPI1_MISO
23	SPI0_SCK	24	SPI0_CS0
25	GND	26	SPI0_CS1
27	I2C1_SDA	28	I2C1_SCL
29	GPIO1_(3.3V_LEVEL)	30	GND
31	GPIO11_(3.3V_LEVEL)	32	GPIO7_(3.3V_LEVEL)
33	GPIO13_(3.3V_LEVEL)	34	GND
35	I2S0_LRCK	36	UART1_CTS
37	SPI1_MOSI	38	I2S0_SDIN
39	GND	40	I2S0_SDOUT

8 pin IO

Pin	Description	Pin	Description
1	GND	5	PWR_BTN-
2	GND	6	RECOVERY
3	GND	7	RST
4	GND	8	PWR_BTN+

CAN

Pin	Description	Pin	Description
1	RS232_TXD	5	CAN_H0
2	RS232_RXD	6	CAN_L0
3	GND	7	MCU_C2CK
4	MCU_C2D	8	3.3V

USB 2.0

Pin	Description	Pin	Description
1	GND	9	5V
2	USB3.0_RX_N	10	GND
3	USB3.0_TX_P	11	NC
4	USB3.0_TX_N	12	NC
5	USB3.0_RX_P	13	NC
6	USB2.0_DM	14	NC
7	USB2.0_DP	15	NC
8	5V

Hardware Overview

Part List

1 x A203 Carrier Board

1 x Power Adapter 15V/3A

Documentations
