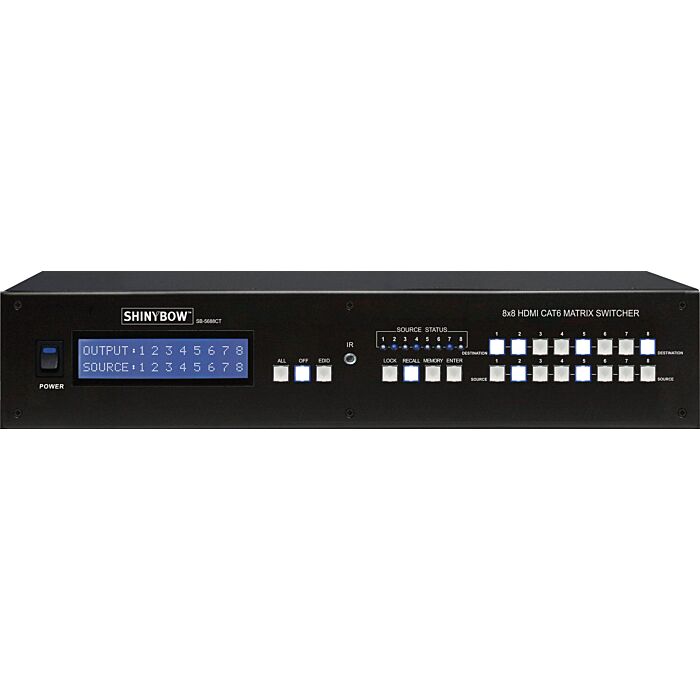

8x8 HDMI HD BaseT Balun Matrix Switcher

SKU: AA3532

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Connects eight HDMI AV devices independently and switches each to eight HDMI equipped displays using the latest HDBaseT technology. HDBaseT allows the A 3532 to send full uncompressed audio and video over a single Cat5e/6 UTP cable to the A 3528 receiver located in another room up to 100m away. Each receiver unit is fitted with RS-232 and infra-red (IR) for controlling source equipment remotely.
Each matrix switcher is fitted with RS-232 control port and IR extender port for easy remote source/monitor selection. RS-232 connections are also provided for each individual zone. Preset configurations can be stored in memory and recalled at a button press. The A 3532 is fitted with HDMI outputs which can be used simultaneously with the Cat5e/6 outputs. Supports resolutions up to 1080p. 19” rack mountable (ears supplied). HDCP and HDMI 1.4 compliant. Suitable for transmission of 3D TV signals. All units include power supplies.
A 3528 receivers sold individually.

Note: We recommend a high quality Cat5e/6 cable for use with baluns up to 100m away. Do not use with CCA type UTP cable which does not support the data rate required for uncompressed HDMI signals.

Features

3D Enabled
8x HDMI source devices matrix switched to 8x HDMI and 8x CAT5e/6 Extender output devices
Application IR enabled by products designed using HDBaseT Specifications, RS-232, Multi Audio Format and HD Video Signals over CAT5e/6 Cable
HDMI digital Video with embedded Audio, DVI format and CEC/HDCP 2.0 compliant
Worldwide control EDID modes for HD Video resolutions
Link speeds of up to 6.75 Gbps (link clock rate of 340MbHz), Support HDMI 1.4a 3D formats
Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i and 1080p
Compatible with all HDMI source devices, PC monitors, Plasma HD display, HDTV and audio receivers/amplifiers
Digital Video TMDS formats Resolution up to 1080P-60 with Deep color 36-bit
Digital Audio Support:
Dolby TrueHD
Dolby Digital
Dolby Digital Plug/ex
DTS
DTS-HD
DTS-HD Master
DTS-EX
PCM, PCM2, LPCM2
Various User Interface Control:
Windows based GUI control via RS-232 port
Front Panel push button
IR wireless remote control
Third party RS-232 controller (via simple ASCII)
Support World Wide Control Functions: ALL/OFF/RECALL/ENTER/MEMORY/EDID/LOCK
Support EDID Modes:
Internal Modes: AUTO/1080p-2CH/1080p-5.1/1080p-7.1/1080i-2CH/720p-2CH
External Modes: Passing mode with learning function
Automatic scanning input and output status via LED show on front panel
Support IR Remote and IR Extender with distance up to ~ 1000 ft (300m) Max
EDID configuration via Internal modes
Consumer Electronic Control (CEC) switch all open or OFF

In The Box
A 3532 HDBaseT HDMI Matrix Switcher
Master wireless IR Remote Control
(8 each) Individual wireless IR Control
19 inch Ear mount bracket
IR Extender Transmitter
IR Extender Receiver
(2 each) IR Extender Cable 10 ft (3m)
RS-232 Cable 6 ft (2m)
CD Contents: This manual, Windows GUI, ISP V1.0 Windows driver, RS-232 driver (All Windows Operating Systems)
Users Guide
AC/DC Adapter: Worldwide Universal Power Supply 100~230 VAC, AC 50/60Hz, 10A

Specifications

Type of Switcher: 8 in to 8 out, HDBaseT Matrix HDMI Matrix Routing Switcher
Inputs: Video TDMS 0.5, 1.0Vpp, DDC 5Vpp
Signals Supported: HDMI Standard, DVI and HDCP Compliant
Video Supported: 1080p HDMI formats and DVI UXGA 1600x1200 HD resolutions
Audio Supported: DTS-HD Master Audio, Dolby True- HD and Dolby Digital Plus
Various video input interface supporting digital video standards such as:
RGB/YCbCr: 24/30/36 bits
YCbCr: 8/10/12/16/20/24 bits
Double data rate interface for RGB/YCbCr: 12/15/18 bits
Controls: IR, IR EXT, Select buttons on the front panel and RS-232
Data Rates: 250Mbps to 6.75Gbps
IR Extender Distance: 1,000 ft
Infrared Frequency: 38KHz
Safety Approvals: CE, FCC, RoHS (2002/95/EC)
Switcher Size (LxWxH): (482 x 200 x 44 mm)
Shipping Weight: 4.25 lbs
Power Source: DC12V/2A (consumption 1680mA Max)
Use Universal Switch Type 50/60Hz, 100~230 VAC
