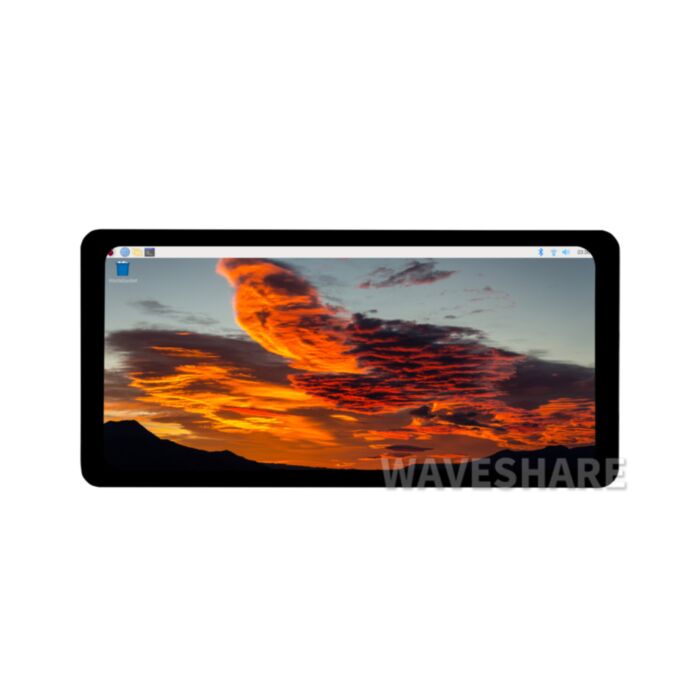

6.25inch Capacitive Touch Display, 720×1560, Optical Bonding Toughened Glass Panel, HDMI Interface, IPS Panel, 5-Point Touch
Retired Product
Replaced by: TouchscreenThis product is no longer available. This page is only for reference.
6.25inch Capacitive Touch Display, 720×1560, Optical Bonding Toughened Glass Panel, HDMI Interface, IPS Panel, 5-Point Touch6.25" Capacitive Touch Display
High Resolution | Multi-Point Touch | Full Color
Size: 6.25"
Resolution: 720×1560
Display Interface: HDMI
Display Panel: IPS
Viewing Angle: 178°
Touch Type: Capacitive
Touch Points: 5-Point
Touch Port: USB Type-C
Touch Panel: Toughened Glass
Touch Panel Tech: Optical Bonding
Audio Output: 4PIN Header
The display orientation is portrait by default, 720×1560 resolution (H×V). Change the software config for landscape display.
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 5-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Series Board
Supports Ubuntu, single point touch, driver-free PC.
Supports Windows 11 / 10 / 8.1 / 8 / 7, 5-point touch, driver free
Connection Examples
Working with Raspberry Pi 5
Working with Raspberry Pi 4B
Working with Raspberry Pi Zero 2 W
You need to prepare an additional mini HDMI adapter and USB cable
Working With Jetson Series Board
Working with PC
for reference only, the above controller boards or host are NOT included
IPS Display Panel
Excellent Display Performance With 178° Wide Viewing Angle
Capacitive 5-Point Touch
- up to 5-Point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Supports backlight adjustment via software
Interface Introduction
Dimensions
Support touch screen customization
Support the following ways to customize the touch screen display in bulk order
Have a look :
- 6.25inch 720x1560 LCD ×1
- Capacitive touch pen ×1
- HDMI to Micro HDMI adapter ×1
- USB-A to Type-C cable ~1m ×1
- HDMI flat cable ~1m ×1
