2 Input to 6 Output Audio Splitter

SKU: AA4415

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

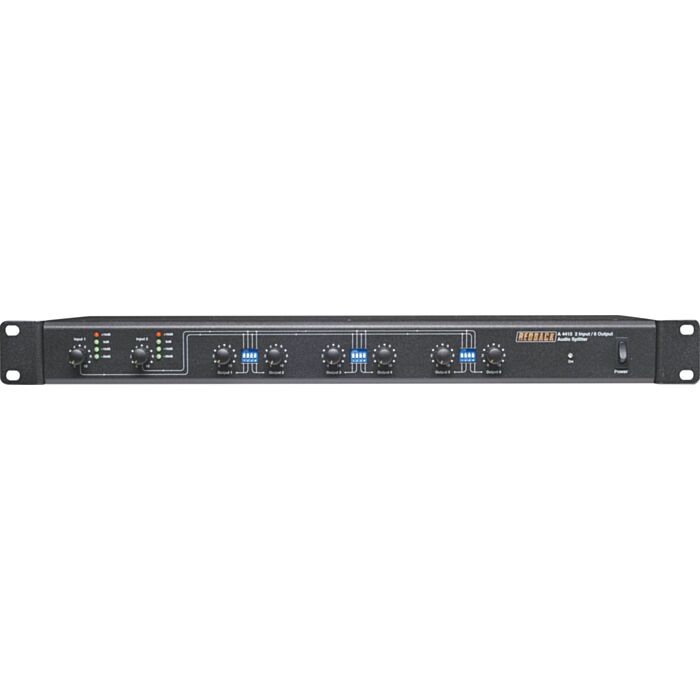

Housed in a 1RU enclosure, this excellent design incorporates two inputs and six outputs. All inputs and outputs consist of a balanced 3 pin XLR and dual RCA sockets. Both input and output XLR’s can be switch selected for either balanced microphone or balanced line levels. Each input can be selected either on or off to any output via the front panel DIP switches. Level controls are provided for both inputs and all outputs. Individual LED VU meters are provided for each input. The versatility of the design allows for both inputs to accept either microphone, balanced line or auxiliary source signals to be fed to any output at either microphone, balanced line or auxiliary level. This allows great flexibility to the system designer. Ideal for routing common signals to six different zones or outputs in large installations, or for recording applications such as media press conferences and courtrooms. The system can also be powered from 24V DC in battery backup situations.

Features

2 inputs to 6 outputs
Compact 1RU design
240V AC or 24V DC operation
Any input switchable to any output
Each input and output can be configuredfor balanced mic/line or auxiliary operation
Individual input/output level controls
All settings can be made without lifting the lid
LED VU meters for each input

100% developed, designed & assembled in Australia.
Single 1976 Redback PA products have been manufactured in Perth, Western Australia. With over 35 years experience in the commercial audio industry, our distribution network offers consultants, installers and end users reliable products of high build quality with local product support. Read more about our Australian Made products

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. We offer a 10 Year Warranty on all Australian Made Redback products. Our in-country service department has all the know how to answer technical queries and provide timely service. Read more about this industry leading warranty.

Specifications

Inputs:
2 XLR 3 pin balanced mic 600Ω
or switchable to balanced line 10kΩ
2 Line unbalanced dual RCA 10kΩ
Output:
6 XLR 3 pin balanced 50Ω
6 Line unbalanced dual RCA 10kΩ
Controls
2 input level controls
6 output level controls
Frequency response
55Hz - 30kHz
S/N ratio:
Mic >60dB
Line > 70dB
Indicators:
power, input signal
Power supply:240V AC or 24V DC
Dimensions:482W x 210D x 44H mm
Weight:≈3 kg
Colour:Black
*(subject to change without notice, measurements referenced to 1kHz)

Downloads

Instructions
