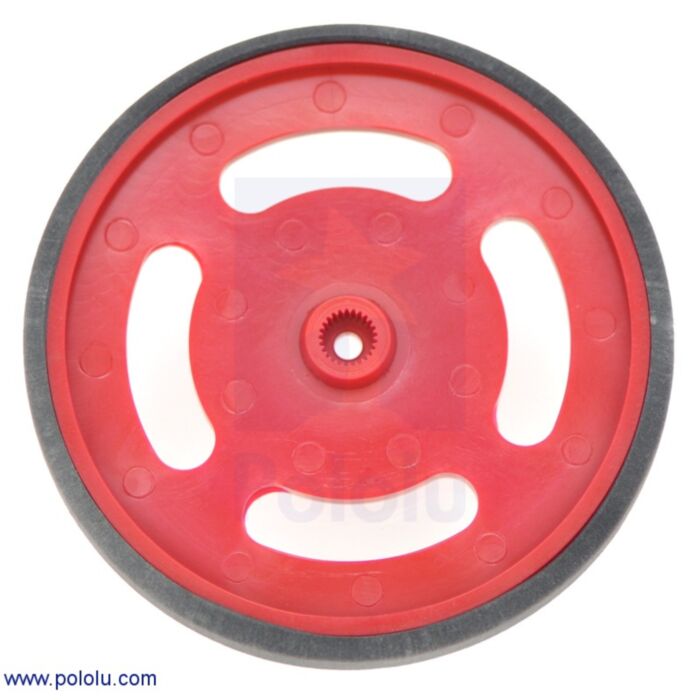

2-5/8" plastic Red wheel Futaba servo hub

SKU: POLOLU-227 Brand: Pololu

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

New alternatives available! Pololu have released Pololu's own servo wheels that Pololu recommend over this product. In particular, Pololu's 70×8mm Wheel for Standard Servos has almost the same dimensions as this wheel (see the picture below for a side-by-side comparison).

2-5/8" Futaba Servo Hub, Solarbotics 2-5/8" SW-B Servo Wheel, and 70mm Pololu Wheel for Standard Servo Splines.

This plastic Futaba servo wheel is made to match standard Futaba servo splines (25T, 5.8 mm diameter), such as those on the SpringRC SM-S4303R and Power HD AR-3606HB continuous rotation servos. The wheel is molded from ABS and measures just under 2-5/8" across by 0.3" wide. With the included rubber band tire, the total wheel diameter is 2-5/8". The wheel is available in blue, yellow, red, and black.

Pololu's 60×8mm/70×8mm tires for Pololu wheels also fit this wheel, making them a suitable replacement for when the rubber band tires are worn from use. The Pololu tires also have grooves cut into them along the perimeter of the tire, which might help by providing a better grip in certain applications.

Silicone Tire for 60×8mm/70×8mm Pololu Wheels attached to a 2-5/8" Plastic Black Wheel Futaba Servo Hub.

Included Parts

One wheel
Two rubber band tires (one is a spare)

Installation

To install the wheel, remove the screw on your servo’s output shaft, push the wheel onto the shaft, and reinstall the screw. For some servos, such as the SpringRC SM-S4303R, the wheel might be a tight fit and not push onto the servo output shaft. In such cases, please try the method shown in this video:

Newer Versions

For a version of this robot servo wheel that has molded-on silicone and built-in encoder stripes, see the Solarbotics SW servo wheels with encoders.

Note: The Futaba servo wheel does not come with any mounting hardware. To mount the wheel, use the screw included with your servo.

People often buy this product together with:

2-5/8" Plastic Yellow Wheel Futaba Servo Hub

0.100" (2.54 mm) Breakaway Male Header: 1×40-Pin, Straight, Double-Sided

SpringRC SM-S4303R Continuous Rotation Servo

Dimensions

Size:	2-5/8" diameter, 0.3" wide

General specifications

Color:	red
