2.4G Wireless Video Transmission Module (640*480 Resolution)

SKU: TEL0127 Brand: DFRobot

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Note: Blue/Green Random Delivery.

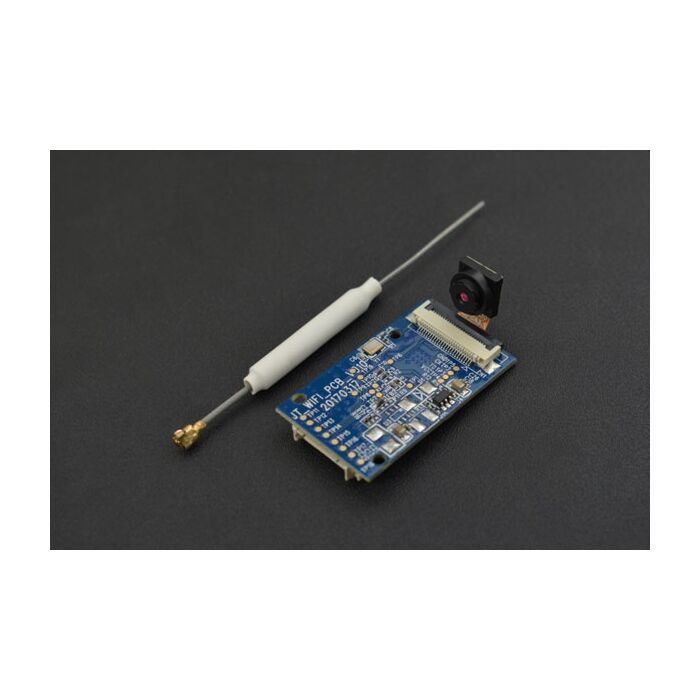

The new wireless video transmission module consists mainly of a PCB board, a camera and a peripheral Wi-Fi antenna. Designed for 2.4G wireless video transmission and remote control, this wireless video transmission module is particularly easy to use. Once the module is powered on, the Wi-Fi hotspot will be turned on automatically.

The onboard blue indicator can immediately show the status of network connection. Light ON in blue indicated a successful connection, and intermittent flash indicates that the module is disconnected.

Through the matching software, we can check all data collected by the camera in real-time, and realize functions such as recording video, taking photos. It also supports VR mode when equipped with VR goggles. The images can be received by different smart devices like smartphone, IOS/ Android operation systems and so on.

This wireless video transmission module is as small as the thumb. It can be widely used in various applications, especially moving objects. E.g. Mobile camera device, UAV (unmanned drone), driving recorder (DVR).

Specification

PCB

Image resolution: 300K pixels (25 to 30fps, the frame rate is depending on the environment)
Video compression: dynamic JPEG
Frequency: 2.4~2.4835GHz
Modulation method: BPSK/QPSK/16-QAM/64-QAM
Operating Voltage: 5V±0.1V
Power consumption: 0.8W
RF output power: 802.11n, 14dBm
Receiving sensitivity: 802.11n(20M~mcs7), -66dBm@10%
Transmission distance: about 50m (in open area low interference conditions)
Crystal frequency: 12MHz
Connector interface Specification 8pin, 1.25mm spacing
Angle of view: 60°
Operating temperature: 0~50°C
Dimension: 35*21*6.7mm(max) / 1.4*0.8*0.3inch(max)

APP

Supporting system: Android4.3 and above, ios8.0 and above
Video format: AVI
Image format: JPEG
APP installation package size: about 20MB (depends on UI design)
VR display: watching with VR goggles
File directory: Photos/Videos
Wi-Fi signal strength: 3 levels (1<2<3)

Documents

App Download

Parts List

2.4G Wireless Video Transmission Module (640*480 Resolution) x1
