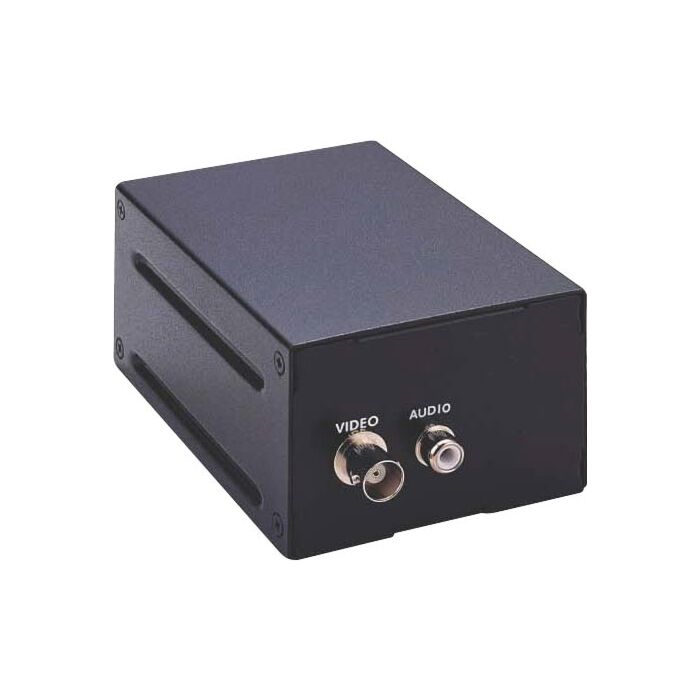

1 Channel Video Web Server With PTZ Control

SKU: AS9460

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

This network video server can broadcast a single channel of video and audio across the internet (or intranet), it is excellent for security applications as well as video conferencing. With its own built in CPU the server can provide video up to 352x288 resolution at 25 frames per second over LAN and 4 frames per second over the RS-232 port. Audio transmission is built in to provide clear sound when video conferencing. It utilises high performance MPEG4 compression which synchronises audio and video seamlessly. Its built in web server can provide worldwide access making it easy to view just about anywhere. Software provided allows motion detection, image capture, alarm/sensor triggering, Pan/Tilt/Zoom and iris controls, as well as a comprehensive file management and playback suite. Requires M 8934 12V 1.5A power supply.

Outputs:RJ45 (for network), RS232 (for modem)
RS485 (terminal block), 1 alarm trigger output (terminal block)
Inputs:2 BNC video, 2.1mm DC (5VDC tip positive)
1 external alarm input trigger (terminal block)
Memory:2Mb Flash, 16Mb Built In
Resolution modes:176 x 144, 352 x 288
Dimensions:190 x 45 x 130mm
Weight:930g

Features

Video and audio transmission
MPEG4 compression
RS232 modem communication via PPP protocol
RJ45 10/100 MBit network connection
RS485 pan/tilt/zoom (PTZ) control outputs
HTTP web server inbuilt
Password protection
Software based PTZ camera control
Remote recording software
1 alarm trigger input, 1 relay output
Adjustable image size, quality and bit rate
Image capture on alarm trigger
Retrieval of captured images via email
FTP / Telnet access
DHCP assignable IP

Downloads

Instruction Manual
