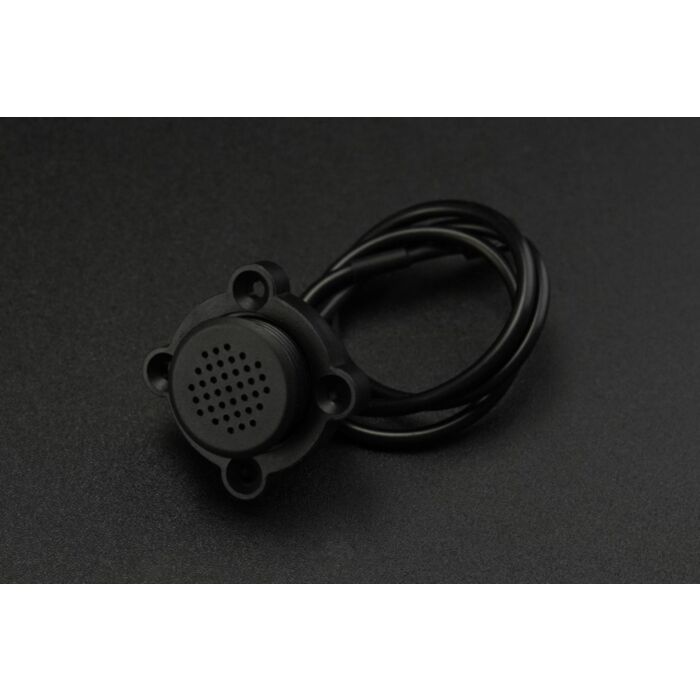

Threshold Formaldehyde HCHO Detection Sensor (0-20ppm)

SKU: SEN0595 Brand: DFRobot

Stay safe with the Threshold Formaldehyde HCHO sensor. Designed for optimal formaldehyde detection in various applications, including smart home systems...

Special Price $30.73 AUD, inc GST

Regular Price $39.52 AUD, inc GST

$27.94 AUD, exc GST

Special pricing ends 05 August 2024

* this special may end earlier than shown

Available with a lead time
Expect dispatch between May 17 and May 20

This formaldehyde gas sensor differs from most gas sensors on the market as it does not provide specific gas concentration data. Instead, it detects whether the surrounding environment exceeds or falls below a fixed threshold. It operates on a wide voltage range of 5-24V, with high and low-level outputs. The sensor is equipped with an indicator light for easy observation of its status, making it user-friendly. When the sensor detects a gas concentration above the threshold, it outputs a high-level signal and the indicator light illuminates. Conversely, when the concentration falls below the threshold, it outputs a low-level signal and the indicator light turns off.

Formaldehyde Sensor Overview

Formaldehyde, with the chemical formula CH2O or HCHO, is a colorless gas with a strong, pungent odor. It is soluble in alcohols and ethers. Acute formaldehyde poisoning is a systemic disease primarily characterized by damage to the eyes and respiratory system, caused by exposure to high concentrations of formaldehyde vapor. When the concentration reaches 0.08-0.09mg/m3 in ambient air, children may experience mild wheezing. At 0.1mg/m3, there may be odor and discomfort. At 0.5mg/m3, it can cause eye irritation and tear production. At 0.6mg/m3, it can cause discomfort or pain in the throat. Higher concentrations may result in nausea, vomiting, coughing, chest tightness, asthma, and even pulmonary edema. A concentration of 30mg/m3 can be fatal.

Note: The threshold of this sensor is factory-fixed and cannot be modified by the user. Custom threshold parameters can be set for bulk orders.

If you need to measure formaldehyde concentration accurately,we recommend the MEMS Formaldehyde HCHO Gas Detection Sensor.

Dimension Diagram of Formaldehyde Sensor

Connection Port Diagram of Formaldehyde Sensor

Features

Threshold-based detection

Wide voltage range, 5-24V

High and low-level outputs

Indicator light for status observation

User-friendly design

Applications

Indoor air quality monitoring

Safety and occupational health

Environmental monitoring

Smart home systems

Research and development

Specification

Power Supply Voltage: 5-24V

High level output range: 5-24V(Output high voltage = supply voltage)

Load Current: <100mA

Static Current: <10mA

Detectable Gas: Formaldehyde (CH2O, HCHO)

Resolution: 0.01ppm

Repeatability: <2% of the output value

Threshold: 0.06ppm˜0.075mg/m3 (Factory-fixed threshold, cannot be modified by the user)

Maximum Load: 20ppm

Response Time: <15s

Zero-Point Output: -0.10~0.02ppm

Output Mode: High-level and low-level signals

Line sequence: Black line -OUT, Brown line -VCC, Blue line -GND

Pressure Range: 1±0.1 standard atmospheric pressure

Lifespan: 3 years (in air)

Storage Environment: 10°C ~ 30°C

Operating Temperature Range: -10°C ~ 50°C

Operating Humidity Range: 15% ~ 90% RH

Long-Term Stability: <2% of the signal value per month

Dimensions: L*W*H=30.35*47.4*47.4mm

Cable Length: 50cm

Housing Material: Black PCV0 flame-retardant material

Parts List

Formaldehyde Detection Sensor x1
