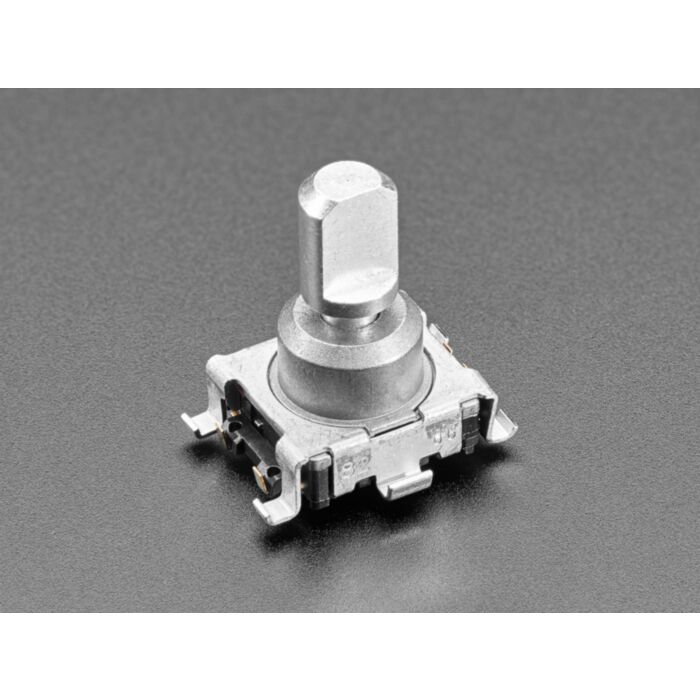

Surface Mount Rotary Encoder - EC11J

SKU: ADA5454 Brand: Adafruit

For projects that need a rotary encoder but need to keep it single-sided or need to avoid interrupting traces or devices on the other side, here's an...

$8.85 AUD, inc GST

$8.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 27th of Nov

Quantity Discounts:

10-25 $7.73 (exc GST)
25+ $7.48 (exc GST)

For projects that need a rotary encoder but need to keep it single-sided or need to avoid interrupting traces or devices on the other side, here's an all-SMT rotary encoder! It's a high-quality 15-pulse encoder from Alps, with detents and a nice feel. There's a nice smooth bushing for placement in a box.

Knob not included, but you can pick one up here.

This encoder also has a push-button built into it so you can press onto the knob to close a separate switch. One side has a 3 pad connector (ground and two coding pins) and the other side has two pad for a normally open switch. There's also 6 large mechanical pads for making a strong physical connection: best to use a ground plane with 6 open pads so that there's a solid sheet to protect against the encoding shearing off.

Rotary encoders are useful as rotation sensors or selectors and look similar to potentiometers. However they are not like potentiometers at all, so it's important to realize the difference! These rotary encoders rotate all the way around continuously and are divided up into 15 'segments'. Each segment has a clicky feeling to it, and each movement clockwise or counter-clockwise causes the two switches to open and close. There is no way to know what the current 'position' is - instead you would use a microcontroller to count how many 'clicks' left or right it has been turned. If you need to detect rotational 'position' a potentiometer would be a better choice.

Technical Details

Specifications:

15mm long flat shaft
30 positions 15 pulses
Press-switch travel: 1.5mm
Operating life: 100,000 cycles
Operating temperature range: -40°C to +85°C
10mA 5V DC
Output signal: A, B, 2-phase output
Maximum/minimum operating current (resistive load): 10mA/1mA
Insulation resistance: 100MO min. 250V DC
Withstand voltage: 300V AC for 1 minute or 360V AC for 1s
Detent torque:
- 12±5mN·m (initial stage)
- 10±4mN·m (after reflow)
Shaft push and pull strength: 100N
Journey: 0.5±0.3mm
Action force: 5±2N

Datasheet
