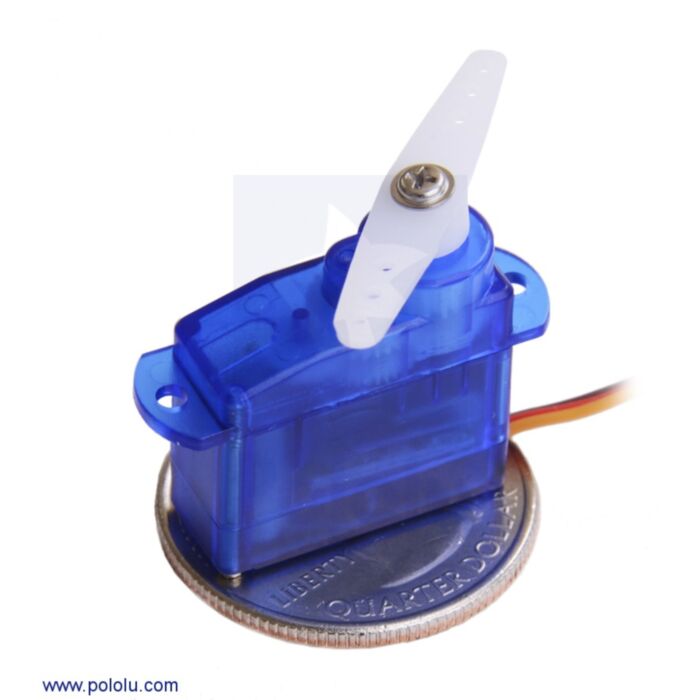

Sub-Micro Servo 3.7g (Generic)

SKU: POLOLU-1053 Brand: Pololu
This generic sub-micro servo is one of the lightest servos Pololu carry, weighing just 3.7 g (0.13 oz) without the lead. It is intended for use between 4.8 and 6 V (i.e. with 4- or 5-cell NiMH or NiCD battery packs). Servo horns and associated hardware are included. Key specs at 6 V: 0.07 sec/60°, 6 oz-in (0.4 kg-cm), 3.7 g (0.13 oz).
$11.55 AUD, inc GST
$10.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 20th of Nov

Quantity Discounts:

  • 10-25 $10.18 (exc GST)
  • 25+ $9.97 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This tiny servo is great for applications such as:

  • Building a miniature walking robot.
  • Creating grippers or other mechanisms for small robots.
  • Moving control surfaces on small model aircraft.

It measures just 20.2 x 8.5 x 20.2 mm (0.80" x 0.33" x 0.80") and weighs only 3.7 g (0.13 oz) without its 15 cm (6") lead. The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible. The distance between the two mounting holes is 23.5 mm.

The servo ships with additional servo horns.

An example of hardware included with the Power HD sub-micro servo HD-1440A and the sub-micro servo 3.7g (generic). Actual hardware might vary.

Note: As of November 6, 2012, Pololu are shipping a new version of this servo from a different manufacturer. The dimensions are almost identical to Pololu's original version, and the speed and torque are very similar. The new version should be usable as a functional substitute for the original. The main differences are that the newer version is a different shade of blue, and it can operate at 6 V (the original version was only intended for operation at 4.8 V).

People often buy this product together with:

Pololu Carrier with Sharp GP2Y0D810Z0F Digital Distance Sensor 10cmPololu Carrier with Sharp GP2Y0D810Z0F Digital Distance Sensor 10cm
Micro Maestro 6-Channel USB Servo Controller (Assembled)Micro Maestro 6-Channel USB Servo Controller (Assembled)
Micro Maestro 6-Channel USB Servo Controller (Partial Kit)Micro Maestro 6-Channel USB Servo Controller (Partial Kit)

Dimensions

Size: 20.2 x 8.5 x 20.2 mm
Weight: 3.7 g

General specifications

Digital?: N
Speed @ 6V: 0.07 sec/60°
Stall torque @ 6V: 6 oz·in
Speed @ 4.8V: 0.09 sec/60°
Stall torque @ 4.8V: 4 oz·in
Hardware included?: Y
Lead length: 6 in
