Invenscience i00600 Torxis Servo 1600 oz.in. 1.5 sec/90 deg

Skip to the beginning of the images gallery

Invenscience i00600 Torxis Servo 1600 oz.in. 1.5 sec/90 deg

SKU: POLOLU-1390 Brand: Pololu

The i00600 Torxis is an ultra-high-torque servo that can deliver a continuous duty torque of up to 1600 oz-in (115 kg-cm) at 12 V. This monster servo is controlled via the standard radio-controlled hobby servo interface and can travel 90 degrees in 1.5 seconds. The Torxis servo’s strength makes it suitable for applications that are too demanding even for giant-scale servos, and its 0.125"-thick mounting flange and aluminum main housing make it rugged enough for the rigors of a factory environment.

$639.82 AUD, inc GST

$581.65 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 29 and May 03

Quantity Discounts:

3+ $572.93 (exc GST)

The industrial-grade Torxis high-torque servos by GearWurx (formerly know as Invenscience) are available in two different gear ratios that let you select for higher power or higher speed:

The i00600 Torxis can rotate 90° in 1.5 seconds while providing 100 lb-in (115 kg-cm) of continuous duty torque (200 lb-in peak torque).
The i00800 Torxis can rotate 90° in 0.75 seconds while providing 50 lb-in (57 kg-cm) of continuous torque (100 lb-in peak torque).

The servo is powered by 12 volts DC and draws approximately 3 A at full load. All of its gears are metal for increased durability, and the 3/8" hardened output shaft is supported by two ball bearings. It is pre-configured for a 90 degree range of motion, but this can be increased by reconfiguring the embedded controller (see the Bonus Feature section below for more information). The Torxis is controlled by the standard radio-controlled (RC) hobby servo signal used by most RC receivers and servo controllers.

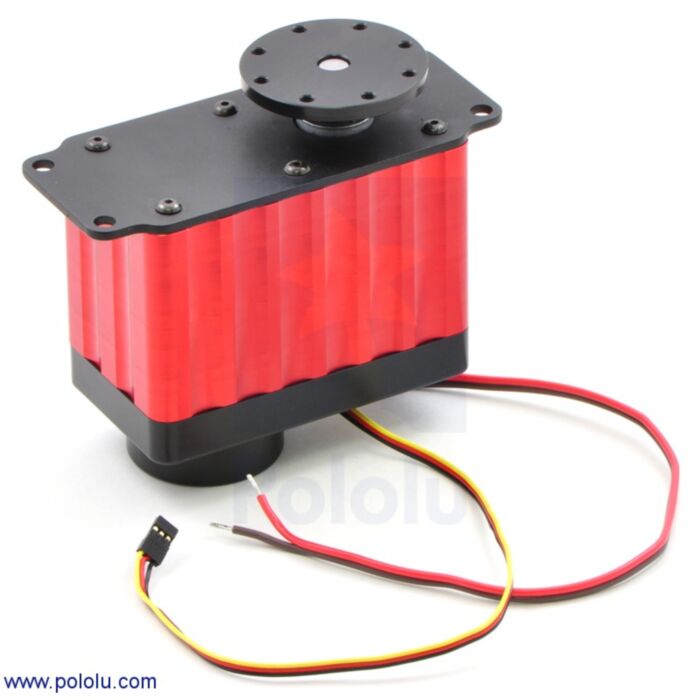

The servo includes a pre-mounted metal horn as shown in the pictures; the horn has eight 10-32 threaded mounting holes. (No mounting hardware is included.)

Torxis servo signal and power connections.

The Torxis control signal lead is terminated with a standard “JR”-style connector, which consists of two wires: ground (black) and RC PWM signal (white). Power is connected via the Torxis’ two separate, heavier-gauge wires.

The following video shows the i00600 Torxis servo lifting a 100 lb load as part of GearWurx’s servo cycle testing:

Dimensions

These servos are much larger than typical RC hobby servos and weigh approximately 2.2 lb (1.0 kg). The diagram below shows the dimensions of the Torxis servo.

Torxis i0060 and i00800 servo mechanical dimension diagram. Units are inches.

Applications

The Torxis servo’s power makes it suitable for ultra-high-torque applications that previously required custom feedback control systems including:

Unmanned ground vehicle controls
Factory automation and valve actuation
Heating ventilation and air conditioning airflow controllers
Solar panel sun tracking
Opening and closing gates and windows

Removing the end cap of the Torxis servo reveals a Jrk 21v3.

Bonus feature: there’s a Jrk inside!

The Torxis servo is controlled by an embedded Jrk 21v3, a highly-customizable USB motor controller that also offers serial, analog, and USB interfaces. Using the free Jrk Configuration Utility, parameters including range, response curves, speed or current limits, and much more can be customized for your application. The Jrk enables the Torxis servo to function as a USB-controlled servo while allowing the host computer to monitor and graph position, current, and other parameters in real time. For more information about these features, please see the Jrk 21v3 user’s guide.

People often buy this product together with:

i00800 Torxis Servo 800 oz.in. 0.75 sec/90 deg

Jrk 12v12 USB Motor Controller with Feedback

Dimensions

Size:	5.50" x 2.40" x 4.66"
Weight:	2.2 lb

General specifications

Digital?:	Y¹
Speed @ 12V:	1.0 sec/60°
Stall torque @ 12V:	3200 oz·in²
Stall torque @ 6V:	1600 oz·in³
Reverse voltage protection?:	Y
Hardware included?:	N⁴
Lead length:	12 in

Notes:

1: Serial and USB interfaces also available.
2: The continuous duty torque rating for this product is 1600 oz-in. Exceeding this rated torque for a prolonged period of time or attempting to stall this servo can damage it.
3: This product is intended for 12V operation.
4: The only included hardware is the circular horn shown in the product picture.

Documentation and other information

Pololu Jrk USB Motor Controller User’s Guide (Printable PDF)

The user’s guide for the Jrk 21v3 USB Motor Controller and the Jrk 12v12 USB Motor Controller.

File downloads

Datasheet for the Torxis servos (494k pdf)
Torxis Servo wiring instructions and precautions (55k pdf)
Torxis servo e-drawing (1MB EPRT)

An e-drawing for the Torxis servo.
Torxis servo Solidworks file (2MB SLDPRT)
Jrk Motor Controller Windows Drivers and Software (release 121204) (5MB zip)

This ZIP archive contains the installation files for the Jrk Configuration Utility, the Jrk command-line utility (JrkCmd), and the Jrk drivers for Microsoft Windows.
