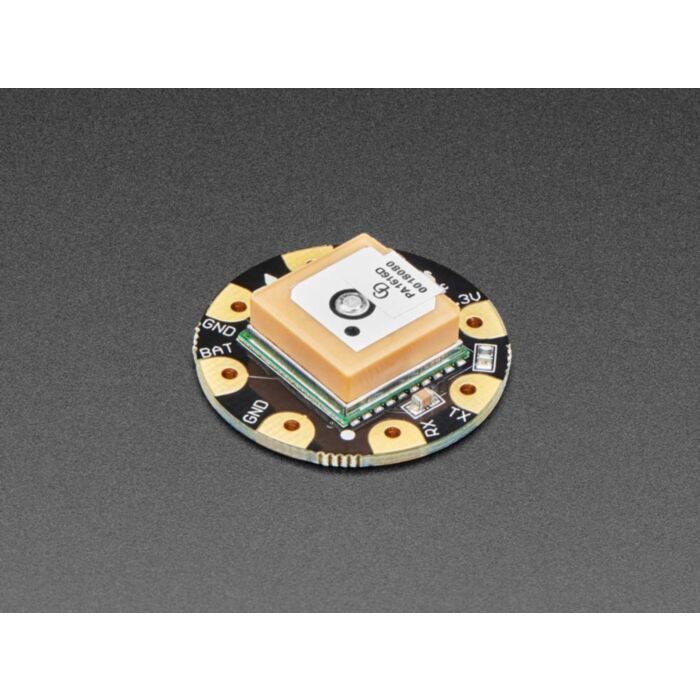

Flora Wearable Ultimate GPS Module

SKU: ADA1059 Brand: Adafruit

This module is the best way to add a GPS to your wearable project. It's part of the Adafruit Flora series of wearable electronics, designed specifically for use with the Flora motherboard. Installed on the PCB is the latest of our Ultimate GPS modules, a small, super-thin, low power GPS module with built in data-logging capability! This module's easy to use, but extremely powerful!

$49.20 AUD, inc GST

$44.73 AUD, exc GST

Quantity Discounts:

10+ $42.94 (exc GST)
25+ $41.60 (exc GST)

Out of Stock

-165 dBm sensitivity, 10 Hz updates, 99 search channels
Designed for wearable use with the Flora system
Only 30mA current draw
RTC battery-compatible - sew a battery on to create a atomic-precision real time clock
Built-in datalogging
Internal patch antenna u.FL connector for external active antenna
Fix status LED

The breakout is built around the MTK3333 chipset, a no-nonsense, high-quality GPS module that can track up to 22 satellites on 66 channels, has an excellent high-sensitivity receiver (-165 dB tracking!), and a built in antenna. It can do up to 10 location updates a second for high speed, high sensitivity logging or tracking. Power usage is incredibly low, only 30 mA during navigation.

Please note that as of July 2021, the original module we used was discontinued by the vendor. We found and are using a nearly-identical version of the module - it's a little taller (4mm) but has the same functionality. The commands for querying the antenna have changed slightly so existing projects may need to update their firmware.

The module is kept small and simple, we have a ferrite bead, filter capacitor and red fix LED on board. The LED blinks at about 1Hz while it's searching for satellites and blinks once every 15 seconds when a fix is found to conserve power. If you want to have an LED on all the time, we also provide the FIX signal out on a pin so you can put an external LED on.

Two features that really stand out about the MTK3333-based module is the external antenna functionality and the the built in data-logging capability. The module has a standard ceramic patch antenna that gives it -165 dB sensitivity, but when you want to have a bigger antenna, you can snap on any 3V active GPS antenna via the uFL connector. The module will automatically detect the active antenna and switch over! Most GPS antennas use SMA connectors so you may want to pick up one of our uFL to SMA adapters.

The other cool feature of the new MTK3333-based module (which we have tested with great success) is the built in datalogging ability. Since there is a microcontroller inside the module, with some empty FLASH memory, the newest firmware now allows sending commands to do internal logging to that FLASH. The only thing is that you do need to have the Flora mainboard send the "Start Logging" command. However, after that message is sent, the Flora can go to sleep and does not need to wake up to talk to the GPS anymore to reduce power consumption. The time, date, longitude, latitude, and height is logged every 15 seconds and only when there is a fix. The internal FLASH can store about 16 hours of data, it will automatically append data so you don't have to worry about accidentally losing data if power is lost. It is not possible to change what is logged and how often, as its hardcoded into the module but we found that this arrangement covers many of the most common GPS datalogging requirements.

Comes with one fully assembled and tested module. If you'd like to back up the RTC for faster fix-recovery, pick up a sewable CR2032 holder & CR2032 battery and sew it so the side connects to the VBAT pad and the - side connects to ground

TECHNICAL DETAILS

Satellites: 33 tracking, 99 searching
Patch Antenna Size: 15mm x 15mm x 4mm
Update rate: 1 to 10 Hz
Position Accuracy: < 3 meters (all GPS technology has about 3m accuracy)
Velocity Accuracy: 0.1 meters/s
Warm/cold start: 34 seconds
Acquisition sensitivity: -145 dBm
Tracking sensitivity: -165 dBm
Maximum Velocity: 515m/s
Vin range: 3.0-4.3 VDC
MTK3333 Operating current: 25mA tracking, 20 mA current draw during navigation
Output: NMEA 0183, 9600 baud default
DGPS/WAAS/EGNOS supported
AGPS support (Offline mode : EPO valid up to 14 days )
Up to 210 PRN channels
Jammer detection and reduction
Multi-path detection and compensation

Revision History:

As of June 22, 2021 - The original GPS module is no longer available, so we've replaced it with a nearly-identical GPS module that has the same shape and performance. Some commands for querying the antenna have slightly changed.
Oct 7, 2014 - we now sell it with firmware v5516 which fixes some altitude calculations (more accuracy)

Breakout board details:

Weight: 5.43g
Dimensions: 30.5mm diameter x 5.98mm thick / 1.2" diameter x 0.24" thick
EagleCAD PCB files, datasheets, Fritzing object and more in the tutorial!
