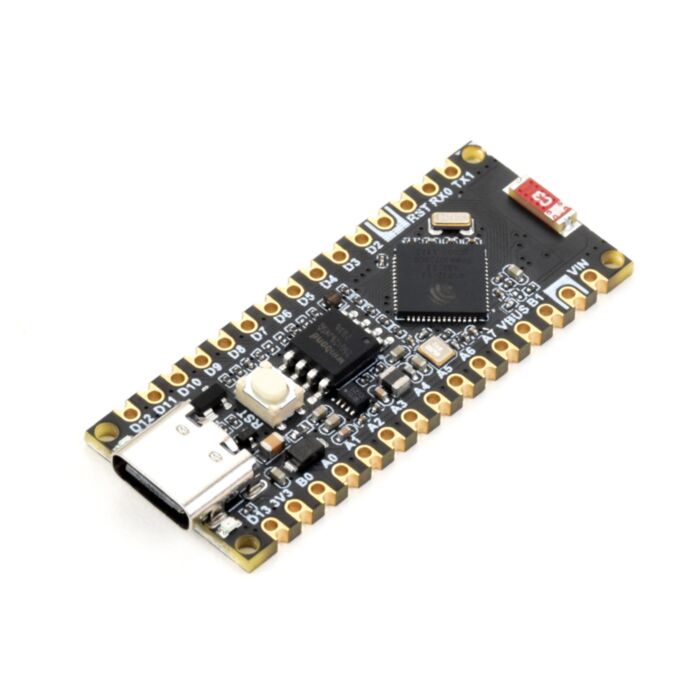

ESP32-S3-Nano Development Board, Based on ESP32-S3R8, Compatible with Arduino Nano ESP32

SKU: WS-26752 Brand: Waveshare

Retired Product

Replaced by: ESP32-S3
This product has been replaced by: ESP32-S3
This product is no longer available. This page is only for reference.
ESP32-S3-Nano Development Board, Based on ESP32-S3R8, Compatible with Arduino Nano ESP32ESP32-S3-Nano Development Board

Enhanced version of Arduino Nano ESP32

Based on ESP32-S3R8, Compatible with Arduino Nano ESP32

Version Options

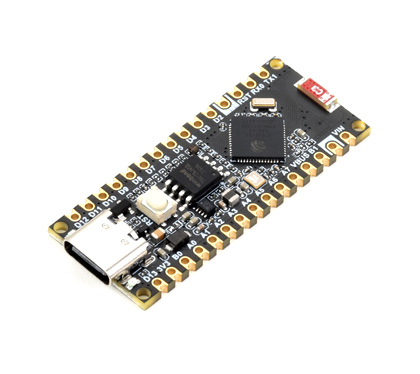

ESP32-S3-Nano

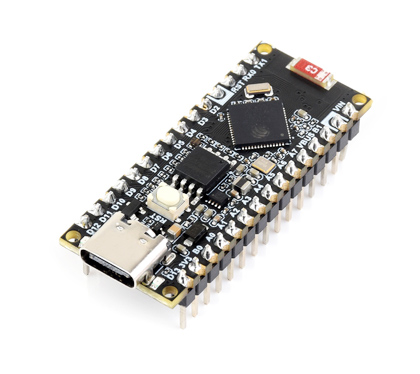

ESP32-S3-Nano-M with pre-soldered header (black)

Board specifications

TheESP32-S3-NanoadoptsESP32-S3R8 chip and is compatible with Arduino Nano ESP32. It is compact in size and powerful, suitable for applications such as IoT and MicroPython, and easy to integrate into your projects.

  • Adopts ESP32-S3R8 chip with Xtensa® 32-bit LX7 dual-core processor, capable of running at 240 MHz
  • Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 16MB Flash memory
  • Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
  • Supports seamlessly switching between Arduino and MicroPython programming, more flexible usage
  • Compatible with Arduino IoT Cloud, allows monitoring and controlling your project from anywhere by using the Arduino IoT Cloud app
  • Supports HID, emulating Human Interface Devices such as keyboards or mice via USB port for easier interaction with PC
Product Parameters Comparison
ModelR7FA4 PLUS AR7FA4 PLUS BESP32-S3-Nano
MicrocontrollerR7FA4 (32-bit ARM Cortex-M4)R7FA4 (32-bit ARM Cortex-M4)ESP32-S3R8 (Dual-core 32-bit Xtensa LX7)
ESP32-S3FN8 (Dual-core 32-bit Xtensa LX7)
Clock FrequencyR7FA4: 48MHzR7FA4: 48MHzESP32-S3R8: 240MHz
ESP32-S3FN8: 240MHz
StorageR7FA4: 256kB Flash, 32kB RAMR7FA4: 256kB Flash, 32kB RAMESP32-S3R8: 384kB ROM, 512kB RAM, 16MB Flash, 8MB PSRAM
ESP32-S3FN8: 384kB ROM, 512kB RAM, 8MB Flash
Wireless communicationNone2.4GHz WiFi + Bluetooth LE
Operating voltageOptions for 5V/3.3V, support more shields3.3V
Power input6~24V6~21V
Reset buttonLateral, easier to use when connecting with shieldVertical
IO pin Output current8mA40mA
Digital pins1414
Analog pins68
DAC2None
PWM65
UART12
I2C11
SPI11
CAN1None
DC jackLow profile, shields won't be blocked anymore while connectingNone
power output headerProvides 5V OR 3.3V power output and common-grounding with other boardsNone
5V power outputUp to 2000mA Max, features higher driving capability1000mA Max
experimental boardSupport, solder pad is provided for DIY interfaces to connect with experimental boardSupport

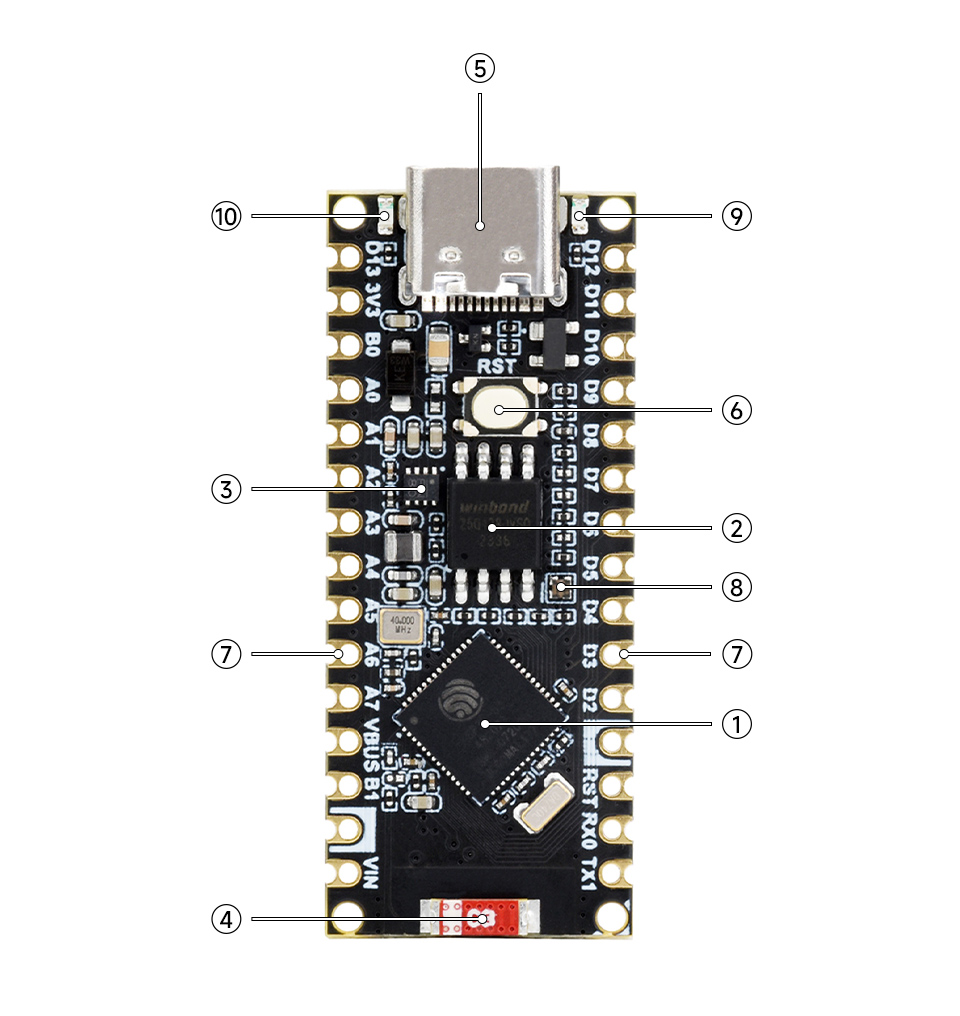

What's On Board
  1. ESP32-S3R8 dual-core processorup to 240 MHz running frequency
  2. W25Q128JVSIQ 16MB Flash, for program and data storage
  3. MP2322GQH 3.3V voltage regulator
  4. 2.4G ceramic antenna
  5. USB Type-C connectorfor downloading program and serial port debugging
  1. RST buttonfor resetting ESP32-S3R8
  2. Arduino Nano interfacecompatible with Arduino interface, adapting 2.54 pitch solder pad, can be directly connected to experimental board
  3. RGB indicator blinks and then turns off during power on or reset, supports programmable control after the board has booted up normally
  4. Power indicator
  5. User LED
Pinout definitionOutline dimensionsResources & ServicesWiki:www.waveshare.com/wiki/ESP32-S3-Nano

ESP32-S3-Nano

  1. ESP32-S3-Nano x1
  2. 40PIN male pinheader(black) x2
1ESP32-S3-Nano2

ESP32-S3-Nano-M

  1. ESP32-S3-Nano with pre-soldered header x1
ESP32-S3-Nano-M
