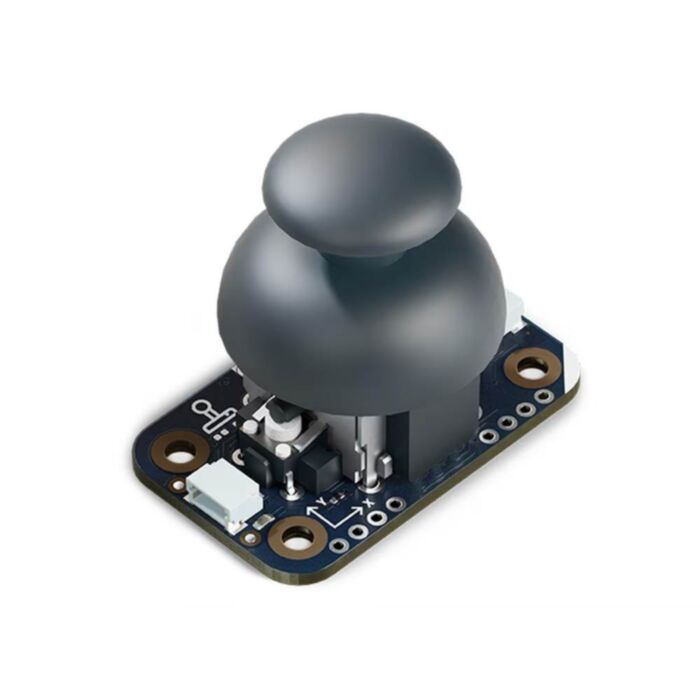

Modulino Joystick

SKU: ABX00135 Brand: Arduino

Add precise, intuitive motion control to your gaming, robotics, or interface projects.

$25.60 AUD, inc GST

$23.27 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 20 and Feb 24

Modulino® Joystick lets you easily navigate, steer, or control movement in any interactive setup with smooth analog precision.

The Modulino™ collection includes a variety of plug-and-play smart components that transform complex electronics into simple, interactive projects with minimal code and maximum creativity.
Discover a new generation of ready-to-use sensors and actuators that simplify any build. Designed for makers, educators, and professionals, Modulino nodes connect effortlessly via Qwiic cables and work together as a unified system thanks to daisy-chain technology.

Key benefits

Plug-and-play connectivity. Quickly connect Modulino nodes to Arduino UNO Q, Nesso N1, UNO R4 WiFi or Nano boards, using the Arduino Nano Connector Carrier for fast, reliable integration.
Robust, ready-to-use design. Preassembled, compact modules built to support demanding edge IoT projects.
Effortless expansion. Easily add new sensors, actuators, or controllers without redesigning your hardware.
Seamless Arduino ecosystem integration. Leverage Arduino software, Cloud tools, and community support to accelerate development.

Need help?

Comprehensive resources are available through dedicated Arduino Documentation, featuring tutorials and technical specifications for each Modulino®.

Technical Specifications

Board	Name	Modulino Joystick
SKU	ABX00135
Featured component	FJP10K-S1B10KD0N (STM32C011 for I2C communication)
I2C address	0x2C (address can change via software)
Connector	QWIIC	I2C connection via QWIIC
Power	QWIIC connector	3.3V
Pins	3.3V
Dimensions	Weight	4.4 g
Width	25.36 mm
Length	41 mm
Accessories included	QWIIC cable (5 cm)

Documentation

Arduino Documentation Arduino Documentation

FAQ

Can I connect multiple Modulino Joystick nodes to a single QWIIC connector?

Absolutely! You can connect several Modulino Joystick nodes to the same QWIIC bus. To do this, you'll need to assign a unique I²C address to each Modulino node. The Modulino library includes an example sketch called AddressChanger that simplifies this process.

Is a QWIIC cable included with the Modulino node?

Yes, each Modulino node is packaged with a 5 cm QWIIC cable, so you can get started right away.

Are the Modulino nodes compatible with other QWIIC and PiicoDev devices?

Yes, the Modulino nodes are designed to be compatible with other devices that adhere to the QWIIC standard and operate at 3.3V. Always double-check the voltage compatibility of any QWIIC devices you intend to use together.

What voltage do the Modulino nodes operate at?

The Modulino nodes are designed to operate at 3.3V. Ensure that your microcontroller or other QWIIC devices provide this voltage level to avoid damage.

Do I need any special libraries to use the Modulino nodes with Arduino?

Yes, you'll need to install the Modulino library either for Arduino language or Micropython, which provides functions and examples to easily interact with the nodes.
