7-Segment Serial Display - Blue

SKU: COM-11442 Brand: Sparkfun

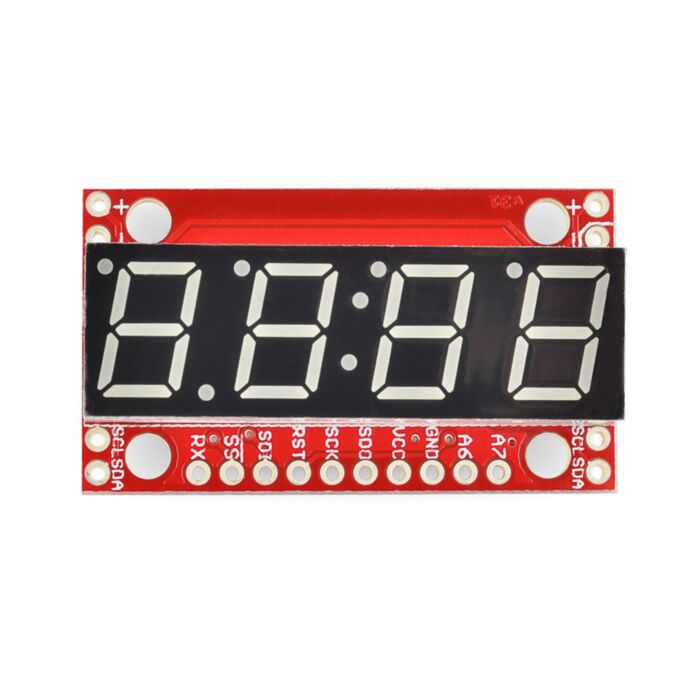

4-digit 7-segment displays are really neat little devices, it’s a shame that they can be so cumbersome to control. Well we’ve solved that problem by making them a little bit “smarter.” The 7-Segment Serial Display combines a classic 4-digit 7-segment display and an ATMega328 microcontroller allowing you to control every segment individually using only a few serial lines.

$25.20 AUD, inc GST

$22.91 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Dec 31

Quantity Discounts:

10-25 $22.22 (exc GST)
25+ $21.76 (exc GST)

4-digit 7-segment displays are really neat little devices, it's a shame that they can be so cumbersome to control. Well we've solved that problem by making them a little bit “smarter.” The 7-Segment Serial Display combines a classic 4-digit 7-segment display and an ATMega328 microcontroller allowing you to control every segment individually using only a few serial lines.

The Serial 7-Segment Display can be controlled in one of three ways: Serial TTL communication, SPI serial communication or I2C serial. You can even program it for stand-alone operation since the ATMega328 comes pre-loaded with the Arduino bootloader! There is also an FTDI header on board and we've provided a hardware profile for the Arduino IDE to make it even easier to program.

We've made some layout changes to this design as well which will make it easier to incorporate these into your project. We've moved the power and I2C pins to the sides of the board such that you can chain them together in order to display longer strings of digits. We've also added mounting holes to the boards so you can mount them on standoffs (no more hot glue!)

Dimensions: 41mm x 23mm (1.6in x 0.9in)

Features:

4 digit blue alpha-numeric display with TTL, SPI or I2C Serial Interface
Display numbers, most letters, and a few special characters
Individual control of decimal points, apostrophes, and colons
Selectable baud rate
Selectable brightness
Baud rate and brightness values retained in non-volatile memory
Individual segment control for each digit
