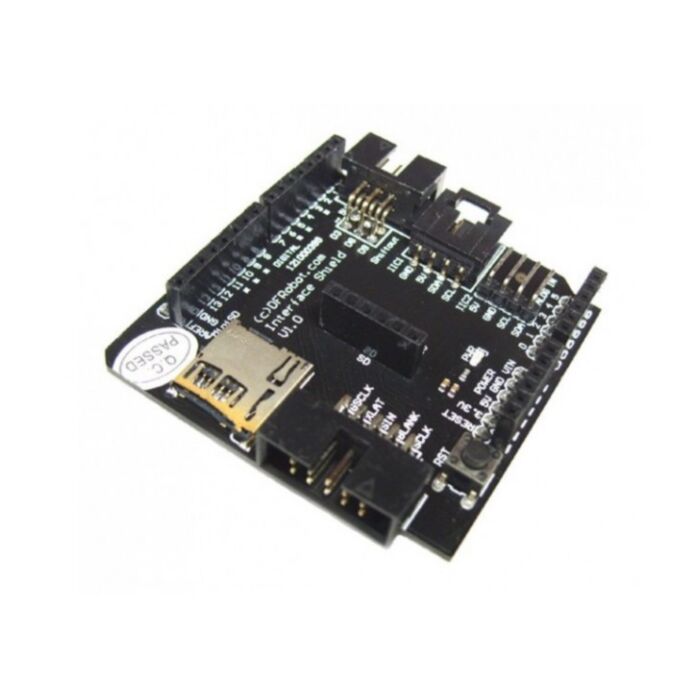

Interface Shield For Arduino

SKU: DFR0074

$21.07 AUD, inc GST

More Views

Interface Shield For Arduino
21.07 AUD

SKU: DFR0074

$21.07 AUD, inc GST
Ships today (delivered by Fri, 9th of Dec)
Shipping Offer

OR

Introduction

This interface shield supports multi-interfaces, SPI interface (directly connected Shiftout module, SPI LCD display module, SPI LED display module), IIC Interface (direct connects IIC lCD display module, IIC transfer IO module), Micro SD card interface (Micro SD card can be directly inserted), SD card storage module interface, TLC full-color LED controller module.

Specification

  • Multi-function expansion board
  • Compatible with Arduino
  • Supports SPI Interface, IIC interfaces, SD card, TLC5940

Documents

Compability

  • Arduino UNO
  • Arduino Duemilanove
  • Arduino Mega 1280/2560 (Not compatible)
