Dual Axis Digital Compass Module

SKU: 017-MB-SM15114 Brand: Sure Electronics

Retired Product

Search for an alternative
This product has been retired. It is no longer available, but this page has been kept for reference.

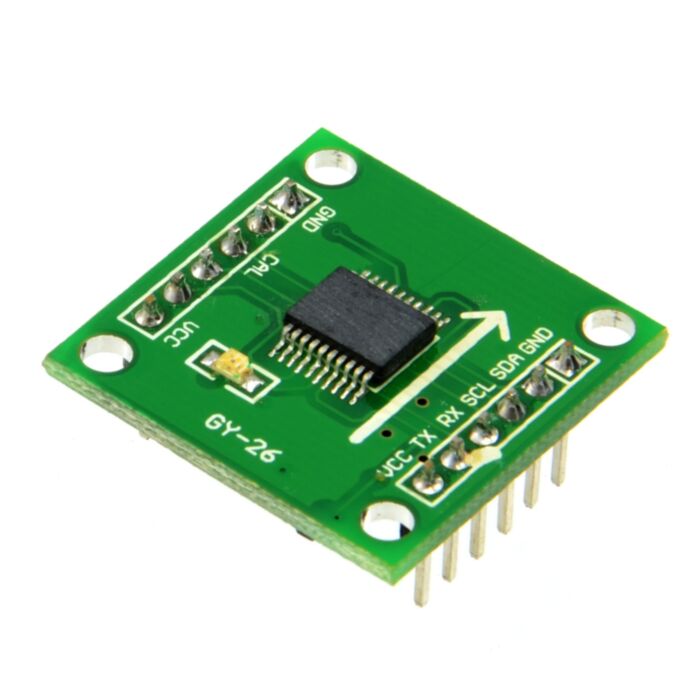

This is a low cost digital compass. The working principle is utilizing magneto resistive sensor sensing the Earth's magnetic field component, so as to get an azimuth angle.

Features:

  • Size: 26.00mm(L) * 26.00mm(W) * 11.60mm (H)
  • Light weight and high cost-effective
  • RS232 and IIC protocol
  • Baud rate: 9600bps
  • With stabile operation and high accuracy
  • Very low operating voltage (3 - 5V DC)
  • DC single supply operation
  • Continuous output and output when required
  • Advanced hard iron calibration
Specification
Value
Operating Voltage
DC 3V to 5V
Current Consumption
5V 15mA, 3V 8mA
Response Frequency
25Hz
Measuring Range
0 degrees to 360 degrees
Resolution
0.1 degree

Measuring Precision

1 degree

Operating Temperature

-20° to 85°
Storage Temperature
-40° to 125°


Applications:

  • Handheld electronic instrument
  • Robot orientation and position
  • Navigation system
  • Telescope position
  • Auto helm rudder
  • Antenna position
  • Automobile GPS navigation
  • Aero model position
