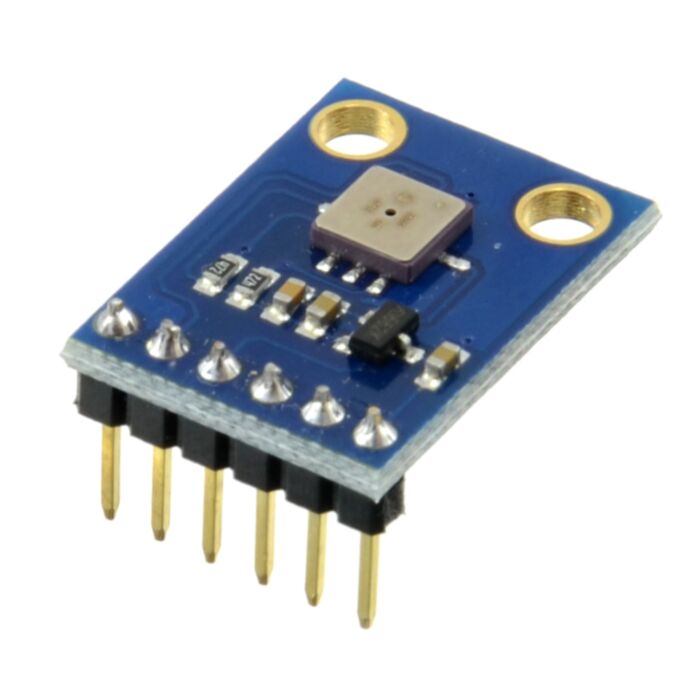

BMP085 I2C Digital Barometric Pressure Sensor Board / Barometer Sensor Module

SKU: CE05178

Retired Product

Search for an alternative
This product has been retired. It is no longer available, but this page has been kept for reference.

BMP085 is a type of pressure sensor with high precision and low energy consumption - Ideal for use in mobile devices. Its great performance allows for precision 0.03hPa resolution and it with very low power consumption (only 3uA). The BMP085 can be connected directly with a variety of microprocessors through I2C bus.

Features:

  • Atmospheric pressure module
  • AD converter is within the chip
  • Communication mode:IIC communication protocol
  • Chip used:BMP085
  • Power supply:3-5V
  • Pressure range: 300 - 1100hPa (at an altitude of 9000 meters to 500 meters)
  • Supply voltage: 1.8V - 3.6V ( VDDA ) 1.62V - 3.6V ( VDDD )
  • LCC8 package:ceramic leadless chip carrier(LCC)
  • Low consumption 5 μ A in standard mode
  • High accuracy:resolution ratio is 0.06hPa (0.5 meter) in low power consumption mode; 0.03hPa (0.25 meter) in high linear mode
  • Temperature output
  • 12C interface
  • Temperature compensation
  • Leadless,accord with RoHS standard
  • MSL 1
  • Response time:7.5ms
  • Standby current: 0.1 μ A
  • No need for external clock circuit
