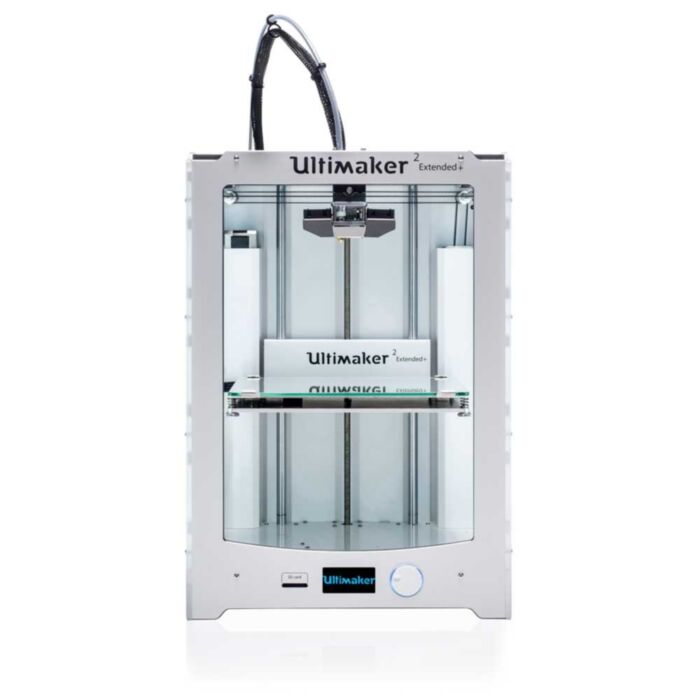

Ultimaker 2 Extended+ 3D Printer

SKU: CE06225 Brand: Ultimaker

Retired Product

Replaced by: CE7420

This product has been replaced by: CE7420
This product is no longer available. This page is only for reference.

Ultimaker 2 Extended+ is the latest version of the award-winning Ultimaker 2 Extended 3D printer. Ultimaker 2 Extended+ shares all the excellent features of Ultimaker 2+, and has an even bigger build volume. It features powerful innovations which are the results of Ultimaker's advanced understanding of 3D printing technology, and the successful collaborations between Ultimaker and its large and supportive user community. The newest upgrades make this already impressive 3D printer even better and easier to use, making it one of best 3D printer available right now.

Features

Geared Feeder

Innovative and more powerful feeder design improves print quality and reliability, as well as enabling user to change filament and choose the optimum tension setting for the filament with ease

Swappable Nozzle

Clever print head design allows the print head nozzle to be swapped easily and fast, the user can choose the preferred nozzle to achieve either highly detailed or extremely fast prints

Optimized Airflow

Newly re-designed fan caps will channel airflow precisely to where it should be to enhance the print results

Specifications

Layer resolution: 600 to 20 micron
Build volume: 22.3(X) x 22.3(Y) x 30.5(Z) cm *(refer to the note below on build volume)
Position precision : X 12.5 / Y 12.5 / Z 5 micron
Print head travel speed: 30 - 300 mm/s
Recommended filament diameter: 2.85 mm
Nozzle diameters (swappable nozzle): 0.25, 0.4, 0.6, 0.8 mm
Stand-alone SD-card printing
Heated bed operating temperature: 50° - 100°C
Warranty:12 Months*

*Note on build volume: The X and Y dimensions specified are representative of the maximum size you can print in the X and Y directions. It is not possible to print a cube of the specified build volume as you have to take into account clearances for the four retainer clips of the glass print bed. Other factors/ software settings including the use of skirt and brim will also reduce the overall build volume. Please kindly contact us if you have any questions regarding the build volume.

Included

SD Card
Glue Stick
Lubrication Grease (Download Magnalube Safety Data Sheet)
Hex Wrenches
USB Cable
Swappable Nozzles (Nozzle Diameters 0.25, 0.4, 0.6, 0.8 mm)
1 Spool Ultimaker PLA
Cura Software
Ultimaker App
Calibration Card (For Build plate Leveling)

* PTFE Coupler and Print Head Nozzle are consumable parts that will wear over time and are not covered under warranty. The frequency of replacement required for the PTFE Coupler or the Print Head Nozzle depends on the amount of usage and the types of filament used. Please kindly contact us if you need more information.

Please refer to Imaginables Safety and Compliance page for more information about the product.

Documentation

Specifications Sheet
