|Bipolar stepper motor wires are terminated with bare leads.|
|Bipolar stepper motor wiring diagram.|

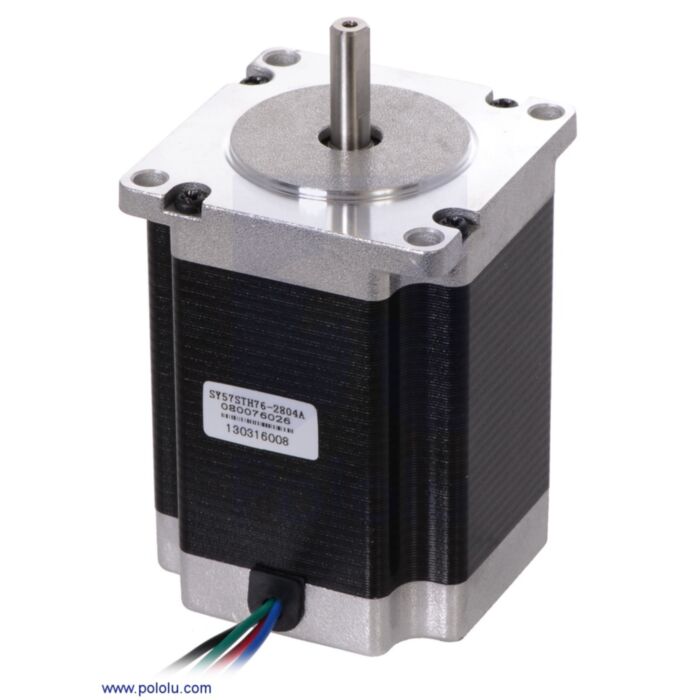

This high-torque hybrid bipolar stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 2.8 A at 3.2 V, allowing for a holding torque of 19 kg-cm (270 oz-in). The motor has four color-coded wires terminated with bare leads: black and green connect to one coil; red and blue connect to the other. It can be controlled by a pair of suitable H-bridges (one for each coil), but Pololu recommend using a bipolar stepper motor driver.
Pololu's 1/4″ universal mounting hub can be used to mount objects on the stepper motor’s 1/4″-diameter output shaft.
- Size: 56.4 mm square × 76 mm, not including the shaft (NEMA 23)
- Weight: 1 kg (35 oz)
- Shaft diameter: 6.35 mm (0.25″) “D”
- Steps per revolution: 200
- Current rating: 2.8 A per coil
- Voltage rating: 3.2 V
- Resistance: 1.13 Ω per coil
- Holding torque: 19 kg-cm (270 oz-in)
- Inductance: 3.6 mH per coil
- Lead length: 30 cm (12″)
More specifications are available in the datasheet (49k pdf).
The following diagram shows the stepper motor dimensions in mm. The output D-shaft has a 0.25″ (6.35 mm) diameter with a section that is flattened by 0.5 mm. This shaft works with Pololu's 1/4″ universal mounting hub.
|The inside of a bipolar stepper motor.|
Stepper Motor Applications
Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:
- CNC machines
- 3D printer/prototyping machines (e.g. RepRap)
- Laser cutters
- Pick and place machines
- Linear actuators
- Hard drives
|Pololu’s assortment of stepper motors.|
Note: This stepper motor is SOYO part number SY57STH76-2804A.
