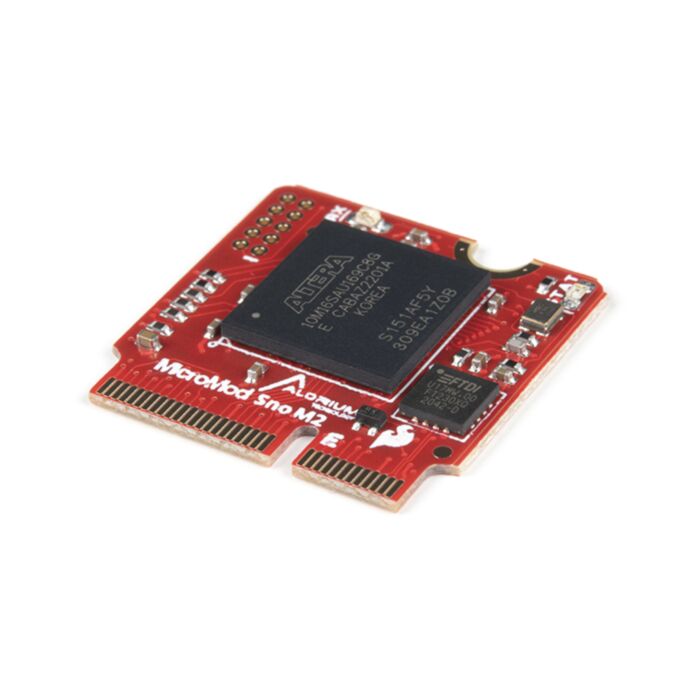

SparkFun MicroMod Alorium Sno M2 Processor

SKU: DEV-18030

The SparkFun MicroMod Alorium Sno Processor features the Sno System on Module (SoM) adapted to the MicroMod M.2 processor form factor...

$96.45 AUD, inc GST

$87.68 AUD, exc GST

Available with a lead time
Expect dispatch between May 09 and May 12

Quantity Discounts:

6+ $85.05 (exc GST)
12+ $83.30 (exc GST)

The SparkFun MicroMod Alorium Sno M2 Processor features the Sno System on Module (SoM) adapted to the MicroMod M.2 processor form factor. Sno's FPGA provides a reconfigurable hardware platform that hosts an 8-bit AVR instruction set, compatible with the ATmega328, making Sno fully compatible with the Arduino IDE. Sno SoM has a compact footprint, making it ideal for space-constrained applications and an obvious addition to our MicroMod form factor for prototyping.

Alorium Technology provides a library of custom logic called Xcelerator Blocks (XBs) through the Arduino IDE that accelerates specific functionalities that are slow, problematic, or even impossible for an 8-bit microcontroller. This library includes XBs such as Servo Control, Quadrature, Floating Point Math, NeoPixel, and Enhanced Analog-to-Digital Converter. Alorium also notes a XB roadmap where future XBs will be implemented based on feedback from early adopters and new potential customers.

For advanced users, there is a JTAG footprint on the board allowing a JTAG programmer to talk to the FPGA directly. The microcontroller core has been designed to be easily extendable, and Alorium Technology has developed a support model for users who want to create their own XBs and interface to the on-chip microcontroller.

MicroMod is a modular interface ecosystem that connects a microcontroller “processor board” to various “carrier board” peripherals. Utilizing the M.2 standard, the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!

Get Started with the MicroMod Alorium Sno Processor Guide

Alorium Sno Processor General Features:

Intel® MAX® 10 FPGA (16K LEs)
- 10M16SAU169C8G
Programmable with Arduino IDE
Embedded 8-bit AVR instruction set compatible microcontroller (ATmega328 compatible)
Configurable with custom Xcelerator Blocks (XBs) on the FPGA
Programming interface: USB Serial
Operating voltage: 3.3V
Clock Speed 16/32MHz

Digital I/O

32 Dedicated Digital Pins
6 Shared Digital with Analog Pins
3.3V Inputs
3.3V Outputs

Analog Inputs

6 Analog Pins
3.3V Analog Reference
ADC Performance: 1MHz
Resolution: 12-bit sustained
Sample Rate: 254k samples/second

Memory

Program FLASH 32KB
Data memory SRAM: 2KB

Specific Peripherals available on MicroMod Alorium Sno M2 Processor:

JTAG footprint for direct FPGA programming
M.2 keyed interface for integration with SparkFun MicroMod carrier boards

Documents

MicroMod Alorium Sno Processor Documentation:

MicroMod Documentation:

SparkFun MicroMod Interface v1.0 - Pinout
SparkFun MicroMod Interface v1.0 - Pin Descriptions
Getting Started with MicroMod
Designing with MicroMod
MicroMod Info Page
MicroMod Forums
SparkFun Eagle Libraries contains example footprints for the M.2 connector and SMD standoff
M.2 MicroMod Connector Datasheet
MicroMod Reflowable Standoff Datasheet

Alorium Sno Documentation:
