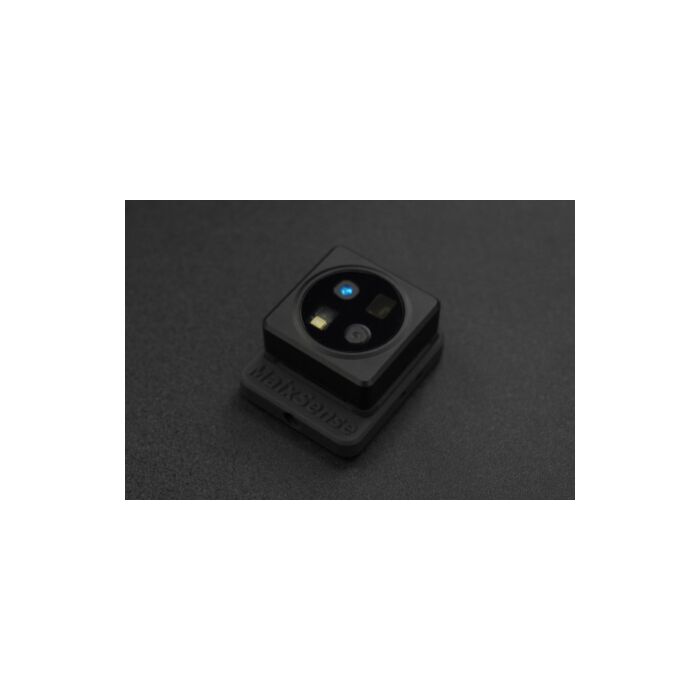

RGB-D 3D ToF Sensor Camera (Supports ROS1 and ROS2)

Skip to the beginning of the images gallery

RGB-D 3D ToF Sensor Camera (Supports ROS1 and ROS2)

SKU: SEN0583 Brand: DFRobot

Develop innovative applications like 3D facial recognition and SLAM mapping using the acquired point cloud data. Take the projects to new heights with the...

$264.95 AUD, inc GST

$240.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

3-5 $233.64 (exc GST)
5+ $228.82 (exc GST)

The RGB-D camera is a 3D time-of-flight camera module with RGB capabilities, boasting a resolution of 320×240 and an inertial measurement unit (IMU). It effortlessly acquires all RGB-D data through a USB cable and, when paired with a web-based interface, allows for seamless previewing of depth maps, point cloud data, and real-time colorful 3D rendering. Linux compatibility works out-of-the-box, without the need for additional drivers. It supports both ROS1 and ROS2, offering open integration packages and sample codes. Additionally, a Python SDK is provided, enabling applications such as 3D facial recognition, robotic arm grasping, and SLAM mapping to be developed using the acquired point cloud data.

An integrated, cost-effective, and user-friendly 3D Time-of-Flight (ToF) solution designed specifically for Internet of Things (IoT) applications. This solution encompasses various algorithms that enable distance measurement, multi-zone body positioning sensing, posture detection, posture control, and essential calibration functionalities. These features find wide-ranging applications in numerous fields, including white goods, laser televisions, smart projectors, intelligent lighting, smart parking systems, and home automation facilities.

Interfaces of the RGB-D camera

What is Time-of-Flight (ToF) technology and GB-D 3D ToF Sensor Camera?

Time-of-Flight technology is a method used for distance measurement. It involves calculating the distance between an emitter and a reflector by measuring the "flight time" of signals such as ultrasonic waves, microwaves, or light.

RGB-D 3D ToF Sensor Camera is a type of camera that combines RGB (Red, Green, Blue) and depth sensors. It is capable of providing both RGB images and depth images. RGB images capture the color information of the scene, while depth images provide the depth information of objects in the scene relative to the camera.ToF sensors are employed for this purpose, with the most commonly used ones being infrared or laser rangefinders. Variations in distance between objects are captured by the module, and these differences are displayed as cooler or warmer colors. The color tones shift with the mapping of distance, with warmer tones (orange-red) representing closer distances and cooler tones (blue) indicating greater distances.

Time-of-Flight (ToF) technology of the RGB-D camera

Features

High-resolution RGB-D imaging: Detailed depth maps and 3D rendering.

Seamless compatibility: Linux, ROS1, and ROS2 support.

Applications

SLAM and robotic navigation

Surveillance & security inspection

People counting & tailgate detection

VR/AR & gesture recognition

Autopilot and AGV obstacle avoidance

3D modeling

Dimensions measurement

Liveness Detection & facial recognition

Specification

Processor: Cortex [email protected] with 0.4T NPU

Storage: 128MB RAM &128MB ROM

Camera Supply Voltage: 5V/0.5A

Detection distance: 0.2~2m

Resolution Depth: 320 x 240@30fps RGB: 800×600@30fps

Interface: UART(1.25mm) USB2.0(Type-C)

Display: Web browser: Depth/IR/RGB/Point cloud

Data channel: USB Virtual network: Web service

ROS: Support ROS1/ROS2

FOV TOF 55°(H) x 72°(V) TRGB 78°(H)×98°(V)

SDK: Python SDK and Sample code

Operating Temperature: -20°C ~ +50°C

Dimension: 36*36*13.5 mm

Weight: About 124g

Documents

Product wiki

DataSheet

Ethernet RNDIS Drivers

Install RNDIS Driver Guide

Parts List

Serial Cable 1.25mm to 2.54mm 4-Pin × 1

USB Type-C × 1

Tripod Stand ×1

RGB-D Sensor Camera ×1

Cooling Fan ×1
