MikroElektronika RS485 Click 3.3V

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

RS485 click 3.3V carries the SN65HVD12 half-duplex, RS-485 transceiver from Texas Instruments. It is designed for balanced data transmission and complies with EIA standards RS-485 and RS-422. The click is designed to run on a 3.3V power supply. RS485 5V click communicates with the target microcontroller over UART interface, with additional functionality provided by the PWM pin on the mikroBUS™ line.

SN65HVD12 features

Internal ESD protection circuits protect the transceiver bus terminals against ±16-kV Human Body Model (HBM) electrostatic discharges and ±4-kV electrical fast transients (EFT).

The SN65HVD1x half-duplex family provides internal biasing of the receiver input thresholds for open-circuit, bus-idle, or short-circuit failsafe conditions, and a typical receiver hysteresis of 35 mV

How the click works

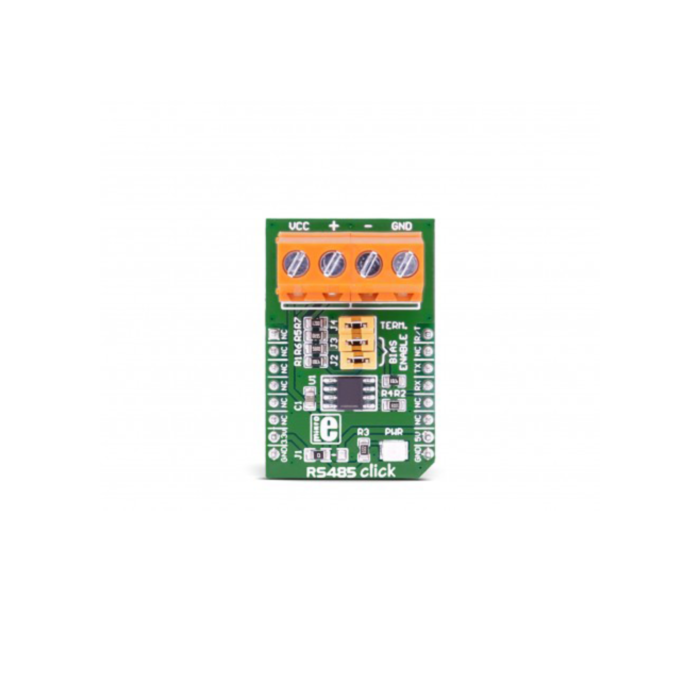

There are four screw terminals on the board Those marked with “+” and “-” are RS485 differential high and differential low communication lines. We added two more terminals for VCC and GND reference if needed for further interfacing. Communication with the board is done using simple UART interface.

Specifications

Type: RS485
Applications: Board is suitable for Low power RS-485 systems, DTE/DCE interface Packet switching, Local area networks (LNAs), Data concentration, Data multiplexers, Integrated services digital network (ISDN) and more
On-board modules: SN65HVD12 differential line transceiver
Key Features: On-board Bias and Termination resistors with related jumpers. Simple UART communication interface
Key Benefits: Meets or Exceeds the Requirements of ANSI TIA/EIA-485-A
Interface: GPIO,UART
Input Voltage: 3.3V
Compatibility: mikroBUS
Click board size: M (42.9 x 25.4 mm)

Pinout diagram

This table shows how the pinout on RS485 click 3.3V corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

INSERT IMAGE1 HERE

Jumpers and settings

INSERT IMAGE2 HERE

If the board is the first node of the RS485 network, all three jumpers J2-J4 should be placed. If the board is a node in the middle, all jumpers should be removed. If the board is the last node of the RS485 network, place only J4 termination jumper.

Dwonloads

RS485 Click 3.3V Schematic
