Serial Bus Servo Driver Board (9~12.6V DC, Control up to 253 Servos)

SKU: DRI0057 Brand: DFRobot

Easily control up to 253 bus servos for your robotic arm or hexapod project. The driver board with USB & UART simplifies servo control and reads feedback...

$9.20 AUD, inc GST

$8.36 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 27 and Dec 01

The Serial Bus Servo Driver Board is a compact, high-performance controller engineered to manage up to 253 ST/SC series bus servos for complex robotic systems. Featuring both USB and UART communication interfaces, it acts as a central bridge between a host controller and the servo network, operating on a 9-12.6V DC power supply. Its core strength lies in not only sending commands but also reading real-time feedback on each servo's angle, load, and voltage. This complete integration of power management and bi-directional control circuitry streamlines the development of advanced robotics, from multi-axis robotic arms to sophisticated legged robots.

Overview of Serial Bus Servo Driver Board

Figure: Overview of Serial Bus Servo Driver Board

High-Capacity Servo Control

This servo driver board unlocks the potential for large-scale robotic projects by supporting the simultaneous control of up to 253 ST/SC series bus servos. This capability allows for the creation of highly articulated and intricate mechanisms, far beyond the limits of traditional PWM servo controllers, making it perfect for systems with a high degree of freedom.

Flexible Dual Communication Interfaces

Equipped with both USB and UART interfaces, the bus servo controller offers exceptional versatility. The USB port provides a straightforward plug-and-play connection to a host computer, ideal for rapid prototyping, debugging, and direct control via software. The UART interface allows for seamless integration with a wide range of microcontrollers and embedded systems, providing a reliable communication link for deployed applications.

Figure: Serial Bus Servo Driver Board equipped with USB and UART interfaces

Real-Time Data Feedback

A key advantage of this serial bus Servo driver board is its support for bi-directional communication. It can query each servo individually to read back critical operational data, including current angle, operational load, internal voltage, and working mode. This feedback is essential for creating sophisticated, closed-loop control systems where precision, error detection, and dynamic adjustments are required.

Simplified and Stable Power Integration

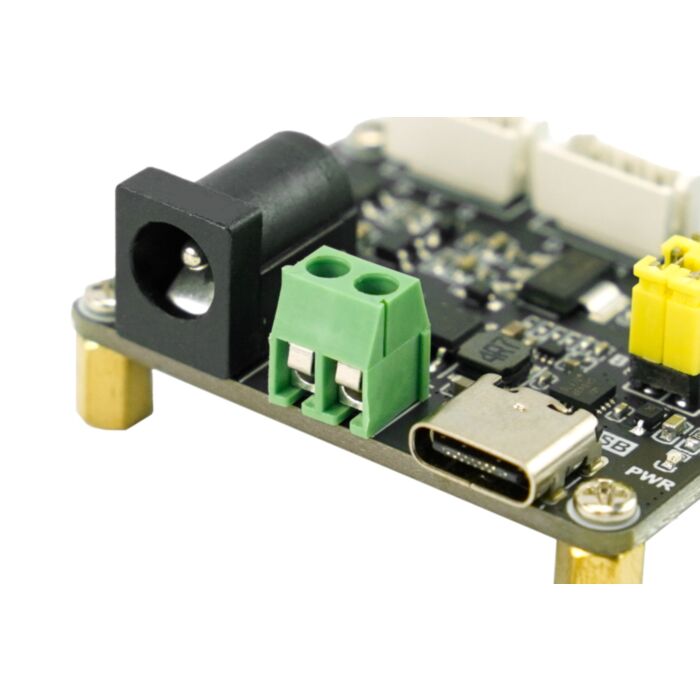

The serial bus servo driver board features both a DC 5.5x2.1mm socket and a terminal block for power input, accommodating a 9-12.6V supply that matches the operating voltage of the servos. This dual-input design provides flexibility for both prototyping and permanent installations, while the integrated stable control circuitry ensures reliable power delivery for smooth and consistent servo operation.

Advanced Servo Configuration

Beyond simple rotational control, this driver board allows for advanced configuration of connected servos. It provides the functionality to programmatically set unique IDs for each servo on the bus and to switch their operational state between standard servo mode (positional control) and motor mode (continuous rotation), offering greater customization for diverse mechanical designs.

Wiring Diagram of Serial Bus Servo Driver Board with Host Computer

Figure: Wiring Diagram of Serial Bus Servo Driver Board with Host Computer

Specification

Servo Compatibility: ST & SC Series Serial Bus Servos

Max Servo Count: 253

Input Voltage: DC 9-12.6V (Must match servo voltage)

Communication: USB & UART

Power Connectors: DC 5.5x2.1mm Jack, 2-pin Terminal Block

Key Functions: ID Programming, Mode Switching (Servo/Motor), Real-time Data Readback (Angle, Load, Voltage)

Dimensions: 42 x 33mm

Documents

Schematic

3D Model
