Adafruit 1.14" 240x135 Color Newxie TFT Display - ST7789

SKU: ADA6113 Brand: Adafruit

Say hello to our new Newxie 1.14" 240x135 Color TFT Display Boards – we think it's T-F-Terrific! It's the size of your thumbnail, with...

Special Price $15.52 AUD, inc GST

Regular Price $20.65 AUD, inc GST

$14.11 AUD, exc GST

Special pricing ends 14 July 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Apr 28 and May 02

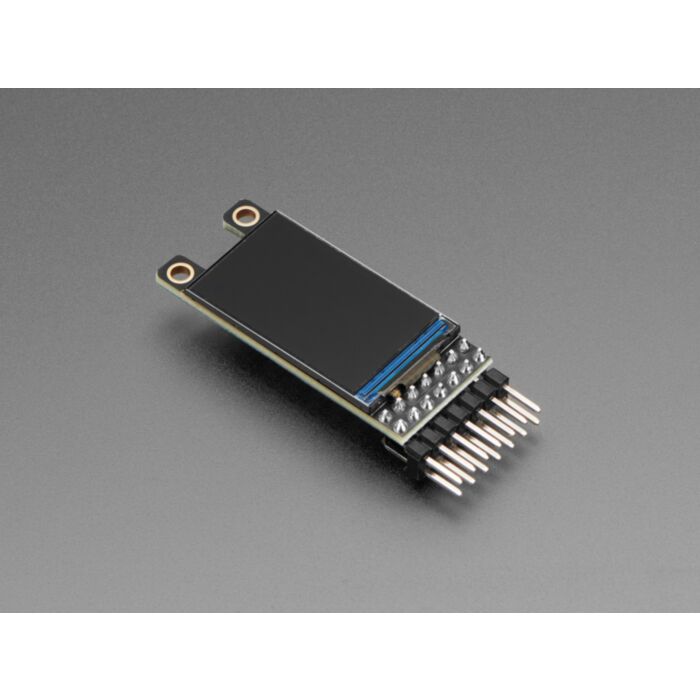

Say hello to Adafruit's new Newxie 1.14" 240x135 Color TFT Display Boards – we think it's T-F-Terrific! It's the size of your thumbnail, with glorious 240x135 high res pixel color. This very very small display is only 1.14" diagonal, packed with RGB pixels, for making very small high-density displays. And this breakout board is designed for compact 'stacking' on a 0.1" grid - with a vertical arrangement that mimics old-school nixie tubes.

The display uses plain SPI (Clock, Data In, Chip Select, Data/Command) to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available! The 1.14" display has 240x135 16-bit full color pixels and is an IPS display, so the color looks great up to 80 degrees off axis in any direction. The TFT driver (ST7789) is very similar to the popular ST7735, and Adafruit's Arduino library supports it well.

It's essentially the same display & breakout as Adafruit's 1.14" TFT breakout but minimized: Adafruit don't include a MicroSD card or reset line. That means Adafruit have only 7 pins required to control the display and backlight. Since the display itself is 0.8" wide, it makes for a perfect fit. Adafruit pre-soldered on 2x7 right-angle headers to make it easy to design a stand-up display, both rows are the same contact - Adafruit just use dual row for better mechanical stability and so its easier to get them nice and straight.

Adafruit's breakout has the TFT display pre-attached, as well as a ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic such as Arduino compatible, ESP32, RP2040 or Raspberry Pi computer.

Of course, Adafruit wouldn't just leave you with a datasheet and a "good luck!" - Adafruit have written a full open source graphics library that can draw pixels, lines, rectangles, circles, text and bitmaps as well as example code and a wiring tutorial, Adafruit also have CircuitPython/Python support for the 1.14" TFT with ST7789.

Technical Details
