A206 Carrier Board for Jetson Nano/Xavier NX with compact function design and same size of NVIDIA® Jetson Xavier™ NX carrier board
Out of Stock
Sign up to get notified when it's available to order.
Restrictions apply to this equipment as it uses button/coin cell batteries:
- The equipment is intended to be used in trades, professions or industries
- The equipment is not intended for sale to the general public
- The equipment is not intended to be used where children are present
- You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
- You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries
A declaration of use will need to be submitted during checkout.
Note
The carrier board is specially designed for working with Jetson Nano/Xavier NX module and we will not include NVIDIA Jetson nano / Xavier NX inside.
When using Jetson Nano, the wifi module cannot work with SSD together.
The 3V RTC battery will not include.
Features
- USB 2.0: Micro B Connector
USB 3.1: Type A Stacked Connectors
RTC back-up coin-cell retainer
M.2 Key E Socket & M.2 Key M Socket
HDMI / DP: HDMI Type A and DisplayPort Stacked Connector
Gigabit Ethernet: RJ45 Connector

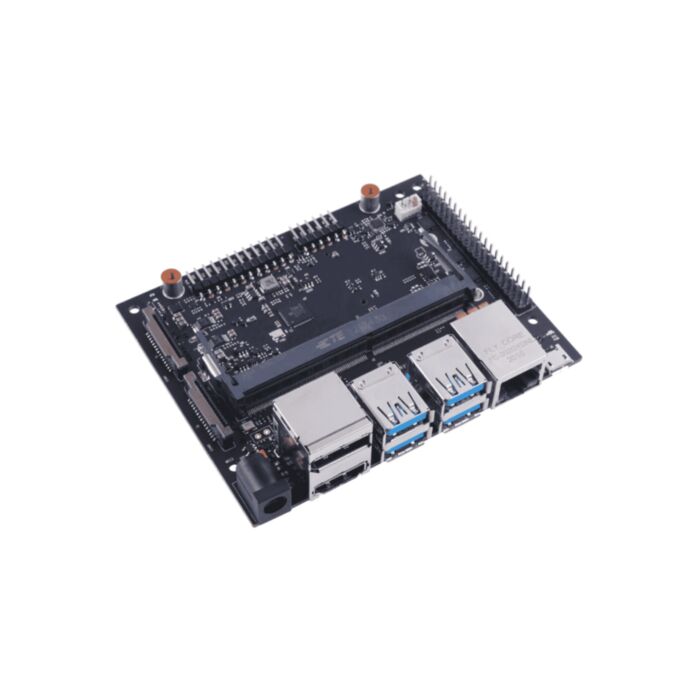

A206 is a high-performance, interface rich NVIDIA Jetson Nano / Xavier NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.0, M.2 key E wifi / BT, M.2 key M, CSI camera, RS232, CAN, PIO, I2C, I2S fans and other rich peripheral interfaces. It has the same functional design and size with the carrier board of NVIDIA® Jetson Xavier™ NX DEVELOPER KIT.
Basically, it can works with an NVIDIA Jetson Nano or an NVIDIA Xavier NX module to achieve graphic AI applications. To be more specific, with the NVIDIA Jetson Nan/Xavier NX Module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. With its multiple camera connectors, it is suitable for complicate AI graphical application such as Automated Optical Inspection, In Video Action, Robot control, Drone, etc. Overall, A206 is ideal for software development within the Linux environment. Standard connectors are used to access Jetson Xavier NX features and interfaces, enabling a highly flexible and extensible development platform.
Application
- Industrial Automation
- Robotics
- Healthcare
- Computer Vision
- Education
Specifications
Connector | Description |
HDMI Port | 2*HDMI Right Angle Vertical Connector |
USB 3.0 Type A | 4*USB 3.0 Type A Connector |
NVIDIA Gigabit Ethernet | 1*RJ45 Gigabit Ethernet Connector (10/100/1000) |
DC Power | 1*DC Input Power TE Connector |
FAN Connect | 1*Picoblade Header |
M.2 KEY E | 1*M.2 Key E Connectivity Slot (75-pin) |
CSI Camera Connect | 2*CSI Camera (15 pos, 1mm pitch) |
Multifunctional port | 2.0 Pitch 40 PIN |
3V Lithium Battery | 1*3V backup battery |
M.2 KEY M | 1*M.2 Key M Slot (75-pin) |
NVIDIA Jetson Nano/NX connector | 1*Jetson Xavier NX Conn. (SODIMM, 260-pin) |
CAN | 1*CAN Bus Header (1x4, 2.54mm pitch, RA) |
Button Header | 1*Button Header (1x12, 2.54mm pitch, RA) |
USB Micro Type B | 1*USB Micro B, RA Female |
RTC | 1*RTC Back-up Coin Cell Socket (CR1225) |
Comparison Chart
Feature | A206 carrier board for NVIDIA® Jetson™ Nano/NX | ||
Module Compatibility | NVIDIA® Jetson™ Nano/NX | NVIDIA® Jetson™ Nano/NX | NVIDIA® Jetson™ Nano/NX |
PCB Size / Overall Size | 87mm*52mm | 170mm*100mm | 100mm*80mm |
Display | 1*HDMI | 2*HDMI | 2*HDMI |
CSI Camera | 1*CSI | 6*CSI | 2*CSI |
Ethernet | 1x Gigabit Ethernet (10/100/1000M) | 2x Gigabit Ethernet (10/100/1000M) | 1x Gigabit Ethernet (10/100/1000M) |
USB | 2* USB 3.0 Type A (Integrated USB 2.0);1* USB Micro B(Not support power input) | 4* USB 3.0 Type A (Integrated USB 2.0);1* USB 2.0 Type C(Support OTG) | 4* USB 3.0 Type A (Integrated USB 2.0);1* USB Micro B(Not support power input) |
SATA | \ | 5 SATA | \ |
M.2 Key M | 1*M.2 Key M | \ | 1*M.2 Key M |
M.2 Key E | 1*M.2 Key E | 1*M.2 Key E | 1*M.2 Key E |
TF_Card | 1* TF_Card | 1* TF_Card | \ |
USB WIFI Mode | \ | 1* Standard USB WIFI Mode(4 pin interface) | \ |
Audio | \ | 1* Audio Jack;2* Microphone interface;2* Speaker interface | \ |
SPI Bus | 1* SPI Bus(+3.3V Level) | 1* SPI Bus(+3.3V Level) | 1* SPI Bus(+3.3V Level) |
FAN | 1* FAN(5V PWM) | 2* Fan(12V/5V);1* FAN(5V PWM) | 1* FAN(5V PWM) |
CAN | 1* CAN | 1* CAN | 1* CAN |
Multifunctional port | 1* 40-Pin | 1* 40-Pin | 1* 40-Pin |
RTC | Battery included | Battery not included | Battery not included |
Power Requirements | DC 15V/3A | DC 19V/4.74A (90W MAX) | DC 15V/3A |
Operating Temperature | -25° to +80° | -25° to +80° | -25° to +80° |
Hardware Overview
Part List
1 x A206 Carrier Board
1 x Power Adapter 15V/3A
Documentations
Document
Note
A206 has nearly the same design with NVIDIA Jetson Xavier NX Developer Kit Carrier Board, open the link and login to get what you need.
