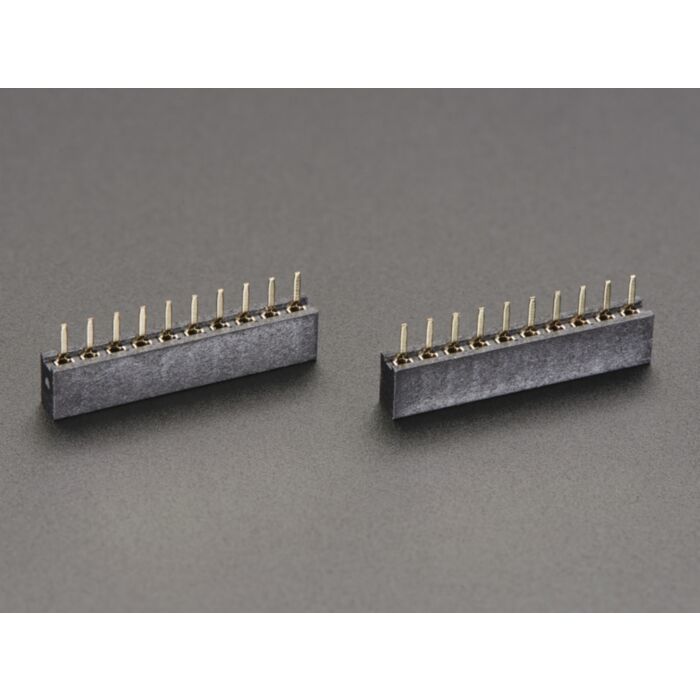

2mm 10 pin Socket Headers (for XBee) - Pack of 2

SKU: ADA366

$1.38 AUD, inc GST
$1.25 AUD, exc GST

More Views

2mm 10 pin Socket Headers (for XBee) - Pack of 2
1.38 AUD

SKU: ADA366

$1.38 AUD, inc GST
$1.25 AUD, exc GST
In stock, ships same business day if ordered before 2PM
Delivered by Thu, 21st of Dec
Shipping Offer

XBees are so cute and tiny but if you're using them in a circuit you'll be annoyed to find that your classic 0.1" headers don't fit them! That's because they use 2mm spacing instead of 2.54mm spacing. That's why you need special sockets like these ones!

As of Tuesday, June 16th, 2015 Adafruit are selling two sockets together instead of just one!

These sockets have 10 pins, spaced 2mm apart. Check the datasheet for a detailed diagram. You can find a footprint for the XBee that works with this connector in Adafruit's Eagle Library (its called XBEE).
