STSPIN820 Stepper Motor Driver Carrier (Header Pins Soldered)

SKU: POLOLU-2879 Brand: Pololu

This version of our STSPIN820 Stepper Motor Driver Carrier ships with male header pins installed, so no soldering is required to use it with an...

$35.85 AUD, inc GST

$32.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $31.61 (exc GST)
25+ $30.96 (exc GST)

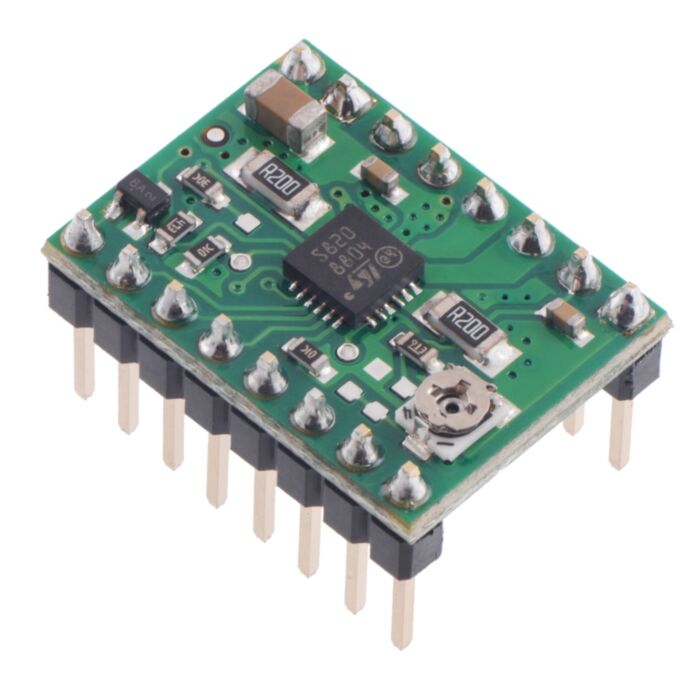

This version of Pololu's STSPIN820 Stepper Motor Driver Carrier ships with male header pins installed as shown in the main product picture, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. Please see the STSPIN820 Stepper Motor Driver Carrier product page for more information about the driver.

Dimensions

Size:	0.6" × 0.8"
Weight:	2.5 g

General specifications

Motor driver:	STSPIN820
Minimum operating voltage:	7 V
Maximum operating voltage:	45 V
Continuous current per phase:	0.9 A
Maximum current per phase:	1.5 A
Minimum logic voltage:	2 V
Maximum logic voltage:	5.5 V
Microstep resolutions:	full, 1/2, 1/4, 1/8, 1/16, 1/32, 1/128, 1/256
Current limit control:	potentiometer
Reverse voltage protection?:	N
Header pins soldered?:	Y

Identifying markings

PCB dev codes:	md37a
Other PCB markings:	0J11739

File downloads

STSPIN820 datasheet (594k pdf)
Schematic diagram of the STSPIN820 Stepper Motor Driver Carrier (109k pdf)
Dimension diagram of the STSPIN820 Stepper Motor Driver Carrier (186k pdf)
3D model of the STSPIN820 Stepper Motor Driver Carrier (5MB step)
Drill guide for the STSPIN820 Stepper Motor Driver Carrier (38k dxf)

This DXF drawing shows the locations of all of the board’s holes.
