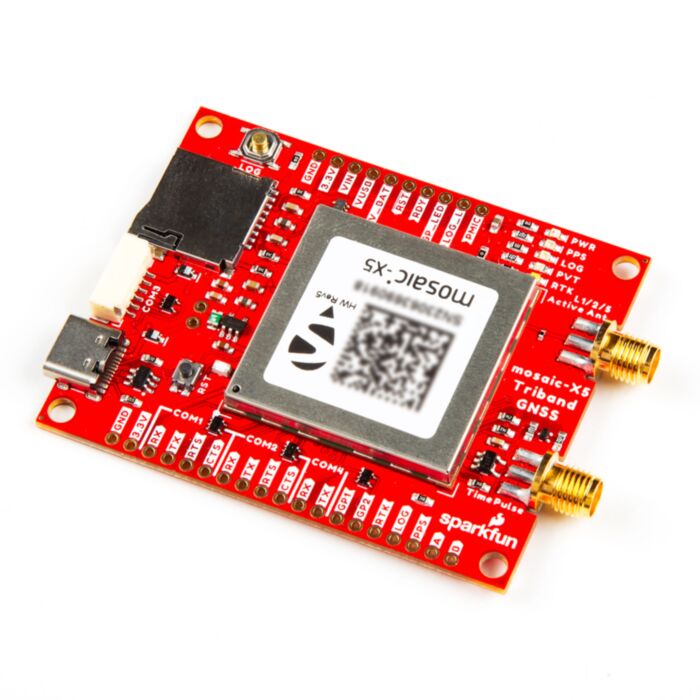

SparkFun Triband GNSS RTK Breakout - mosaic-X5

SKU: GPS-23088 Brand: Sparkfun

The SparkFun mosaic-X5 Triband GNSS RTK Breakout you'll be provided with the easiest way to get started using L1, L2, and L5 GPS bands simultaneously!...

$1,229.95 AUD, inc GST

$1,118.14 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 31 and Jan 03

Quantity Discounts:

3-5 $1084.59 (exc GST)
5+ $1062.23 (exc GST)

We see new iterations with GNSS with each passing year, and with the SparkFun mosaic-X5 Triband GNSS RTK Breakout, you'll be provided with the easiest way to start using L1, L2, and L5 bands simultaneously! At the heart of the Triband GNSS RTK Breakout is Septentrio's most compact high-precision GNSS receiver, the mosaic-X5. The mosaic-X5 module is an ultra-low power, multi-band, multi-constellation GNSS receiver capable of delivering centimeter-level precision at high update rates. The receiver supports the GPS (USA), GLONASS (Russia), Beidou (China), Galileo (Europe), and NavIC (India) constellations, including regional systems (i.e. SBAS and QZSS). It also features Septentrio's unique AIM+ technology for interference mitigation and anti-spoofing, ensuring best-in-class reliability and scalable position accuracy.

With its Real Time Kinematics (RTK) capabilities, the mosaic-X5 module can operate as a base station to broadcast RTK correction data or as a rover utilizing RTK correction data to record positions with extreme precision. The module can achieve a horizontal accuracy of 6mm (~0.25in), vertical accuracy of 1cm (~0.4in) using RTK, and timing precision of 5ns (5 billionths of a second). The mosaic-X5 is compatible with RTK correction data from various 3rd-party services. The mosaic-X5 can also deliver position updates at 100Hz (100 times per second) for automotive and industrial applications.

The mosaic-X5 is a sophisticated chip running an internal web server that can be accessed through the USB interface with a standard browser using a Linux/Windows computer. Septentrio also provides dozens of video tutorials to guide users through the configuration settings of their GNSS receivers utilizing the web interface. In addition to the module's web interface, Septentrio provides software packages where users can post-process recorded data, configure the mosaic-X5 module, and analyze the receiver's performance or the GNSS signals for interference/spoofing. If these interface options weren't enough, Septentrio's GNSS modules are compatible with other 3rd-party software packages.

Beyond the capabilities of the mosaic-X5 module, this board is seamless to operate with no programming skills required. Gone are the times when a microcontroller was required to interface with the GNSS receiver and log data to an SD card and when users had to carry around an SD card reader to extract the data from the SD card. The mosaic-X5 Triband GNSS RTK Breakout can start/stop logging data at the push of a button. The same button can also mount and unmount the SD card to your computer through the USB interface. Users can control/configure the module, log data, etc., all without a single line of code. For the users who prefer a command-line interface, Septentrio has you covered. Users can still control and configure the mosaic-X5 module through a CLI, which is useful for scenarios such as production line testing (in fact, that is how Sparkfun tested this board).

This breakout board is a perfect middle ground for users who would like to integrate the mosaic-X5 module into a project/enclosure with access to a majority of the module's available pins, similar to Septentrio's developer kit, but in the smaller form factor of the evaluation kit. Or maybe... you just needed a PPS output at a 3.3V logic level. Please, check out the features tab and our hookup guide for more details on the capabilities of this board (that Sparkfun couldn't fit in this product description).

Note: With the multi-band capabilites of the mosaic-X5 module, Sparkfun highly recommend that users pair the module with a suitable GNSS antenna that can support all the GNSS frequency bands the module is compatible with.

We recommend the GNSS Multi-Band L1/L2/L5 Surveying Antenna - TNC (SPK6618H) from our catalog.

Features

Triband GNSS RTK Breakout:

mosaic-X5 GNSS Receiver
USB-C Connector
µSD Card Slot (up to 32GB w/ FAT32 file system)
SMA Connectors:
- GPS Antenna (Active, Multi-band)
- PPS Output (3.3V)
Status LEDs
- Power (Red)
- Pulse-Per-Second (Yellow)
- Data Logging (Green)
- Position/Velocity/Time Solution (Blue)
- RTK Mode (White)
Buttons
- Log
- Reset
I/O Logic-Level: 3.3V
6-pin JST GH connector (GHR-06V-S)
- Polarized
- Locking
ESD Protection Diodes

mosaic-X5 Module:

Voltage Range: 3.135 to 3.465V
- Max current: 500mA
RTK Accuracy
- Horizontal: 0.6cm (±0.5ppm)
- Vertical: 1cm (±1ppm)
GNSS Support
- GPS: L1C/A, L1PY, L2C, L2P, L5
- GLONASS: L1CA, L2CA, L2P, L3 CDMA
- Beidou: B1I, B1C, B2a, B2b, B2I, B3
- Galileo: E1, E5a, E5b, E5 AltBoc, E6
- QZSS: L1C/A, L1 C/B, L2C, L5
- NavIC: L5
- SBAS: Egnos, WA
Time to Fix
- Cold Start: < 45s
- Warm: < 20s
- Reacquisition: 1s
Timing Precision: 5ns
Update Rate: 100Hz
Latency: < 10ms
VANT Voltage Range: 3.0 to 5.0V
- Max current: 150mA
Interfaces:
- UART (x4)
- Ethernet (Not available for this product)
- USB 2.0
- SD Card
- GPIO/LEDs

Documents

Schematic
Eagle Files
Board Dimensions
Software: RxTools
Correction Service: Agnostic Corrections
Component Datasheets:
Septentrio Page
mosaic-X5 Modules
Building a GNSS System
