Sealed Tri-Color USB Controlled Hemisphere Alarm Light

SKU: ADA5127 Brand: Adafruit

With this Sealed Tri-Color USB Controlled Hemisphere Alarm Light, you can easily monitor and alert humanoids as to the status of a project, machine,...

$204.95 AUD, inc GST

$186.32 AUD, exc GST

Available with a lead time
Expect dispatch between May 17 and May 20

Quantity Discounts:

5-10 $178.86 (exc GST)
10+ $173.27 (exc GST)

Description

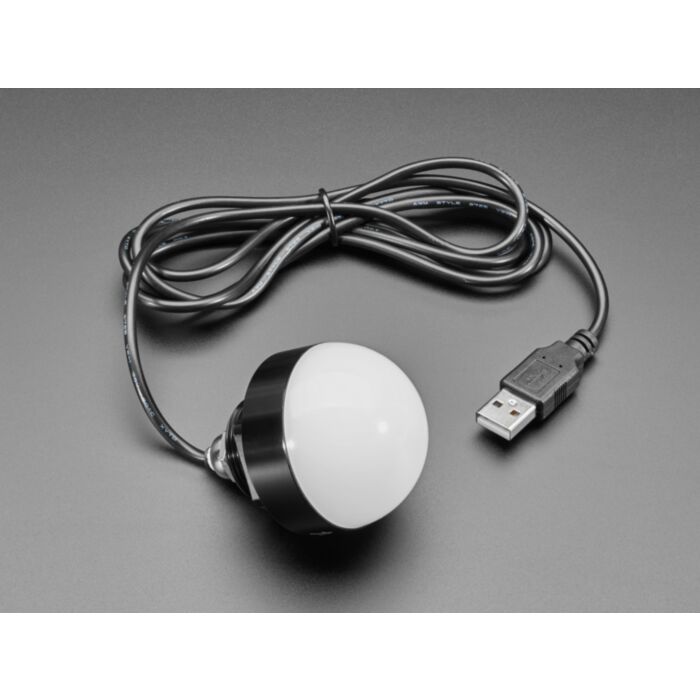

With this Sealed Tri-Color USB Controlled Hemisphere Alarm Light, you can easily monitor and alert humanoids as to the status of a project, machine, or even if the bathroom is occupied!

It's a lot like Adafruit's other alarm light but this one doesn't come with a buzzer and in 'exchange' it has a sealed body which means it can be used in places with more dust and moisture. It doesn't have an official IP rating, but we think it's probably something like an IP65 (not including the USB connector which is not rated).

Unlike our "12V" style tower lights, no wiring or microcontroller programming is required. It's completely plug-and-play for use with any computer that has a USB port, even a Raspberry Pi SBC - so they recommend it when you just want to get something running and don't want to noodle around with 12V power plugs and transistors.

The alarm light is powered and controlled over USB, so just plug it right in. Inside is a microcontroller connected over a CH43x USB-to-UART chip, so you'll need to install a CH43x driver for the COM/Serial port to show up.

Once the serial port is created, connect to it over 9600 baud and send command codes to turn on and off the LEDs. There's also a blink command, so you don't have to continuously turn on/off the LED to have a pulsing/blinking effect. See below for an example Python script that will toggle everything on/off to test.

Technical Details

Hemisphere diameter: 50mm

Python code example to control the lamp over USB:

"""Example for Adafruit USB tower light w/alarmdon't forge to `pip install pyserial` or `pip3 install pyserial`"""import serialimport timeserialPort = 'COM57'  # Change to the serial/COM port of the tower light#serialPort = '/dev/USBserial0'  # on mac/linux, it will be a /dev pathbaudRate = 9600RED_ON = 0x11RED_OFF = 0x21RED_BLINK = 0x41YELLOW_ON= 0x12YELLOW_OFF = 0x22YELLOW_BLINK = 0x42GREEN_ON = 0x14GREEN_OFF = 0x24GREEN_BLINK = 0x44def sendCommand(serialport, cmd):    serialport.write(bytes([cmd]))if __name__ == '__main__':    mSerial = serial.Serial(serialPort, baudRate)    # Clean up any old state    sendCommand(mSerial, RED_OFF)    sendCommand(mSerial, YELLOW_OFF)    sendCommand(mSerial, GREEN_OFF)    # turn on each LED set in order    sendCommand(mSerial, RED_ON)    time.sleep(0.5)    sendCommand(mSerial, RED_OFF)    sendCommand(mSerial, YELLOW_ON)    time.sleep(0.5)    sendCommand(mSerial, YELLOW_OFF)    sendCommand(mSerial, GREEN_ON)    time.sleep(0.5)    sendCommand(mSerial, GREEN_OFF)    # Use the built-in blink modes    sendCommand(mSerial, RED_BLINK)    time.sleep(3)    sendCommand(mSerial, RED_OFF)    sendCommand(mSerial, YELLOW_BLINK)    time.sleep(3)    sendCommand(mSerial, YELLOW_OFF)    sendCommand(mSerial, GREEN_BLINK)    time.sleep(3)    sendCommand(mSerial, GREEN_OFF)    # Please be kind, re-wind!    sendCommand(mSerial, RED_OFF)    sendCommand(mSerial, YELLOW_OFF)    sendCommand(mSerial, GREEN_OFF)    mSerial.close()
