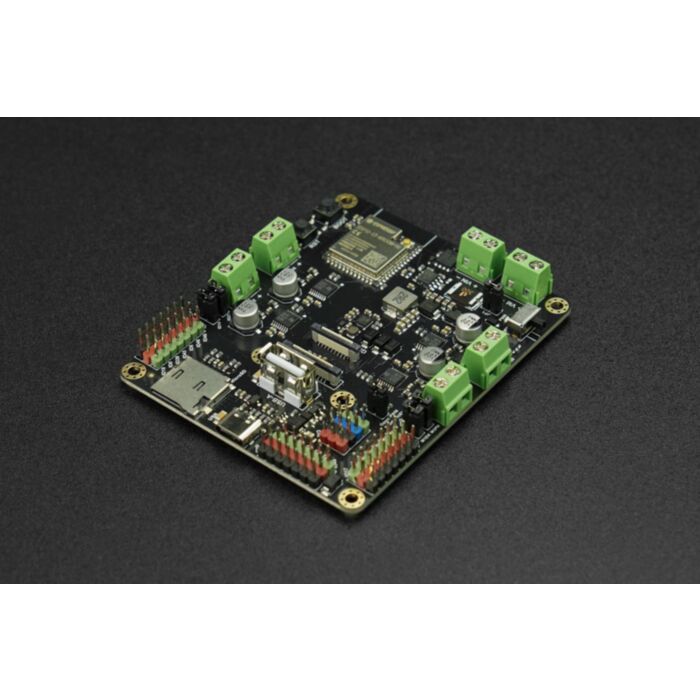

Romeo ESP32-S3 Development Board for Robotics FPV RC Car

SKU: DFR0994 Brand: DFRobot

Equipped with ESP32-S3-WROOM-1U-N16R8 module and camera, the Romeo ESP32-S3 development board is perfect for customize robotics like intelligent obstacle...

$82.70 AUD, inc GST

$75.18 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 02 and Jan 06

Quantity Discounts:

6-12 $72.93 (exc GST)
12+ $71.42 (exc GST)

Romeo ESP32-S3 is a high-performance development board specifically designed for robotics projects.It utilizes the ESP32-S3 microcontroller and is equipped with an onboard camera that enables video transmission and wireless remote control, providing users with a first-person view (FPV) experience. The board supports the development of both 2WD and 4WD robots and offers a wide range of data interfaces to facilitate the expansion of intelligent robots. Additionally, it supports multiple programming languages and development environments, simplifying the process of robot development.

Experience the Robot's First-Person View

The Romeo ESP32-S3 is equipped with an OV2640 camera. By using the video transmission function on a computer or smartphone, users can view the robot's world from a first-person perspective, immersing themselves in its exploration. After training the robot, it can also perform AI recognition tasks. The OV2640 camera boasts a 2-megapixel resolution, supporting a maximum resolution of 1600*1200. Whether capturing images or recording videos, it can deliver clear visuals.

Romeo ESP32-S3 Robot's First-Person View (FPV)

Unleash the Power of ESP32-S3 for Advanced Capabilities

The Romeo ESP32-S3 incorporates the ESP32-S3-WROOM-1U-N16R8 module, which boasts a built-in 16MB Flash and 8MB PSRAM. Its spacious storage capacity accommodates a greater volume of complex code and data. With a blazing main frequency of up to 240MHz, the ESP32-S3 chip is equipped with vector instructions that accelerate tasks like neural network computations and signal processing, enabling AI functionalities such as image and speech recognition. Supporting dual-mode communication of 2.4GHz Wi-Fi and Bluetooth 5 (LE), the ESP32-S3 facilitates wireless remote control and image transmission.

ESP32-S3-WROOM-1U-N16R8 module Features

Versatile Interface Expansion for Robots

Romeo ESP32-S3 offers a multitude of reserved data interfaces, allowing for the integration of various devices to empower the robot with limitless potential. For instance, by connecting a microphone, the robot gains auditory capabilities, enabling voice-controlled interactions. By connecting an amplifier, the robot can express itself. Integration of a gas sensor grants the robot a sense of smell. Moreover, Romeo ESP32-S3 provides a stable 5V power supply, facilitating the connection of multiple servos to realize functionalities like a robotic arm.

Interfaces of Romeo ESP32-S3 Development Board

Support Multiple Development Environments

Romeo ESP32-S3 supports various programming environments, including Arduino IDE and ESP-IDF. It also accommodates popular programming languages like C++ and MicroPython, allowing developers to effortlessly manipulate the hardware using familiar programming languages.

Support Multiple Development Environments

Features

A four-channel 2.5A high-current H-bridge motor driver
Supporting both PH/EN control mode and PWM control mode
Multiple 5V power outputs, facilitating servo motor control
An autonomous camera power circuit
On-board GDI display, DVP camera, USB, and MicroSD card interfaces
Featuring the on-board ESP32-S3-1U-N16R8 (16MB FLASH / 8MB PSRAM)
Enabling dual-mode communication through Wi-Fi and Bluetooth 5 (LE).

Applications

FPV RC car development
FPV toy aircraft
Simulated flight
Aerospace
Robot competitions

Specification

Basic Parameters

Type-C Input Voltage: 5V
Operating Voltage: 3.3V
VIN Input Voltage: 7-24V
VM Input Voltage: 5-24V
Maximum Output Current of 5V Power Supply: 2A
Motor Drive Capacity: 2.5A
Operating Temperature: 0°C to 60°C
Dimension: 25.4x60mm/2.95x3.54"

Hardware Information

Processor: Xtensa® dual-core 32-bit LX7 microprocessor
Main Frequency: 240 MHz
SRAM: 512KB
ROM: 384KB
Flash: 16MB
PSRAM: 8MB
RTC SRAM: 16KB
USB: USB 2.0 OTG full-speed

WIFI

WIFI Protocol: IEEE 802.11b/g/n
Bandwidth: Support 20 MHz and 40 MHz at 2.4 GHz band
WIFI Mode: Station, SoftAP, SoftAP+Station combined mode
WIFI Frequency: 2.4GHz
Frame Aggregation: TX/RX A-MPDU, TX/RX A-MSDU

Bluetooth

Bluetooth Protocol: Bluetooth 5, Bluetooth mesh
Bluetooth Frequency: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

Ports

Digital I/O x27
LED PWM Controller 8 Channels
SPI x4
UART x3
I2C x2
I2S x2
IR Transceiver: transmit channel x5, receive channel x5
2×12-bit SAR ADC, 20 Channels
DMA Controller: transmit channel x5, receive channel x5

Documents

Parts List

Romeo ESP32-S3 Development Board x1
