Wifi Bee ESP8266

Add to Wish List

Skip to the beginning of the images gallery

Wifi Bee ESP8266

SKU: TEL0092 Brand: Espressif ESP32 & ESP8266 Guides (1)

$11.15 AUD, inc GST

$10.14 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 30 and May 06

Quantity Discounts:

10-25 $9.84 (exc GST)
25+ $9.63 (exc GST)

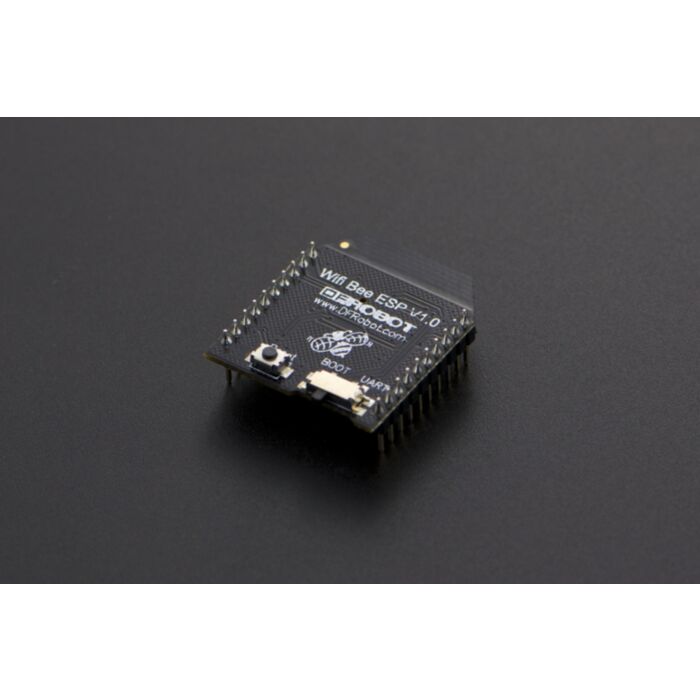

Wifi Bee-ESP8266 is a Serial-to-WIFI module using XBEE design in a compact size, compatible with XBEE slot, applicable to a variety of 3.3V single-chip system. It can be used for Arduino, wireless data transfer, remote control. On-board switch can be used to easily select the Startup module or Upgrade firmware.
ESP8266 arduino module has a powerful on-chip processing and storage capacity, built-in 32-bit processor, built-in Lwip protocol stack. Support AP+STA mode co-exist. And you could configure various parameters via AT commands.

Note: Since the STA mode which support the Server mode is not stable, we are working on that you could refer to the ESP8266 manual book to try.

Note: In order to configure this module, you will need an adapter or Xbee shield that lets you communicate with the module, before you can plug it and use on other modules. Compatible device: Xbee USB adapter (FTDI)

ESP8266 Tutorials:

ESP8266 micropython- Tutorial 1: Introduction

ESP8266 micropython- Tutorial 2: Micropython GPIO

ESP8266 micropython - Tutorial 3: Micropython Timer I2C

ESP8266 Micropython - Tutorial 4: How To Interrupt Micropython

ESP8266 Micropython -Tutorial 5: Micropython UDP

ESP8266 WiFi Bee: Connecting to an Access Point with AT commands

ESP8266 Tutorial: MicroPython Support

ESP8266 MicroPython Tutorial: Simple variables

ESP8266 WiFi Bee: Setting an Access Point with AT commands

ESP32 / ESP8266 MicroPython Tutorial: Running scripts from a computer

ESP32 / ESP8266 MicroPython Tutorial: HTTP GET Requests

ESP32 / ESP8266 MicroPython Tutorial: Automatic connection to WiFi

ESP32 / ESP8266 MicroPython Tutorial: Working with lists

ESP32 / ESP8266 MicroPython Tutorial: Lambda functions

ESP32 / ESP8266 MicroPython Tutorial: Applying map function to lists

ESP32 / ESP8266 MicroPython Tutorial: String split method

ESP32 / ESP8266 MicroPython Tutorial: Applying filter function to lists

ESP32 / ESP8266 MicroPython Tutorial: Working with dictionaries

ESP32 / ESP8266 Arduino: Bitwise shift operators

ESP32 / ESP8266 Tutorial: Class constructors

ESP32 / ESP8266 Arduino Tutorial: Initializer list

ESP8266 Arduino: Asynchronous HTTP web server

ESP32 / ESP8266 Arduino: The typedef keyword

ESP32 / ESP8266 Arduino Tutorial: Using structs

ESP32 / ESP8266 MicroPython Tutorial: Writing a file

ESP32 / ESP8266 Arduino: The auto keyword

ESP32 / ESP8266 MicroPython Tutorial: Reading a file

ESP32 / ESP8366 Arduino: Creating a simple class

ESP8266 Tutorial: Adding Swagger UI to REST API

Specification

Wi-Fi Direct (P2P),soft-AP
Built-in TCP/IP protocol stack
Built-in low-power 32-bit CPU: can work as an application processor
Support WPA WPA2/WPA2-PSK encryption
Support UART interface
Support for TTL serial port to wireless application
Working voltage: 3.3V power <240Ma
Wireless standard: IEEE802.11b/g/n
Frequency: 2.4 GHz

Projects

Project 1. How to make a Heart Rate Monitor
This project makes a Heart Beat Detection and Monitoring System using Arduino that will detect the heart beat using the Pulse Sensor and will show the readings in BPM (Beats Per Minute).
Hardware needs:

Project 2. ESP8266 Project: Desktop Weather Station With WIFI

Hardware needs:

Project 3. Build An Automatic Plant Watering System with ESP8266

Hardware needs:

Project 4. ESP8266 Arduino Programming Tutorial - DFRobot.com

Hardware needs:
DFRduino UNO R3
Xbee USB adapter (FTDI ready)
IO Expansion Shield for Arduino (V6)
USB Cable A-B for Arduino
Mini USB cable

Documents

Parts List

Wifi Bee-ESP8266 x1

This product is listed in:

Wireless>Wifi>Modules
Wireless>Wifi
