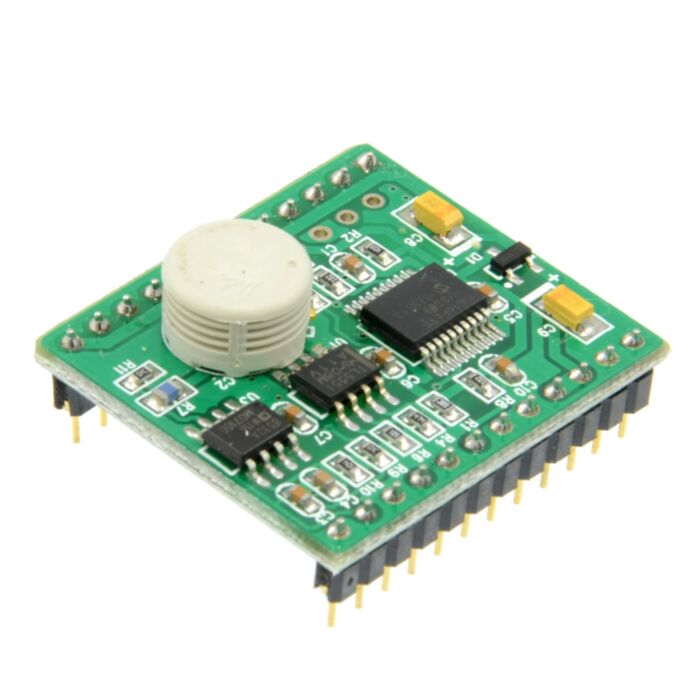

Temperature and Relative Humidity Sensor Module (DC-SS500)

SKU: 017-MB-SM17112

$16.67 AUD, inc GST

More Views

Temperature and Relative Humidity Sensor Module (DC-SS500)

SKU: 017-MB-SM17112

$16.67 AUD, inc GST
1 reviews 0 5 5

Retired Product

Replaced by:
This product has been retired and kept here for reference.

A great PIC16F690-HS1101-based humidity and temperature module that can be used in many applications to measure temperature and relative humidity.

Specifications:



 Humidity characteristics

Min.

Typ.

Max.

Unit.

Humidity measuring range

1



99

%RH

Humidity accuracy (10 to 95 % RH)



±5

±10

%RH

Temperature coefficient (0 to 60 °C )



-0.2



%RH/℃

Humidity hysterics



±2



% RH

Long term stability



±1



% RH/yr

Response time (33 to 76 % RH, still air @ 63%)



6



s

Deviation to typical response curve (10% to 90% RH)



±2



%RH

Recovery time after 150 hours of condensation



10



s



 Temperature Characteristics

Min.

Typ.

Max.

Unit.

Temperature measuring range

-15



60

Temperature accuracy



±2

±5

Response time



10



s



 Interface Characteristics

Min.

Typ.

Max.

Units

Input low voltage

——

——

0.2Vin

V

Input high voltage

0.8Vin

——

——

V

Output low voltage

——

——

0.6

V

Output high voltage

Vin – 0.9

——

——

V


Features:

  • Size: 30(L) X 29 (W) ± 0.2mm
  • Processing chip: PIC16F690
  • Humidity measuring chip: HS1101
  • Wide range relative humidity measuring
  • Fast response time
  • analog & digital output
  • Analog: relative humidity & temperature voltage signal linear output
  • Digital: UART half duplex, SPI slave mode
  • DIP-like packaging, which facilitates system integration
  • DC 5V or 3.3V power
  • Pins are plated with 3μm thick gold which can effectively prevent abrasion and corrosion.

Applications:

  • Humidity & temperature measuring in industrial production
  • Warehouse environment surveillance
  • Humidity & temperature measuring in vegetable greenhouse
  • Household Applications
  • Books and archives storage in library
  • Precise data logging
  • Transmitters
  • Automation & process control
  • Building control and HVAC
  • Test & Measurement
  • Medical

Downloads:

This product is listed in:

Documentation and Resources:

Product Comments

Documentation and Resources:

Customer Reviews

  1. Review by Philip - Temperature and Humidity measurement made easy. verified purchaser
    Rating
    100

    Another cool little product. Like the air pressure sensor module also made by Sure Electronics, it makes measuring temperature and humidity easy with just a simple serial command. (Posted on 7/02/2014)
