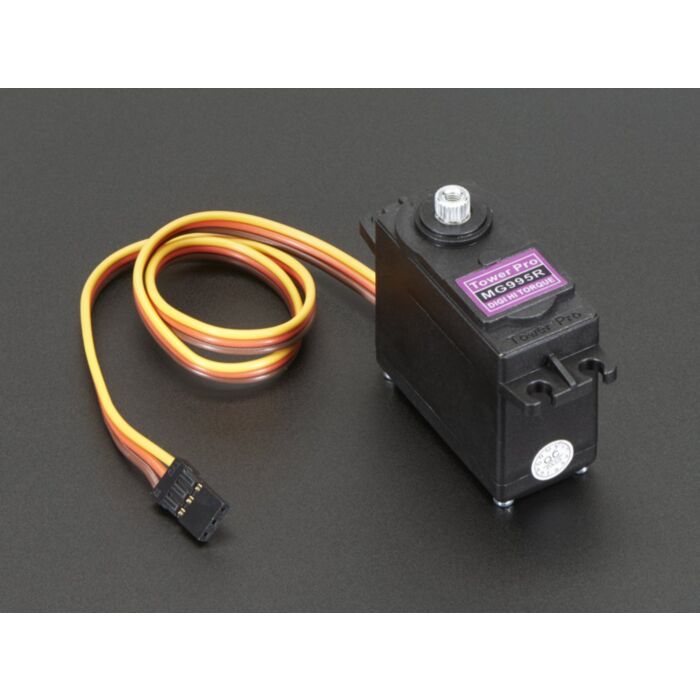

Standard Size - High Torque - Metal Gear Servo

SKU: ADA1142 Brand: Adafruit

This high-torque standard servo now comes in a metal-gear flavor, for extra-high torque (10 kg*cm!) and reliability! It can rotate at least 120 degrees (60 in each...

$46.30 AUD, inc GST

$42.09 AUD, exc GST

Available with a lead time
Expect dispatch between May 02 and May 06

Quantity Discounts:

10-25 $40.41 (exc GST)
25+ $39.15 (exc GST)

This high-torque standard servo now comes in a metal-gear flavor, for extra-high torque (10 kg*cm!) and reliability! It can rotate at least 120 degrees (60 in each direction) with a classic 1.5-2.5ms pulse, but if you can extend your pulses it can go up to about 170 degrees - it varies a bit servo-to-servo. You can use any servo code, hardware or library to control these servos. Good for beginners who want to make stuff move without building a motor controller with feedback & gear box. Comes with a bunch of plastic horns, as shown. Adafruit now carry the Tower-Pro MG-995, they are very nice, high quality servos, excellent for use in robotics.

To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE (see here for an example sketch). Position "0" (1.5ms pulse) is middle, "90" (~2ms pulse) is all the way to the right, "-90" (~1ms pulse) is all the way to the left.

Technical Details

Details:

Power: 4.8V - 6V DC max (5V works well)
Average Speed: 60 degrees in 0.20 sec (@ 4.8V), 60 degrees in 0.16 sec (@ 6.0V)
Weight: 62.41g
Torque: At 4.8V: 8.5 kg-cm / 120 oz-in, and at 6V: 10 kg-cm / 140 oz-in.
Size mm: (L x W x H) 40.7 x 19.7 x 42.9
Spline Count: 25
