Introduction

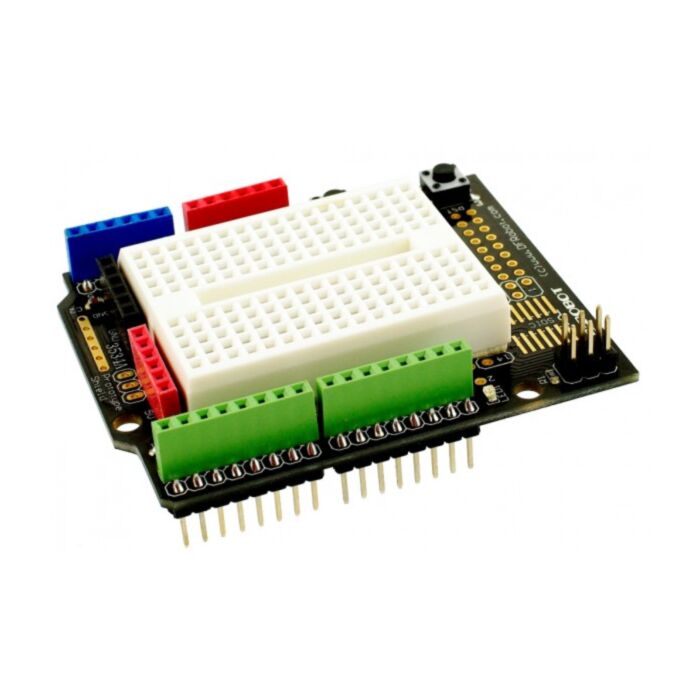

This is a design for an open-source prototyping shield for Arduino NG/Diecimila. It has tons of cool features, to make prototyping on your Arduino easy. Shipped with fully assembled.

Features

  • Reset button up top
  • ICSP header
  • Lots of GND and +5V rails
  • DIP prototyping area makes it easy to add more chips
  • SOIC prototyping area above USB jack for up to 14-pin SOIC chip, narrow medium or wide package.
  • A 'mini' breadboard included
  • Extra 6mm button

Documents

Compatibility

  • Arduino NG (Compatible)
  • Arduino Diecimila (Compatible)
  • Arduino Duemilanove (Compatible)
  • Arduino UNO  (Compatible)
