Proto Screw Shield-Assembled (Arduino Compatible)

SKU: DFR0131

$16.12 AUD, inc GST

More Views

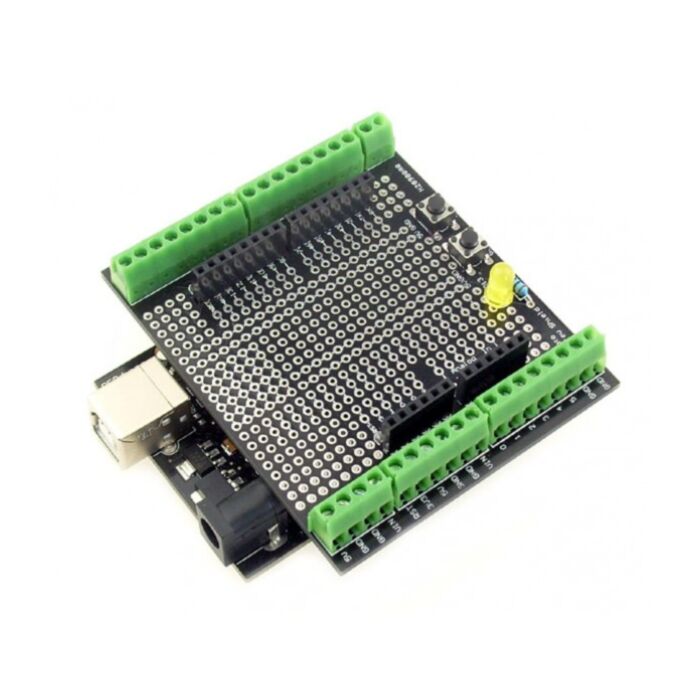

Proto Screw Shield-Assembled (Arduino Compatible)
16.12 AUD

SKU: DFR0131

$16.12 AUD, inc GST
2 reviews 0 5 5
24 units ship in 4 to 6 days (delivered by Mon, 12th of Dec)
Shipping Offer
OR

Introduction

Combines the power of screw shield and prototyping shield. This Proto Screw shield offers a better way to do prototyping.

The Screw terminal can be screwed directly to the terminal on the thread and is reliable and convenient. It can be plugged into the Arduino controller. You can use this shield to save yourself from the bad port connection. Feel secure with this arduino-compatible screw shield.

The prototyping shield provides a fast prototpying area for projects. It features a LED (D13) and two buttons (reset and general).

 In the case that you have a breadboard, the shield do not ship with breadboard.  The best suitable breadboard is Mini Bread Board Self Adhesive.

Documents

Shipping List

  • Proto Screw Shield -Assembled (1 unit)
