Nano I / O Shield For Arduino Nano

Rating:
100% of 100
SKU: DFR0012 Brand: DFRobot
The Arduino Nano I/O Sensor Shield acts as an expansion board for the Arduino Nano and DFRduino Nano microcontrollers. There are several different options for power input.
$16.10 AUD, inc GST
$14.64 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 09 and Apr 15

Quantity Discounts:

  • 10-25 $14.20 (exc GST)
  • 25+ $13.91 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

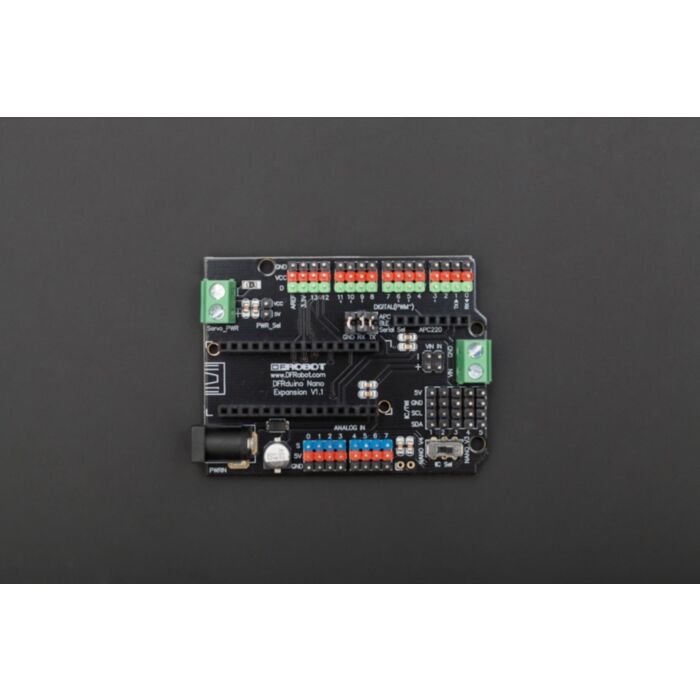

The Arduino Nano I/O  Sensor Shield acts as an expansion board for the Arduino Nano and DFRduino Nano microcontrollers. The form factor of the Nano I/O Shield board is the same as the Arduino UNO/arduino Leonardo. In addition, the sensor shield adopts Gravity interface that each pinout includes 5V and GND pins for easy connection to Gravity sensors or servos. To the best compatibility, the shield supports jumper wires for rapid prototyping.

This unit comes fully assembled. The board also has a space specifically for the DFRobot bluetooth module and ACP220. Several I2C pins are also expanded.

The Nano I/O Shield has several different options for power input. All pins marked 5V are connected to your Arduinos 5V regulator output. Closing a jumper allows you to connect the 5V rail to the pins marked VCC, or they can be powered by an external supply if the jumper is left open, which means you can run servos and sensors with operating voltages above 5V.

If the power selection jumper is incorrectly set you can cause damage to your Arduino.

Arduino nano io sensor shield

V1.1 Update:Add a IIC interface switch, now it is compatible with Arduino Nano, DFRduino Nano V4 and Bluno Nano

Specification

  • Power supply: +5 V
  • Size: 69x54mm (2.7 x 2.1 in)

Documents

Parts List

  • Nano I/O Shield for Arduino Nano    x1

This product is listed in:

Arduino>Shields>Favourites
