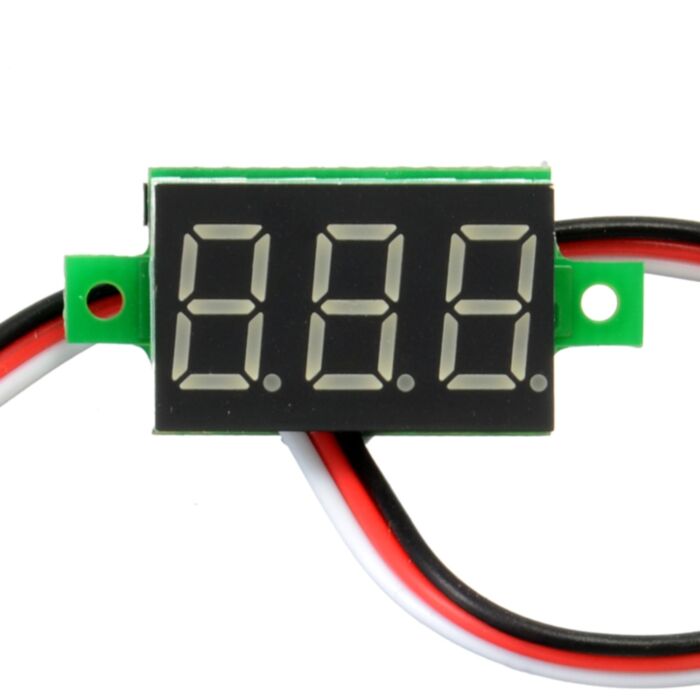

Mini Digital Display DC Voltmeter 0-100V Blue

SKU: 018-05-VM-100V-BL-MINI

$7.19 AUD, inc GST

More Views

Mini Digital Display DC Voltmeter 0-100V Blue
7.19 AUD

SKU: 018-05-VM-100V-BL-MINI

$7.19 AUD, inc GST
2 reviews 0 5 4.5
Ships today (delivered by Mon, 12th of Dec)
Shipping Offer

OR

Very small footprint with 0.36" LED segment displays with a simple 3 wire connection.

Features:

  • Measuring Range: 0-100V DC
  • Error: 1%
  • Display: 0.36" Blue LED Segment Display
  • Refresh Rate: 500mS
  • Power Supply: 3.0-28V
  • Operating Temperature: -10ºC to 65ºC
  • Dimensions: 23x15x10mm (without mounting tabs)
  • Hole Size: 24x15mm
  • Lead Length: 15cm

Wiring Option 1 (0-100V):

  • Red: Supply +ve (3-30VDC)
  • Black: GND (Common to both supply and target)
  • White: Target +ve to measure (0-100VDC)

Wiring Option 2 (3-30V):

  • Red + White (joined): Target circuit +ve (3-30VDC)
  • Black: GND
  • Note that this configuration the target circuit also powers the display!
