Membrane 1x4 Keypad + Extras

SKU: ADA1332

$4.51 AUD, inc GST

More Views

Membrane 1x4 Keypad + Extras
4.51 AUD

SKU: ADA1332

$4.51 AUD, inc GST
1 reviews 0 5 5
Ships today (delivered by Wed, 7th of Dec)
Shipping Offer

OR

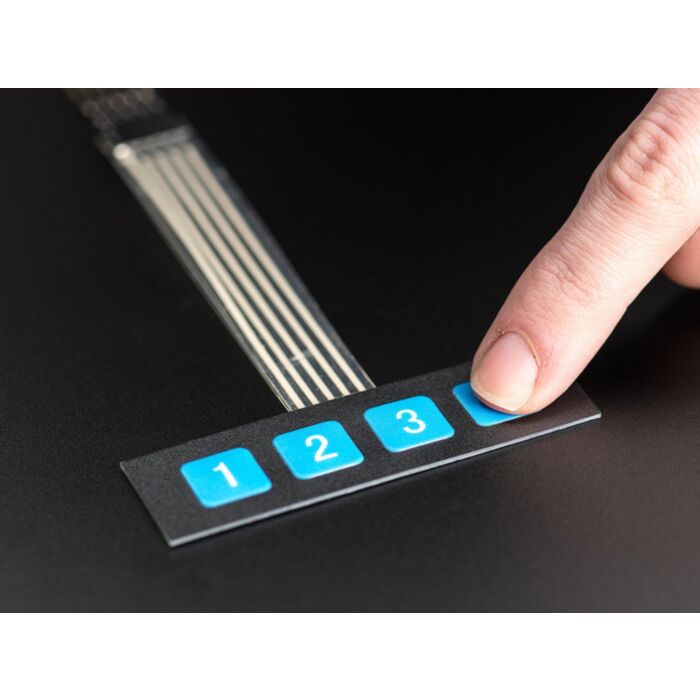

Punch in your secret key into this numeric membrane keypad. This keypad has 4 buttons, and since every key has its own wire line, no matrix code is required - just treat these like every day switches. The membrane is soft and has a removable paper backing to expose a strong adhesive so you can stick this on an enclosure and feed the cable through a slot. Its a simple keypad but that's why Adafruit like it.

Adafruit includes a 5-pin extra-long header strip so you can plug this into a breadboard with ease.

Technical Details

  • Weight: 2.83g
  • Keypad dimensions: 69.14mm / 2.72" x 20.07mm / 0.79"
  • Length of cable + connector: 87.31mm / 3.43" x 14.28mm / 0.56"
  • 5-pin 0.1" pitch connector

This product is listed in:

 >
Documentation and Resources:
  • All About Switches
  • On and Off. It’s the basis for all electronics, from the most sophisticated computer network to a simple circuit. Electronics is all about using one thing, to control another, input and output, on and off. Even the transistors inside modern com...
  • Switches, Debouncing and the Arduino
  • When we boil it down, everyday interactions with electronics are usually limited to controlling stuff with switches. Whether it be turning on the lights, switching on your laptop or turning on the kettle, all examples of how a physical switch works...

Product Comments

Documentation and Resources:
  • All About Switches
  • On and Off. It’s the basis for all electronics, from the most sophisticated computer network to a simple circuit. Electronics is all about using one thing, to control another, input and output, on and off. Even the transistors inside modern com...
  • Switches, Debouncing and the Arduino
  • When we boil it down, everyday interactions with electronics are usually limited to controlling stuff with switches. Whether it be turning on the lights, switching on your laptop or turning on the kettle, all examples of how a physical switch works...

Customer Reviews

  1. Review by Simon - Excellent Product verified purchaser
    Rating
    100

    Works beautifully. Within 5 minutes I had it working on my Freetronics EtherTen module. Great value for money.

    Only issue is there was no pin output information. Figured it out from a picture on the Adafruit website (which also had no information). The pins are from left to right with numbers aligned face up:

    1 - Ground
    2 - Button 2
    3 - Button 1
    4 - Button 4
    5 - Button 3

    Hope that helps. (Posted on 4/07/2014)
